51 47 101 Removing and installing/replacing luggage compartment floor trim panel

Open trunk lid.

Take out luggage compartment floor trim panel (1).

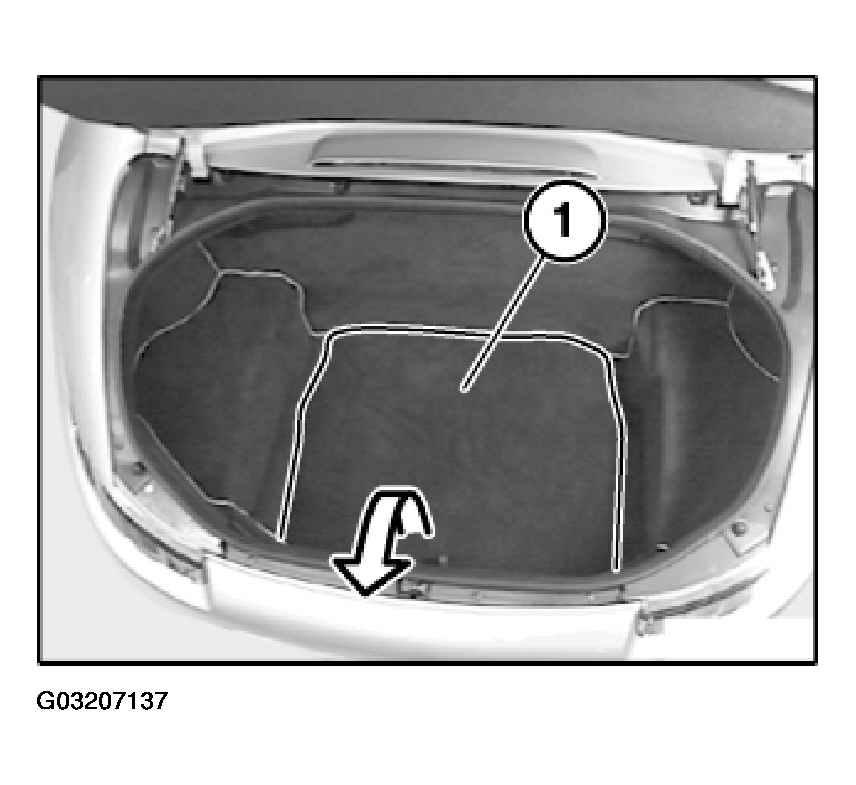

Fig 1: Removing Luggage Compartment Floor Trim Panel
G03207137Courtesy of BMW OF NORTH AMERICA, INC.
