52 16 000 Removing and installing left or right front seat
WARNING:
Observe safety regulations for handling AIRBAG modules and pyrotechnical seatbelt tensioners.
Incorrect handling may trigger the pyrotechnical seatbelt tensioner or side AIRBAG and thereby cause injuries.
Turn off ignition!
Run seat back as far as possible.
NOTE:
In event of faulty drive, refer to 52 16 ... Additional work in event of faulty longitudinal adjustment drive
.

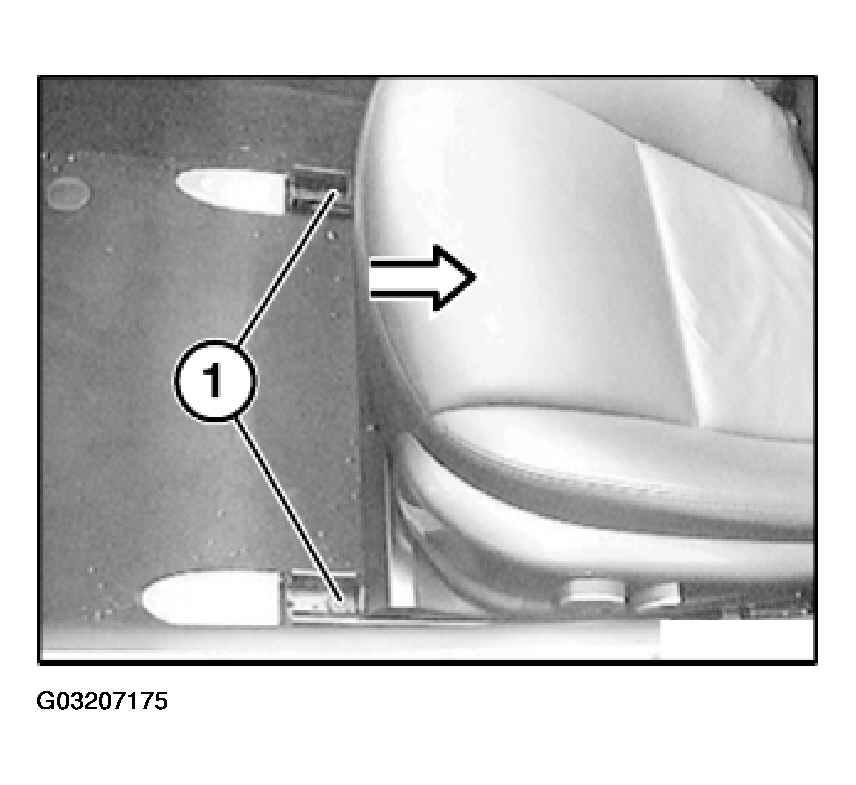

Release screws (1) at front.
Installation:
Tightening torque 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES .

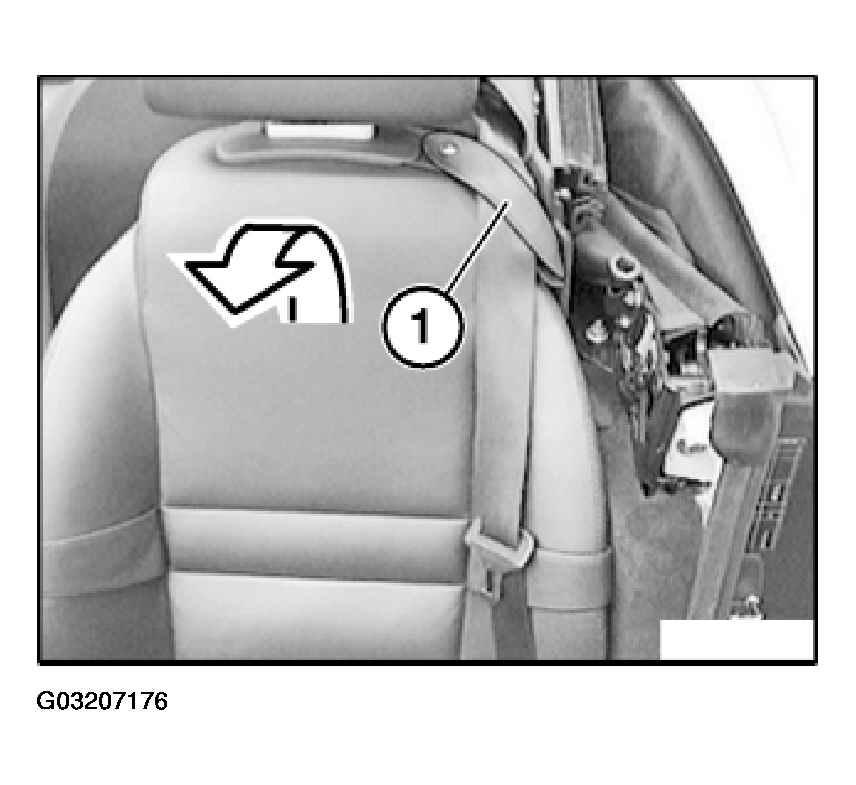

Open belt guide (1).
Tilt backrest forwards.
Run seat as far forward as possible.

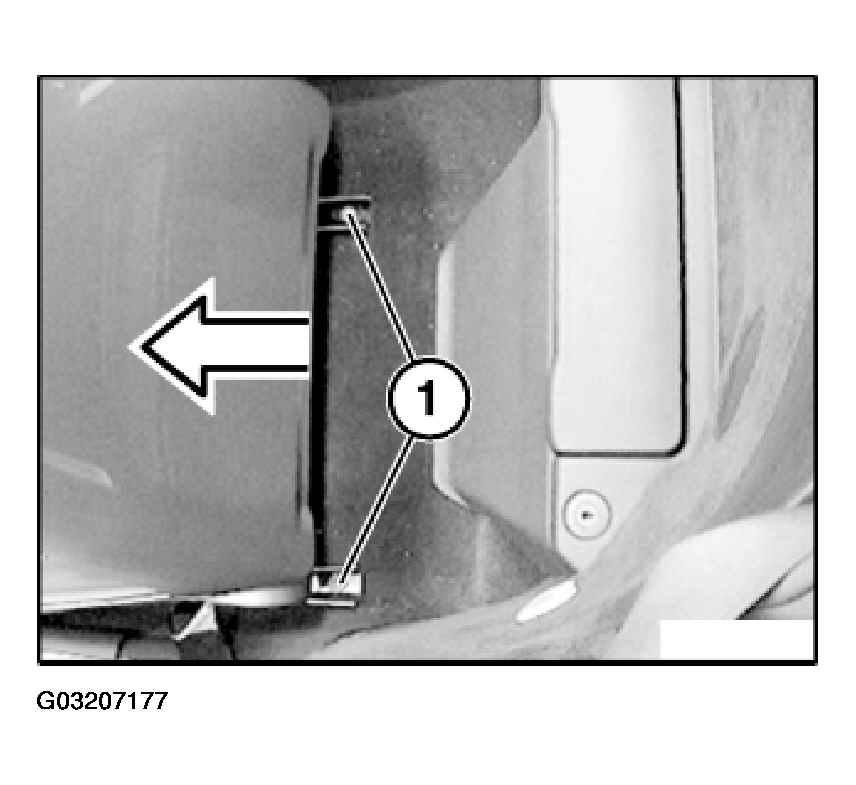

Release screws (1) at rear.
Installation:
Tightening torque 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES .
CAUTION:
Switch off terminal "R" or disconnect battery.
Raise seat at rear.

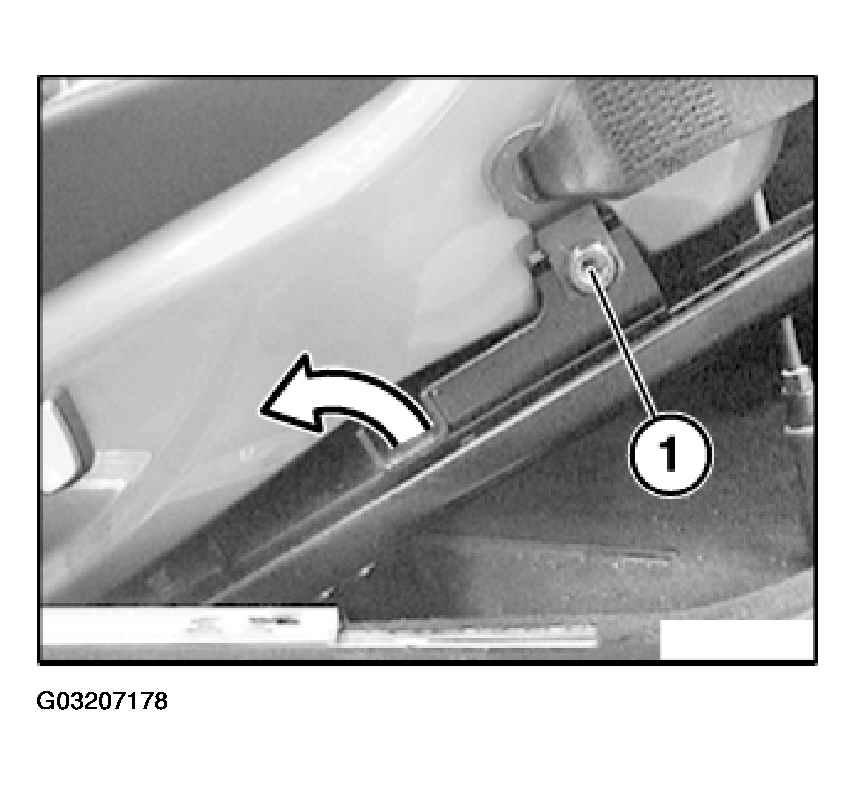

Unfasten seatbelt screw (1)
Installation:
Tightening torque, 48 Nm.

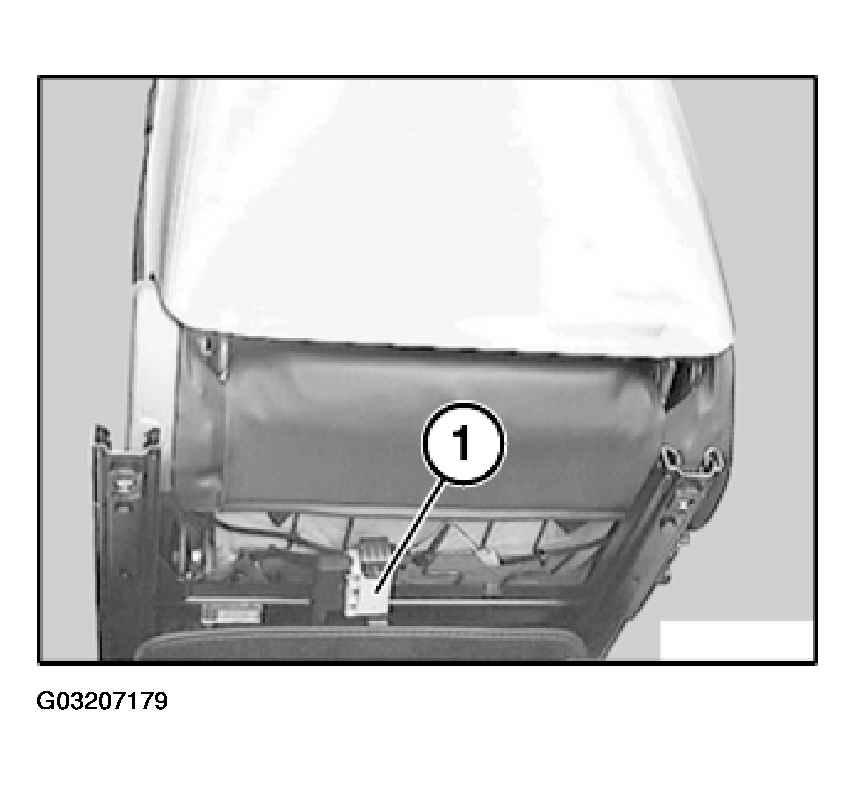

Disconnect plug connection (1) under seat.
Lift out seat.
