11 34 560 Replacing all valve stem seals (M62, S62)

WARNING: This page is about a different variant/trim than selected.

(cylinder head removed)

Preliminary tasks are described in disassembly and assembly of cylinder head, refer to 11 12 503 DISMANTLING AND REASSEMBLING CYLINDER HEAD (M62) .

CAUTION: Do not damage races on bucket tappets. Insert protective film, special tool 11 0 200.

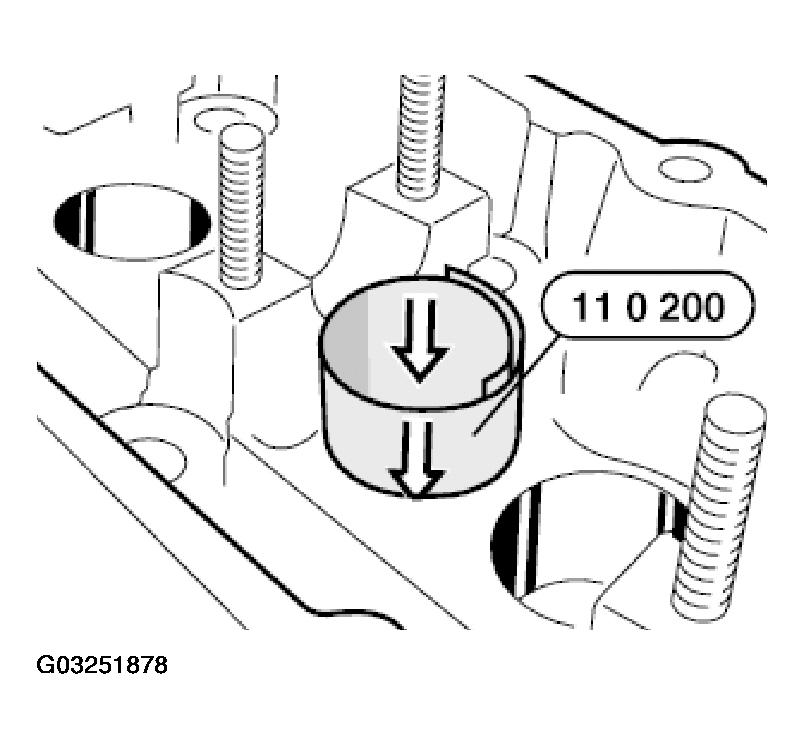

Fig 1: Inserting Protective Film Special Tool 11 0 200

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve stem seal with special tool 11 1 480.

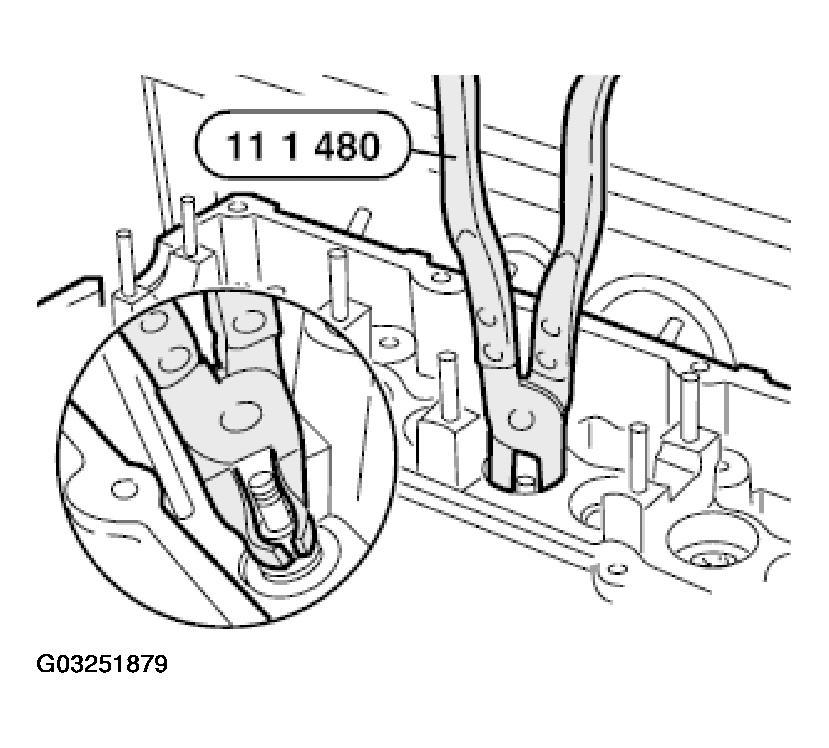

Fig 2: Removing Valve Stem Seal With Special Tool 11 1 480

Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960. Coat new valve stem seal (1) with oil and install.

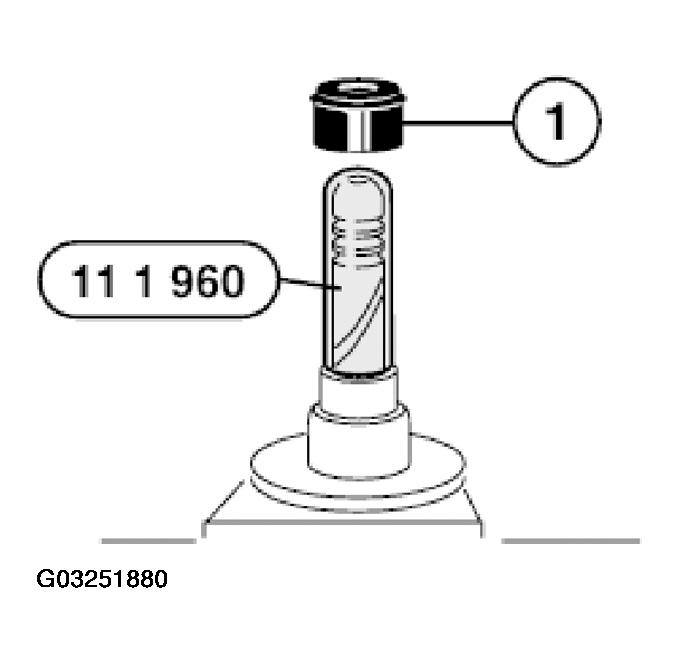

Fig 3: Identifying Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Press-fit valve stem seal firmly home by hand using special tool 11 1 200.

Remove special tool 11 1 960.

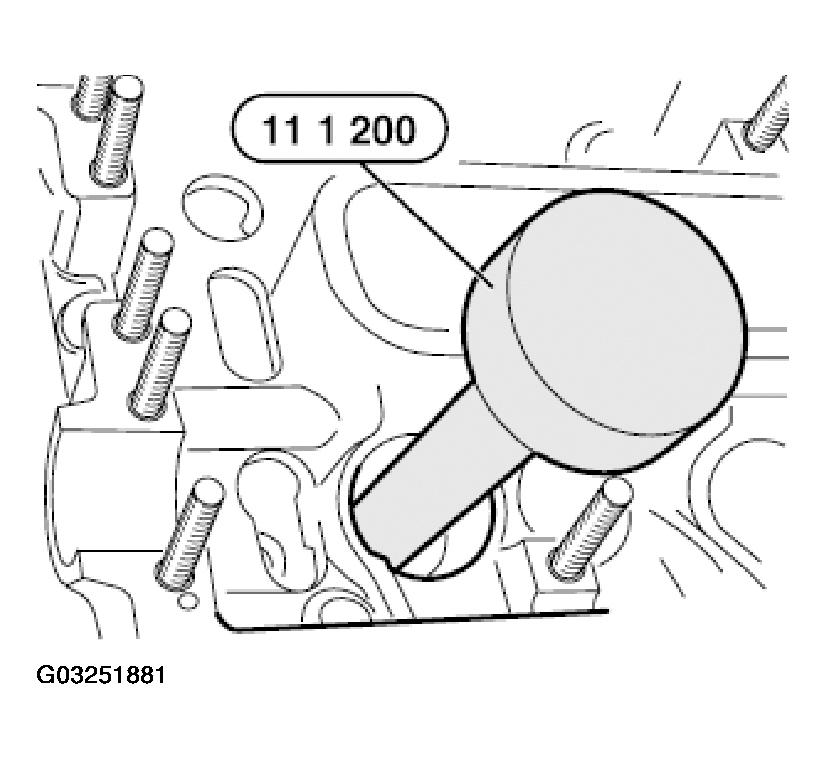

Fig 4: Pressing Valve Stem Seal Using Special Tool 11 1 960

Courtesy of BMW OF NORTH AMERICA, INC.
