11 12 503 Dismantling and reassembling cylinder head (M62)

(cylinder head removed)

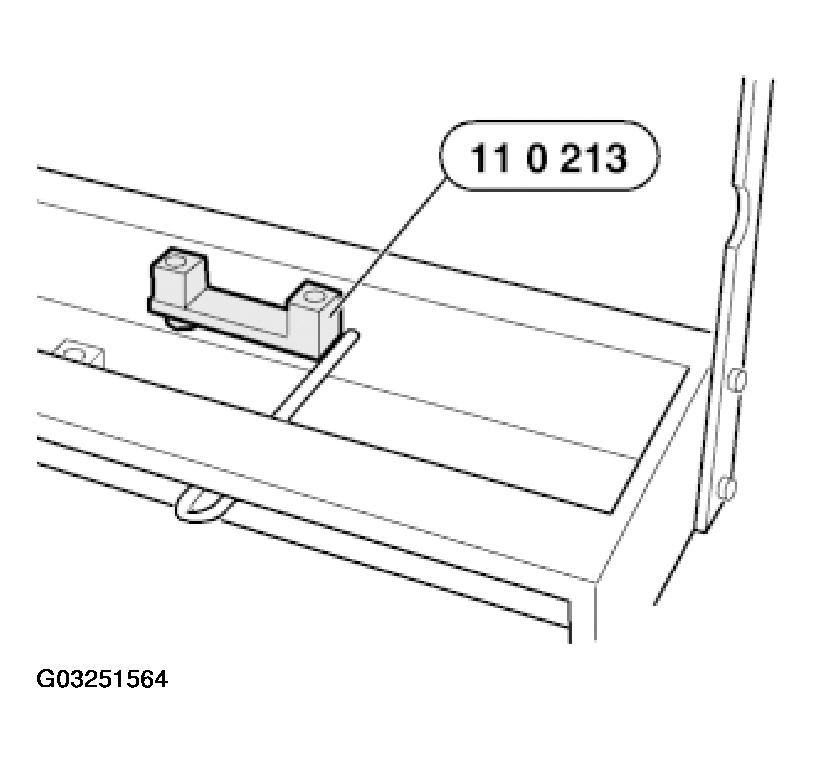

Screw special tool 11 0 213 to special tool 11 1 065.

Fig 1: Identifying Special Tool 11 0 213

Courtesy of BMW OF NORTH AMERICA, INC.

Secure special tool 11 1 065 to special tool 00 1 490.

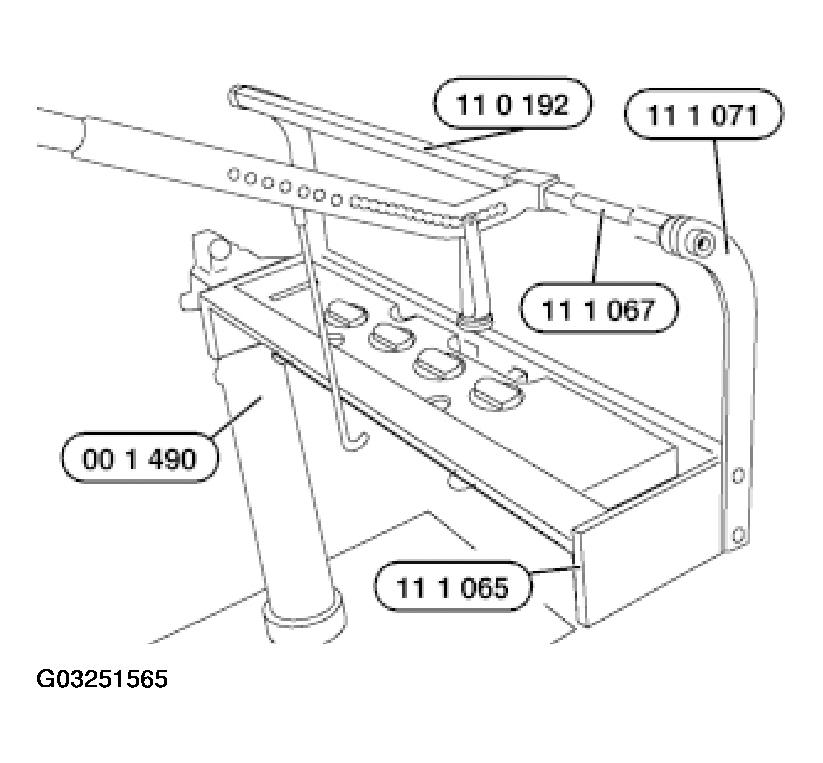

Provide special tools for cylinder head disassembly:

• special tool 11 1 071
• special tool 11 1 067
• special tool 11 0 192
  Fig 2: Identifying Special Tools For Cylinder Head Disassembly (1 Of 2)

  Courtesy of BMW OF NORTH AMERICA, INC.

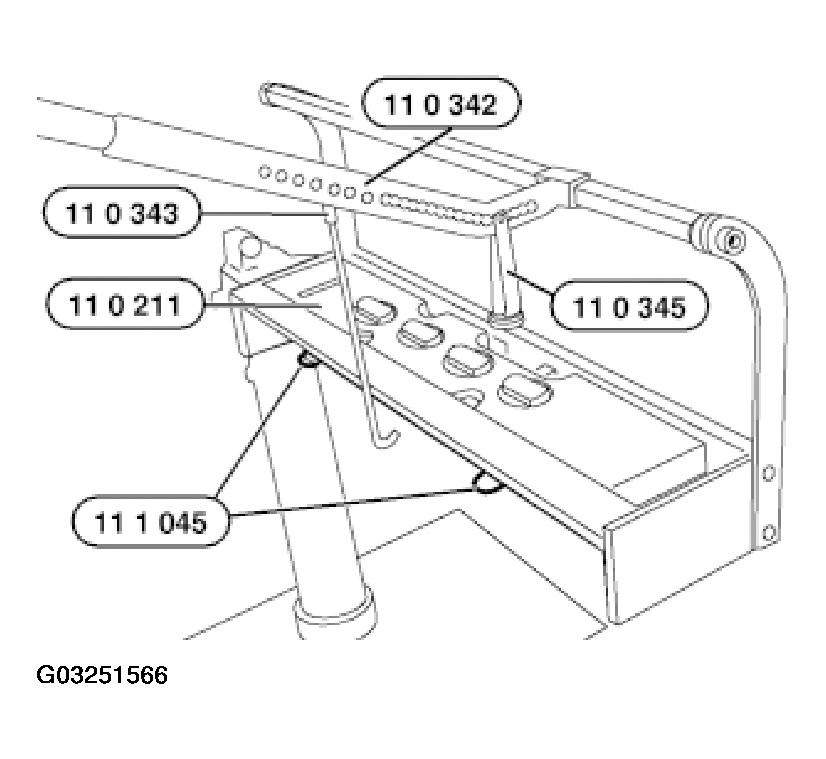

• special tool 11 1 045
• special tool 11 0 345
• special tool 11 0 342
• special tool 11 0 343
• special tool 11 0 211
  Fig 3: Identifying Special Tools For Cylinder Head Disassembly (2 Of 2)

  Courtesy of BMW OF NORTH AMERICA, INC.

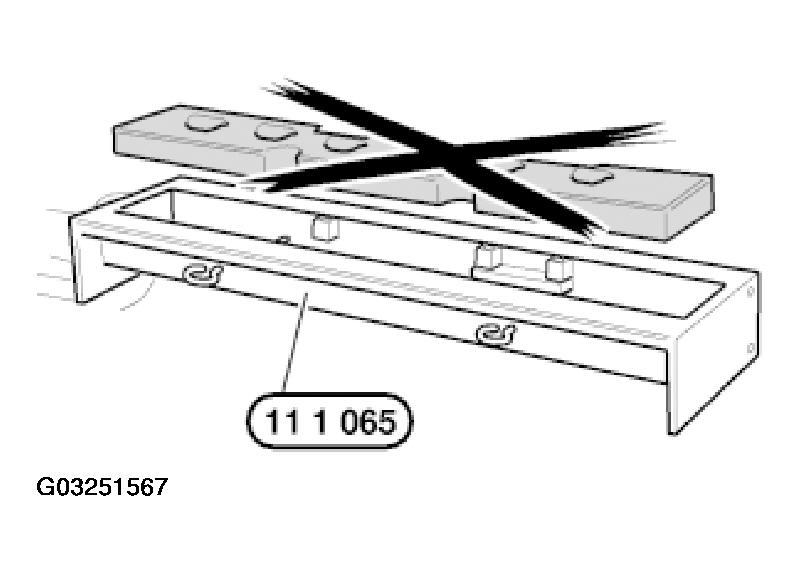

Fig 4: Precaution For Installing Special Tool 11 0 211 (Support Board) In Special Tool 11 1 065

Courtesy of BMW OF NORTH AMERICA, INC.

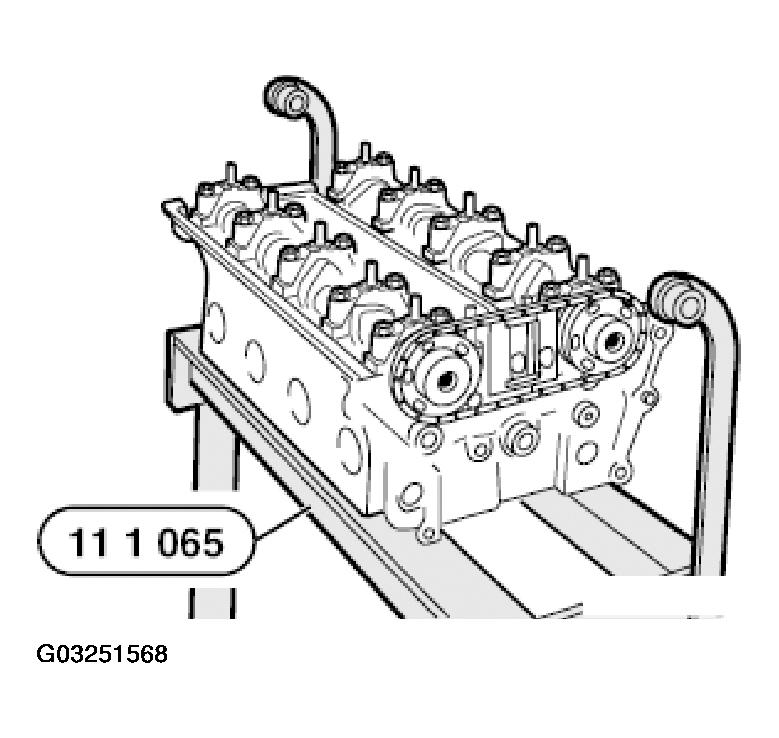

Fit cylinder head on special tool 11 1 065 and secure with two cylinder head screws.

Fig 5: Fitting Cylinder Head On Special Tool 11 1 065

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshafts. This task is described in the section "Removing left/right camshafts",

refer to 11 31 011 REPLACING LEFT CAMSHAFTS (M62 VANOS FROM 9/98)  / 11 31 015.

Remove all valve springs,

Refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M62) .

Remove all valve stem seals,

refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M62, S62) .

Remove all valves,

refer to 11 34 552 REMOVING AND INSTALLING / REPLACING ALL VALVES (M62) .
