67 16 011 Removing And Installing/Replacing Left Headlight Vertical Aim Adjuster (Xenon Headlight)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

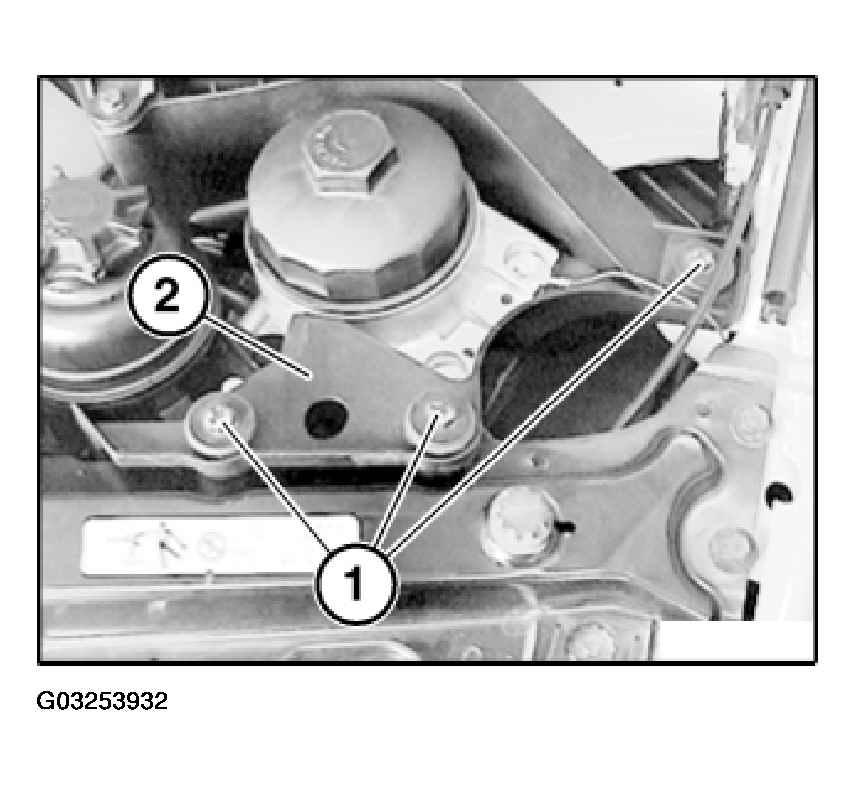

M62 only:

Release screws (1) and remove equipment carrier (2).

Fig 1: Removing Equipment Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

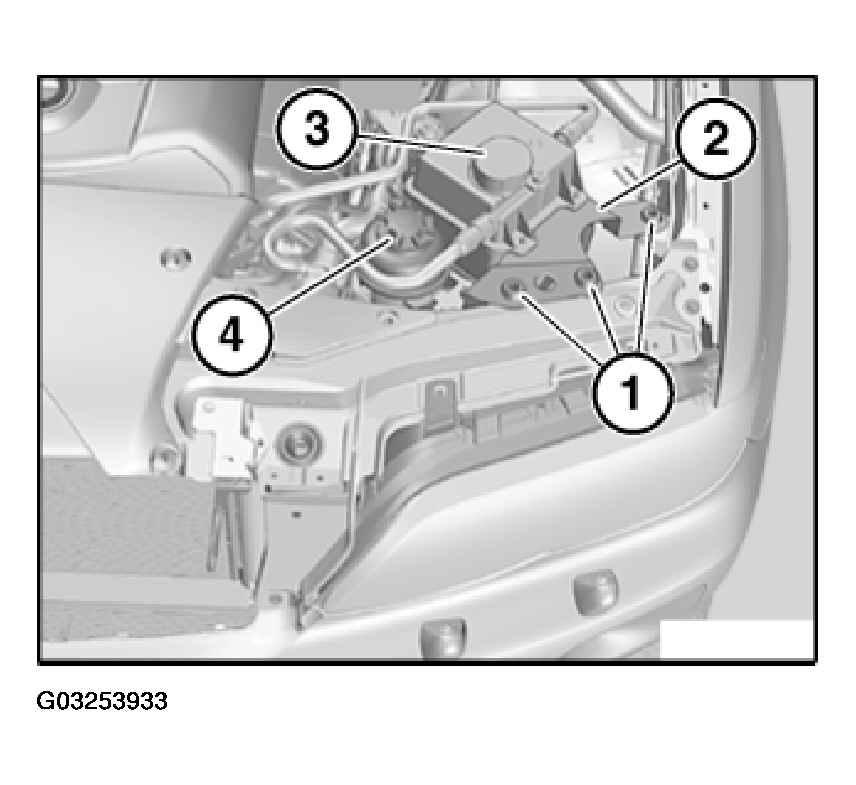

N62 only:

Release screws (1).

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure cover caps (3) and (4) are firmly seated.

Lay equipment carrier (2) to one side.

Up to 10/2003:

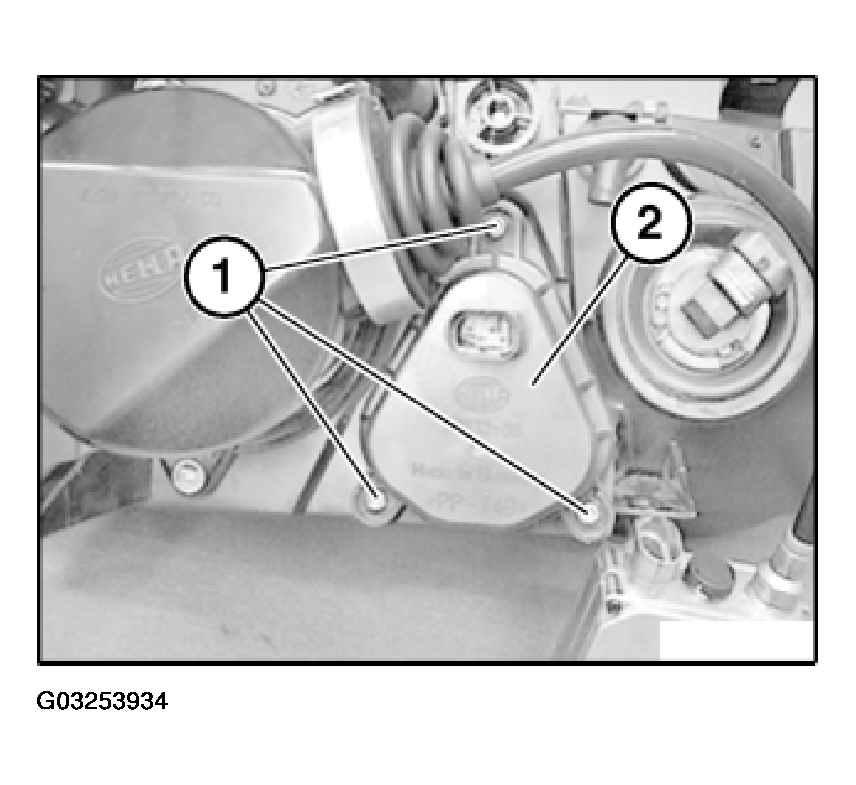

NOTE: For purposes of clarity, illustration shows component removed.

Release screws (1) and remove protective cap (2).

Fig 3: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace seal of protective cap (2).

Disconnect plug connection (1).

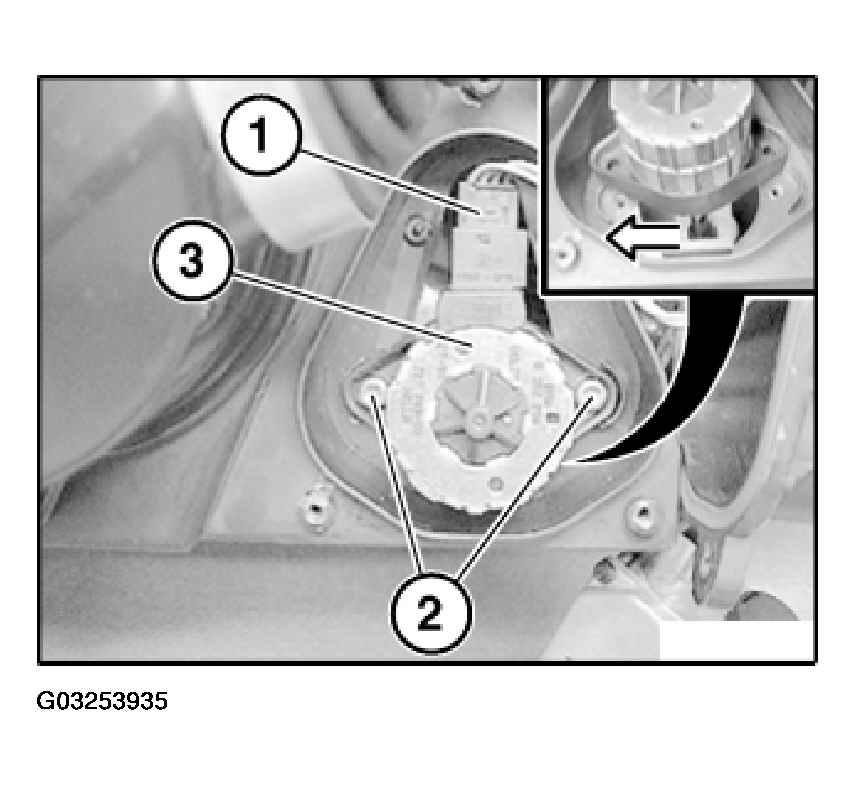

Fig 4: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Feed out headlight vertical aim adjuster (3) in direction of arrow and pull out.

Installation:

Pull out bulb holder of high-beam headlight.

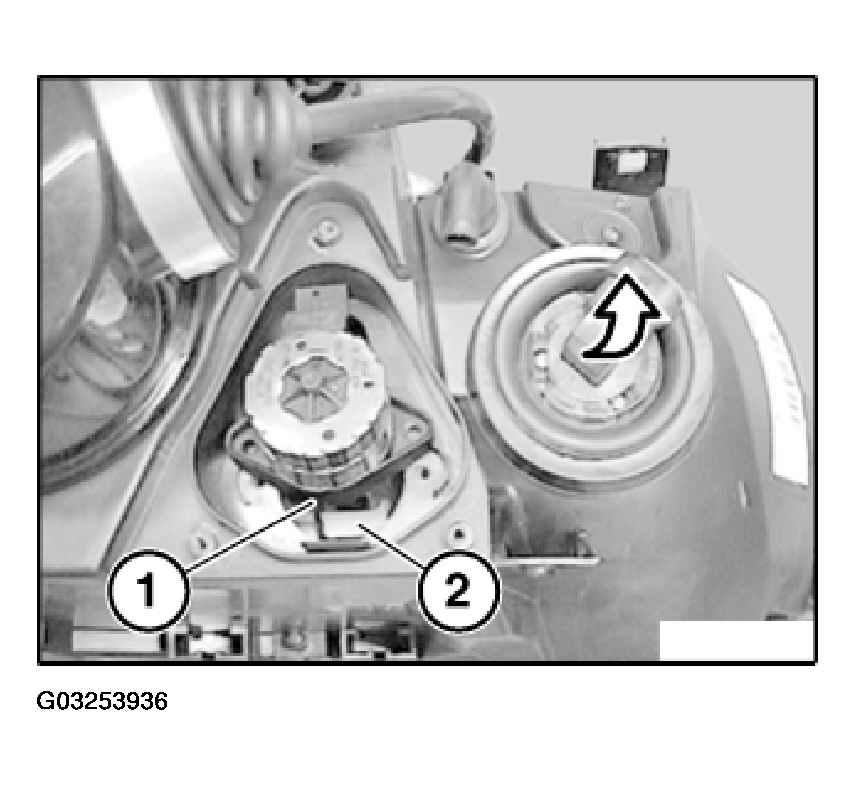

Fig 5: Installing Ball Head

Courtesy of BMW OF NORTH AMERICA, INC.

Feed ball head (1) of headlight vertical aim adjuster into guide (2).

From 10/2003:

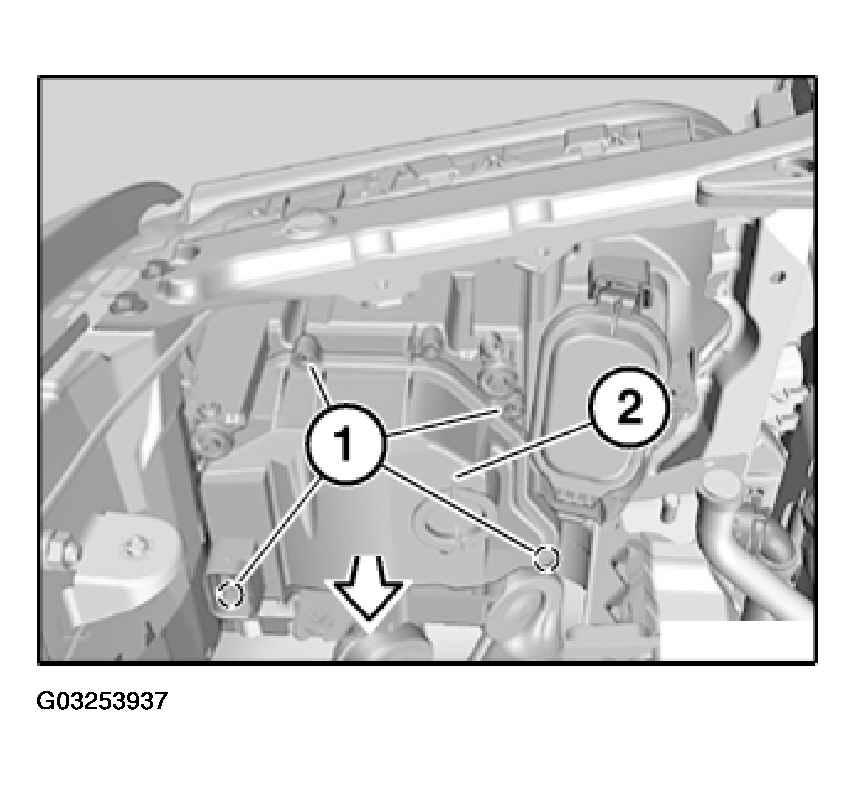

Release screws (1) and remove cover (2) in direction of arrow.

Fig 6: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure seal of cover (2) is correctly seated.

Disconnect plug connection (1).

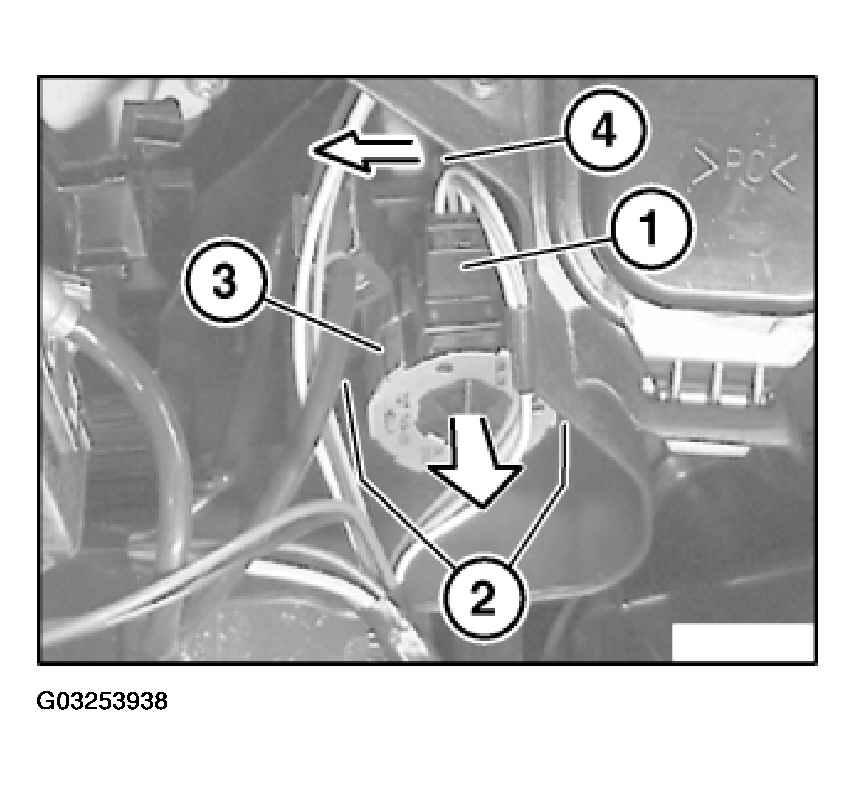

Fig 7: Removing Headlight Vertical Aim Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Feed headlight vertical aim adjuster (3) with ball head (4) in direction of arrow out of associated fixture and pull out.

Installation:

Make sure ball head (4) is correctly seated in associated fixture.

All:

Installation:
