63 10 004 Adjusting Headlights

WARNING: This page is about a different variant/trim than selected.

Observe test preconditions for adjusting headlights. Refer to 63 10 ... TEST REQUIREMENTS FOR HEADLIGHT VERTICAL AIM ADJUSTMENT  .

Adjust headlights at adjusting screws (1) and (2). A definite allocation of adjusting screws is not possible.

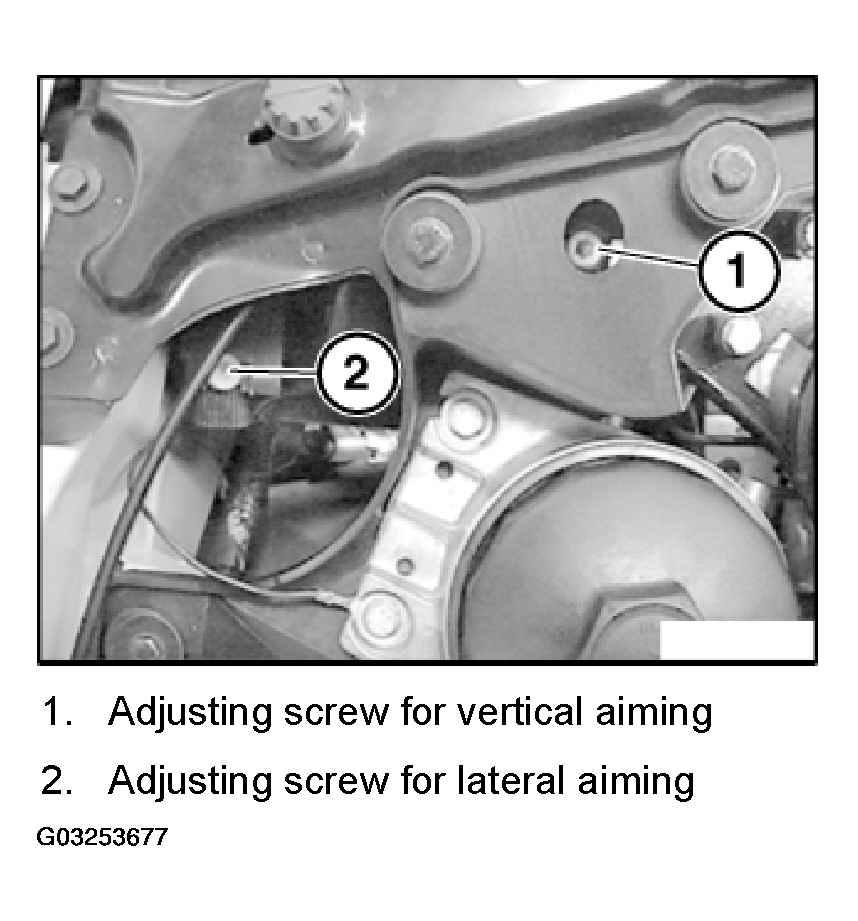

Fig 1: Adjusting Headlights
G03253677Courtesy of BMW OF NORTH AMERICA, INC.
  1. Adjusting screw for vertical aiming
  2. Adjusting screw for lateral aiming
