65 52 023 Replacing Panel For On-Board Monitor (Control Panel, Widescreen)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Release screws (1).

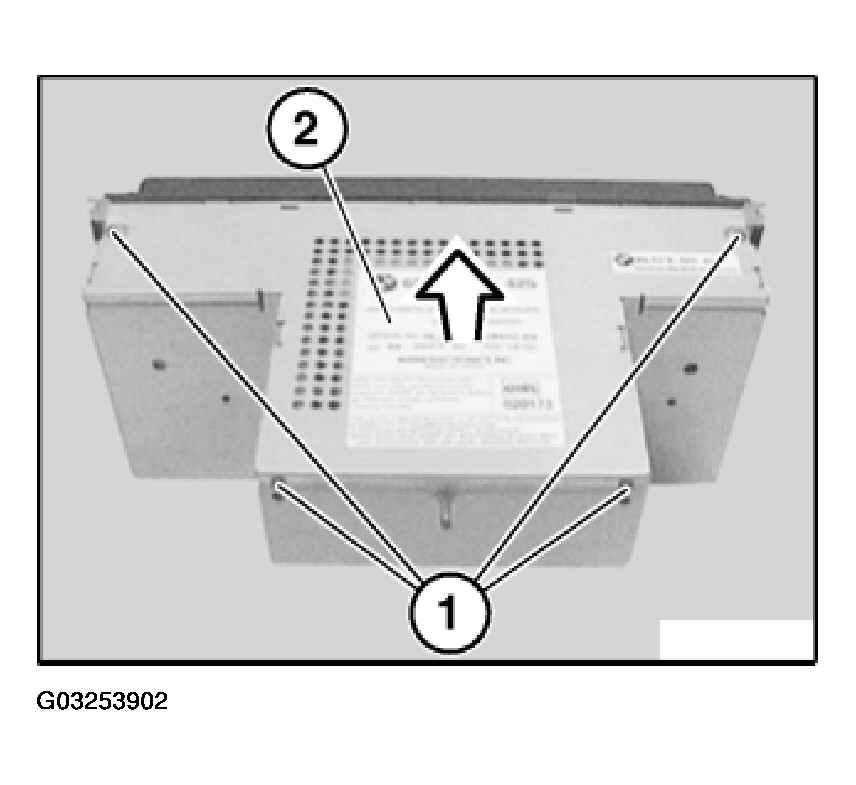

Fig 1: Removing Upper Housing Section

Courtesy of BMW OF NORTH AMERICA, INC.

Remove upper housing section (2) in direction of arrow.

Raise locks (1) in direction of arrow.

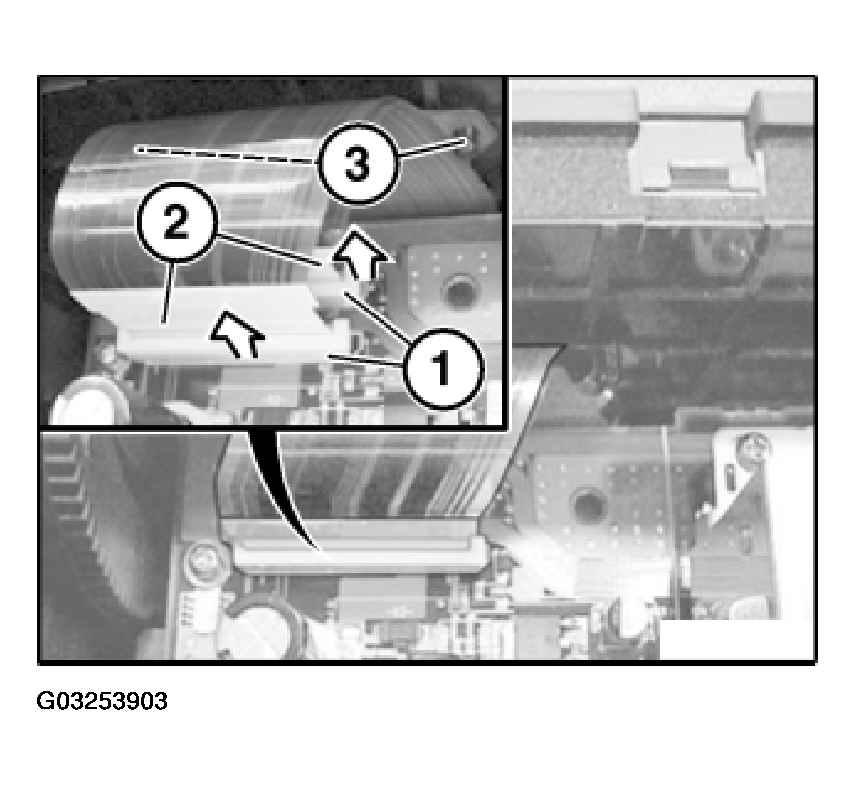

Fig 2: Detaching Ribbon Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Detach ribbon cables (2) and feed out at catches (3).

Installation:

Make sure ribbon cables are correctly seated.

NOTE: Carefully feed out ribbon cables when removing panel for onboard monitor (control panel).

Release screws (1).

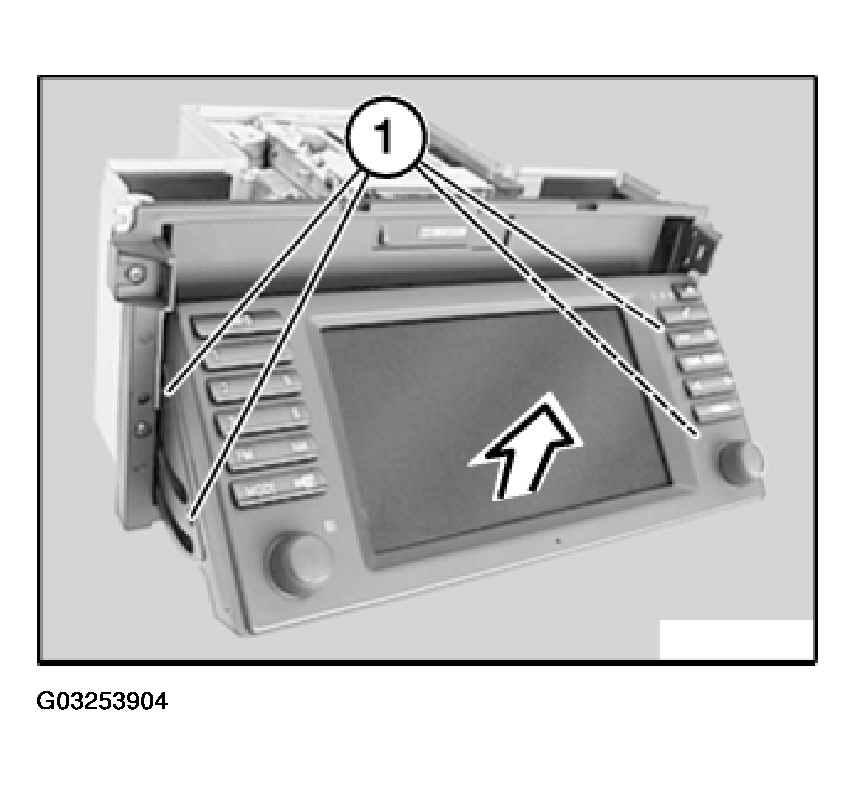

Fig 3: Removing Panel For Onboard Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel for on-board monitor (control panel) in direction of arrow.
