65 52 013 Removing And Installing Complete Onboard Monitor (Widescreen)

WARNING: This page is about a different variant/trim than selected.

Unclip frame of on-board monitor (1) in direction of arrow and remove.

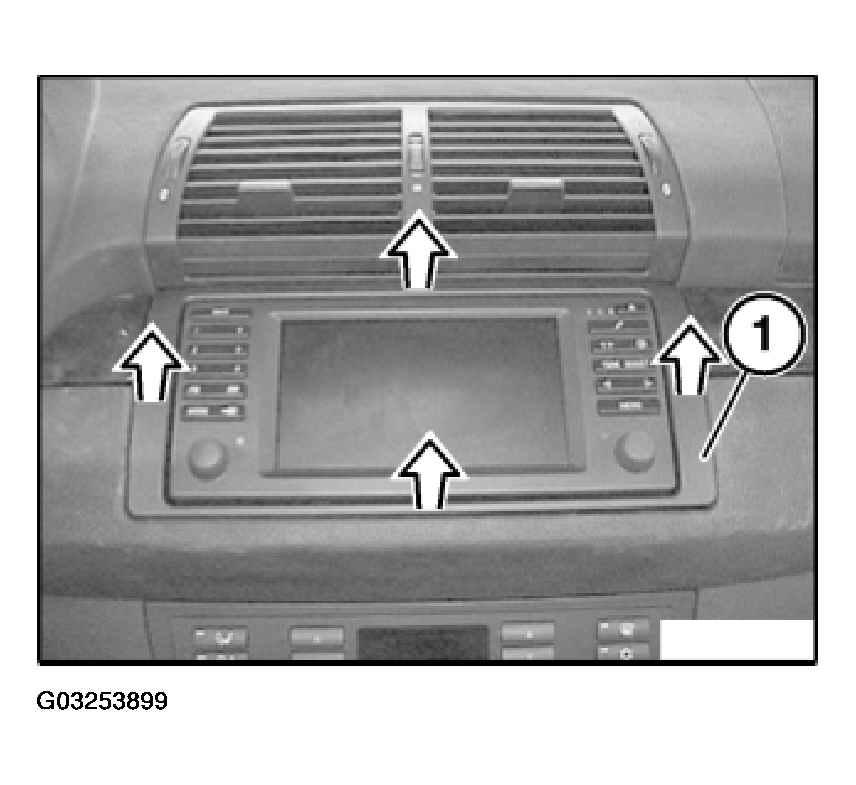

Fig 1: Removing Frame Of On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

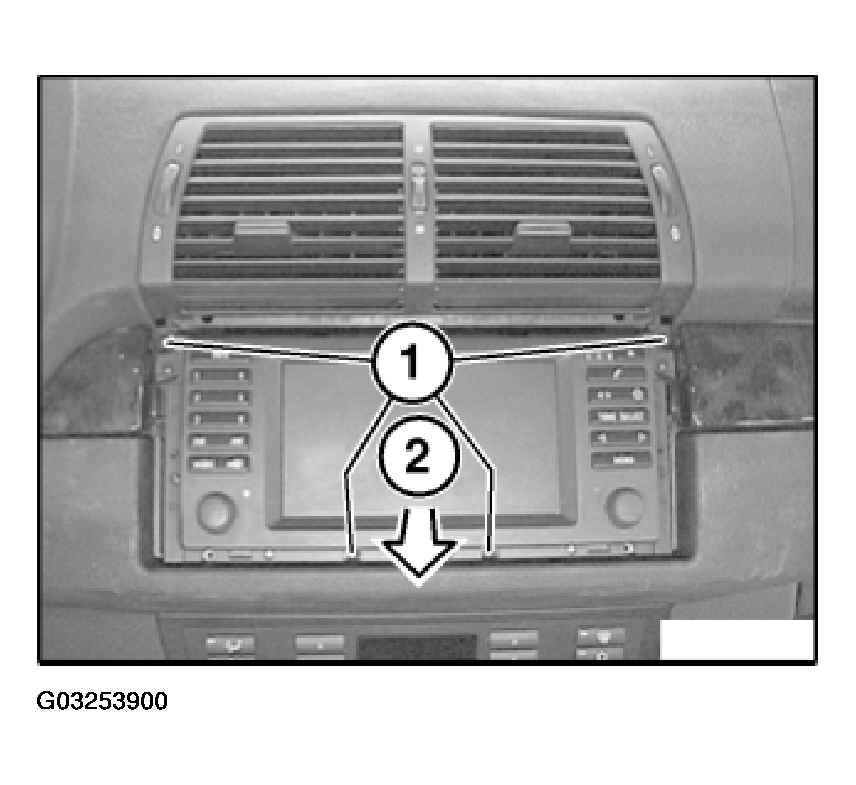

Fig 2: Pulling Out On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out complete on-board monitor (2) in direction of arrow.

Unlock plug connections (1) and (2) and disconnect.

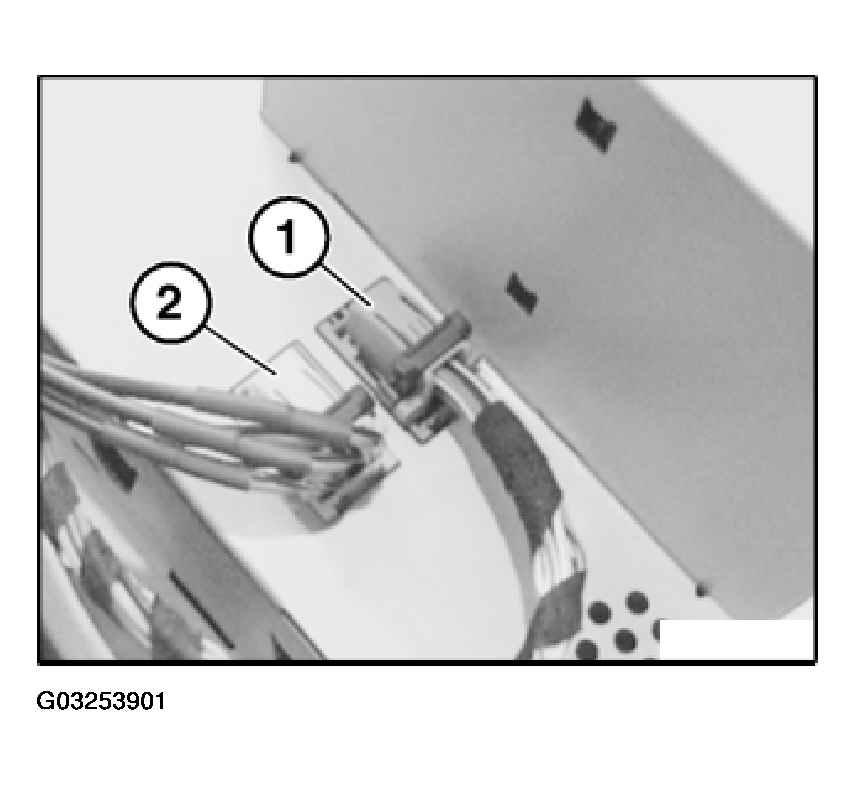

Fig 3: Removing On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete on-board monitor.
