64 11 321 Replacing front plate (automatic A/C)

Remove heating controls. Refer to 64 11 749 REMOVING AND INSTALLING HEATER CONTROL (AUTOMATIC AIR CONDITIONING) .

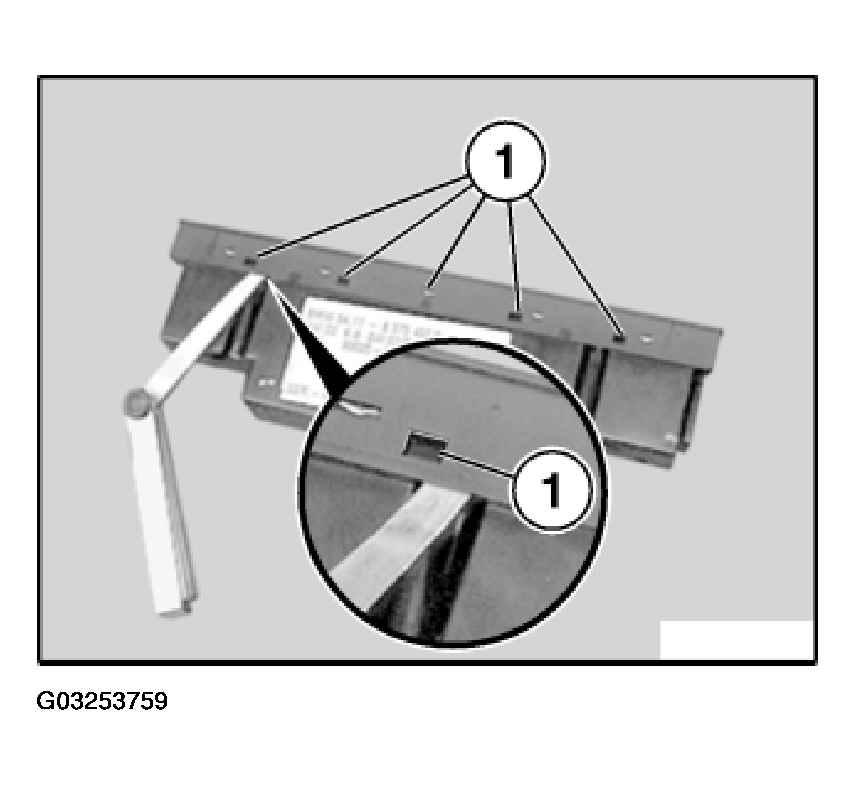

Carefully unclip clips (1) at top and bottom. Remove front plate.

Fig 1: Removing Front Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

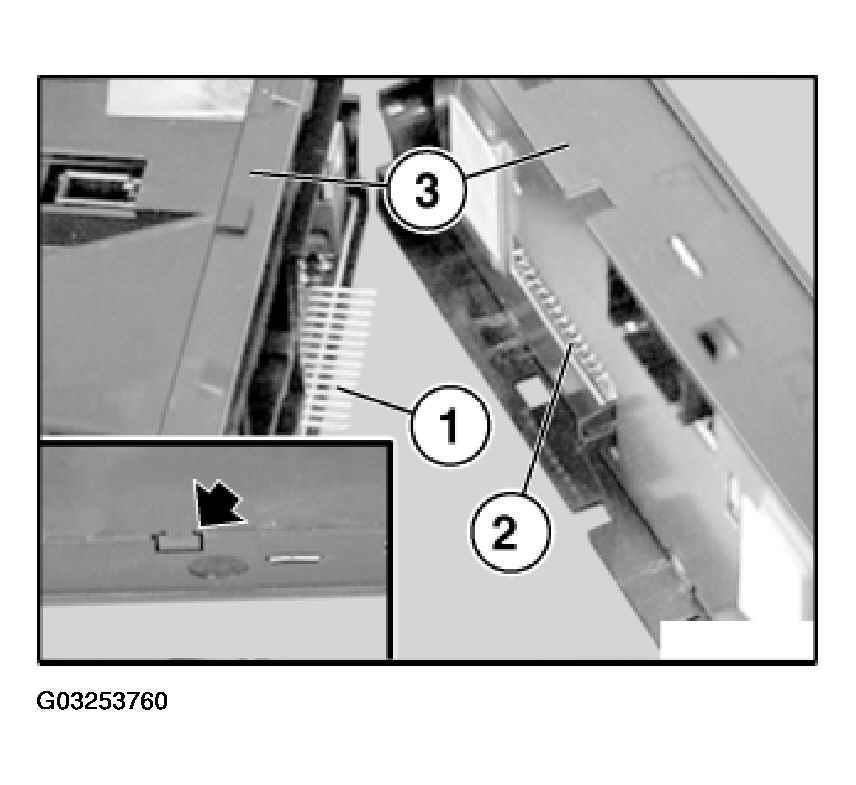

Insert pins (1) straight into bushes (2).

Fig 2: Inserting Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure when pushing front plate together with housing that swallow-tail guides (3) engage each other.
