64 11 749 Removing And Installing Heater Control (Automatic Air Conditioning)
WARNING: This page is about a different variant/trim than selected.
Special tools required:
- 00 9 340

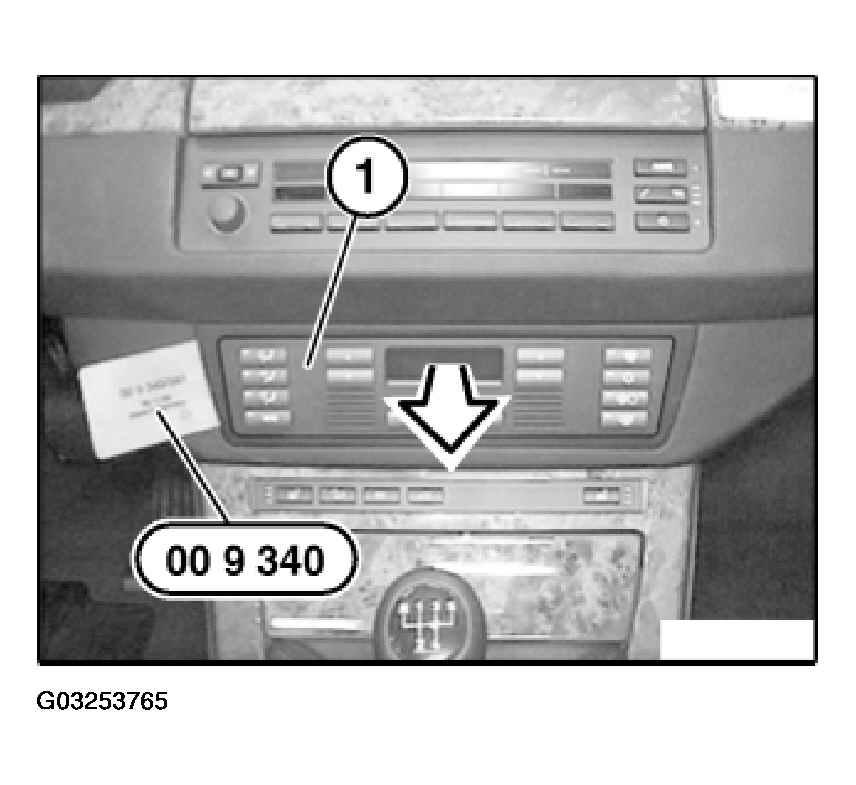

Unlock heating controls (1) with special tool 00 9 340 and pull out in direction of arrow.
Installation:
Ensure that heating controls (1) are correctly seated.
Disconnect plug connections and remove heating controls (1).
