63 99 445 Replacing bulb(s) for mirror light

WARNING: This page is about a different variant/trim than selected.
CAUTION: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS)  .

Remove mirror light. Refer to 63 31 050 REMOVING AND INSTALLING/REPLACING MIRROR LIGHT  .

Spread bow contacts (1) and remove bulb(s) (2).

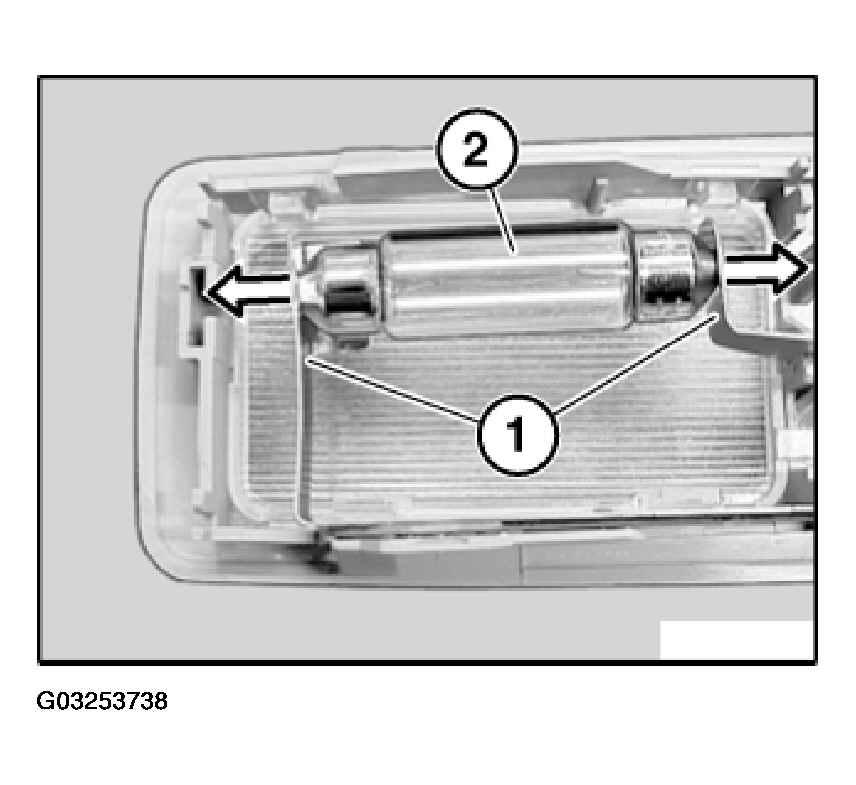

Fig 1: Removing Bulb
G03253738Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
