63 31 050 Removing And Installing/Replacing Mirror Light

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Follow instructions for handling light bulbs (interior lights). Refer to 63 99 ... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Replacement:

If necessary, convert bulb.

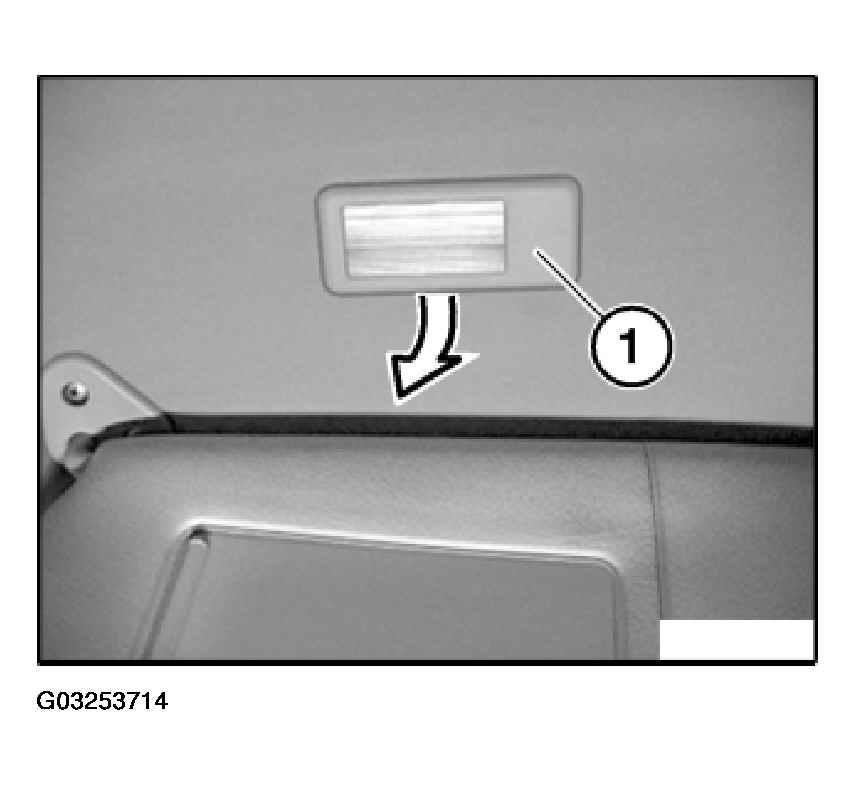

Lever front mirror light (1) in direction of arrow.

Fig 1: Removing Mirror Light

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove mirror plate light (1).

Replacement:

Note type of bulb. Refer to 63 31 INTERIOR LIGHTS E53 .
