63 12 860 Replacing Control Unit For Left Xenon Headlight

Necessary preliminary tasks:

• Remove headlight, refer to 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT)

Up to 10/2003:

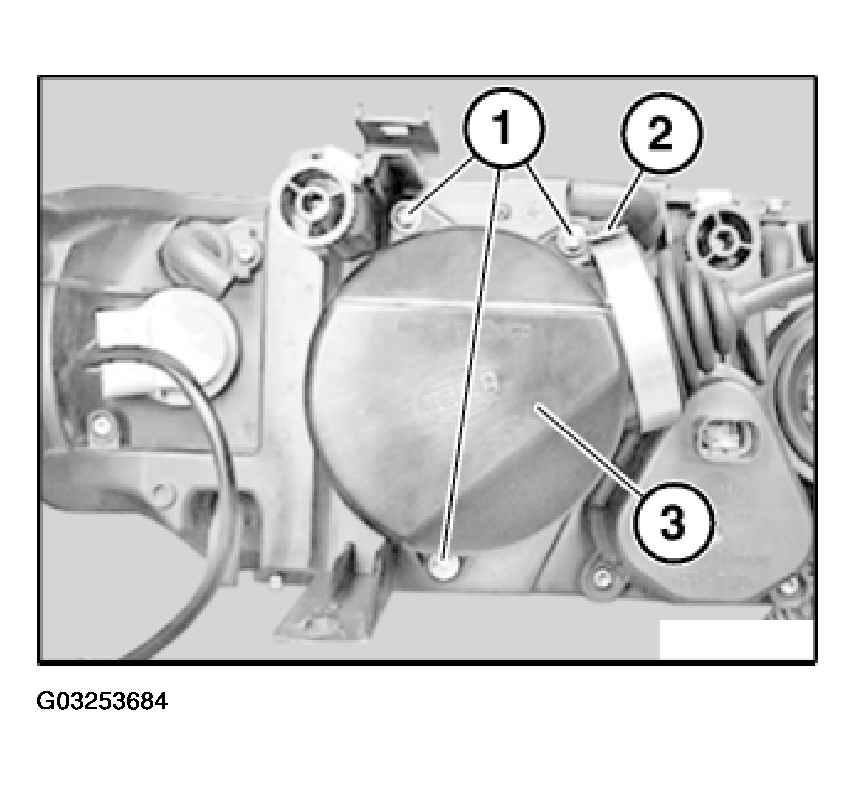

Release screws (1) and hose clip (2).

Fig 1: Removing Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Remove protective cap (3).

Installation:

If necessary, replace seal for protective cap (3).

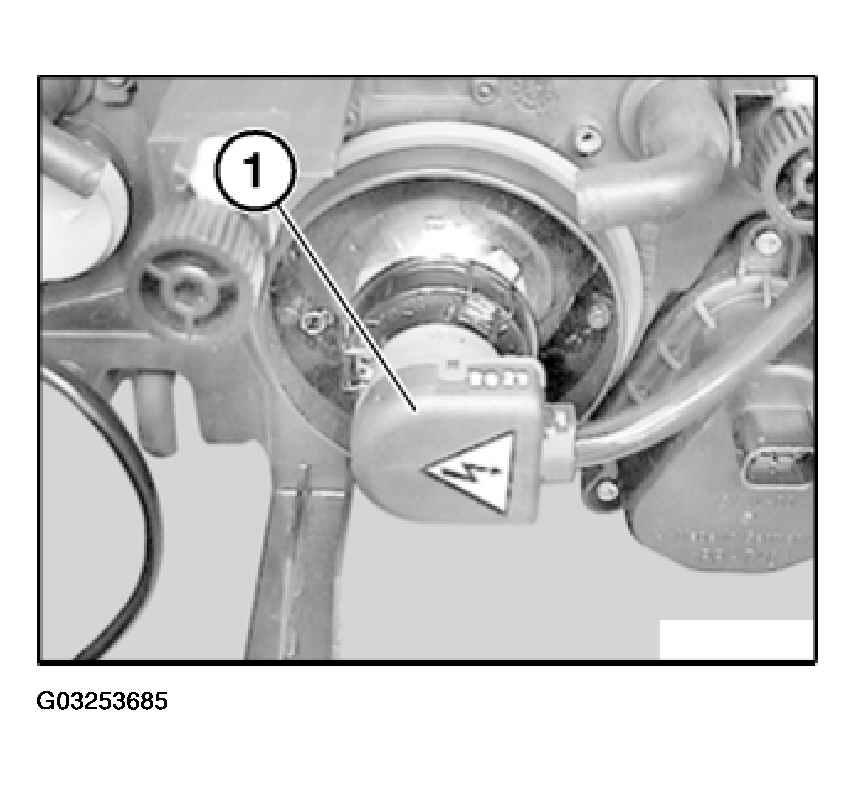

Turn ignition unit of xenon lamp (1) counterclockwise through approx. 45° and remove.

Fig 2: Removing Control Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out ignition unit of xenon lamp (1) through opening in protective cap.

Remove control unit for xenon headlight.

From 10/2003:

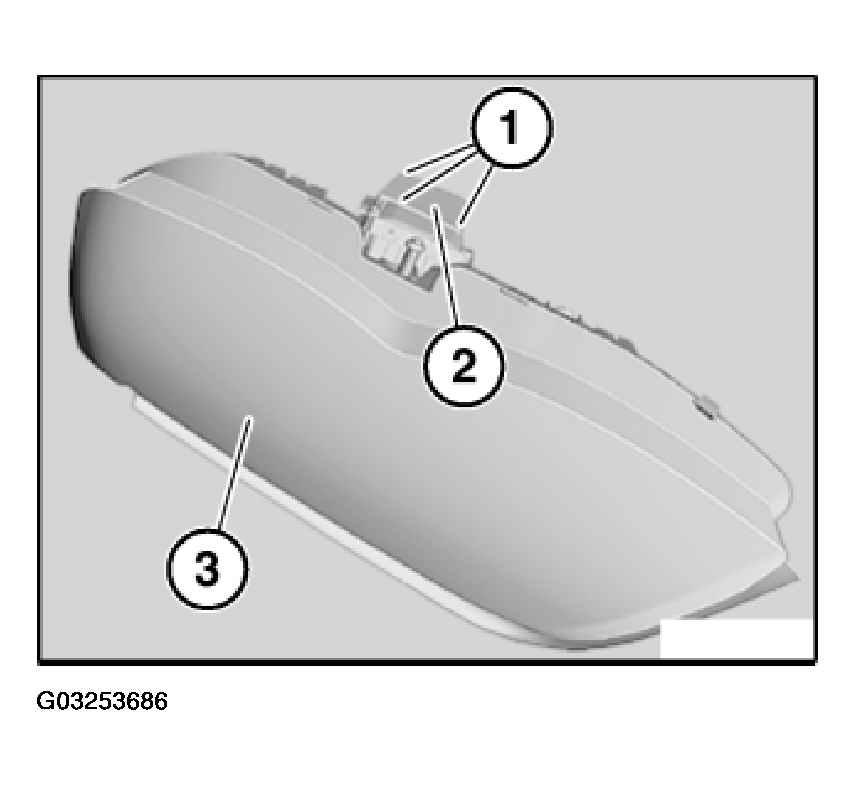

Release screws (1).

Fig 3: Removing Control Unit For Xenon Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Remove control unit for xenon headlight (2) from xenon headlight (3).
