63 12 001 Removing And Installing/Replacing Left Headlight

Necessary preliminary tasks:

• Up to 10/2003:

  Remove trim from left headlight housing. Refer to 51 13 065 REMOVING AND INSTALLING OR REPLACING FINISHER ON LEFT OR RIGHT HEADLIGHT HOUSING .

• From 10/2003:

  Remove front bumper trim.

Unlock plug connections (1) and disconnect.

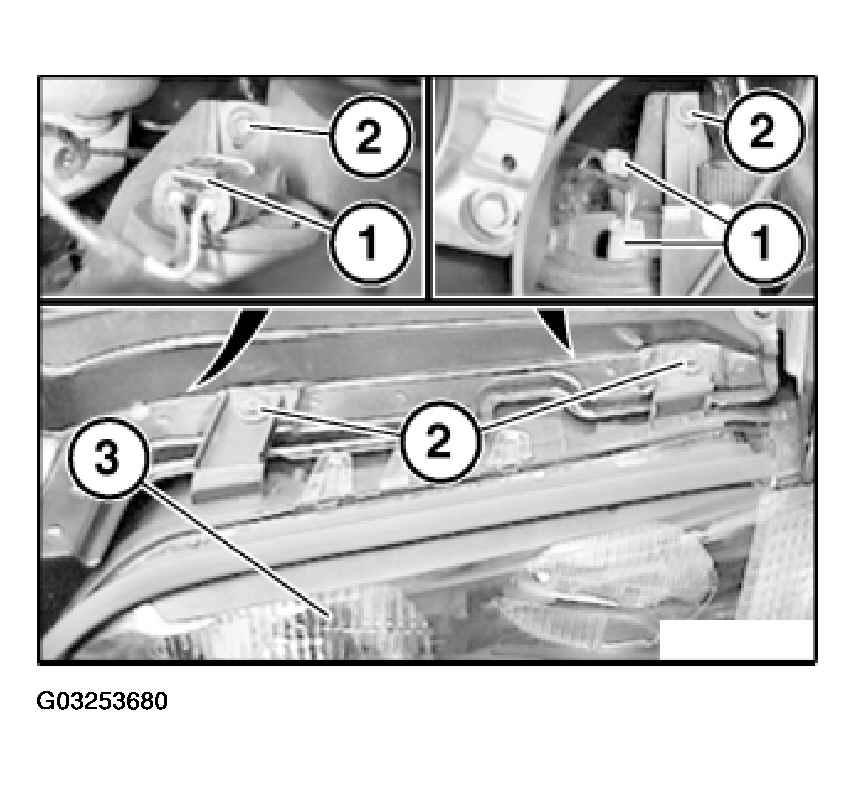

Fig 1: Removing Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on top and rear sides of headlight (3).

Remove headlight (3).

Installation:

• Adjust gap dimensions
• Adjust headlights, refer to 63 10 004 ADJUSTING HEADLIGHTS
