61 61 270 Removing And Installing Mounting Bracket For Windshield Wiper System Completely With Motor

WARNING: This page is about a different variant/trim than selected.

Special tools required:

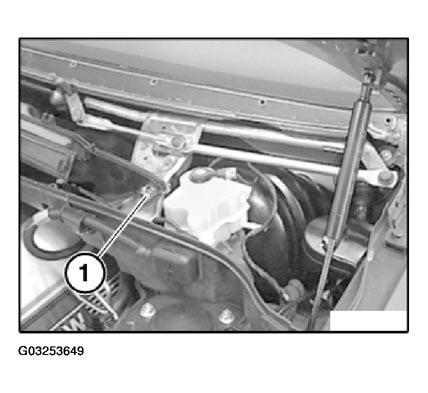

Pull out air funnel (1) on microfilter housing.

Fig 1: Removing Funnel

Courtesy of BMW OF NORTH AMERICA, INC.

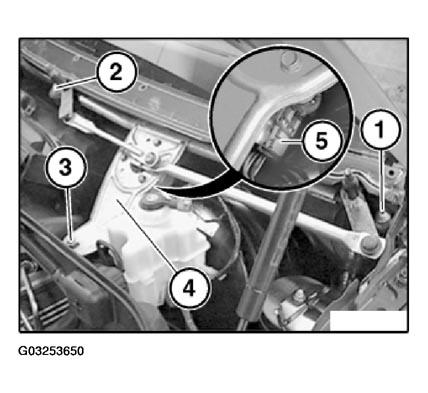

Remove screws (1) and (2).

Fig 2: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace damping ring upper/lower section.

Tighten screws (1) and (2) in specified sequence.

Observe tightening torque, 61 61 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Release nut (3) with special tool 61 6 250.

Installation:

If necessary, replace rubber buffer.

Fit nut (3) loosely.

Remove bracket for windshield wiper system (4) and disconnect plug connection (5).

Installation:

Before installing wiper arms, allow wiper motor to return to its rest position.

To ensure the wiper system works properly, check and correct the contact angle of the wiper arms. Refer to 61 61 010 CHECKING/ADJUSTING APPROACH ANGLE OF WINDSHIELD WIPER ARMS ON FRONT WINDSCREEN .

In event of deviations from specified value, correct contact angle using adjusting screw (1).

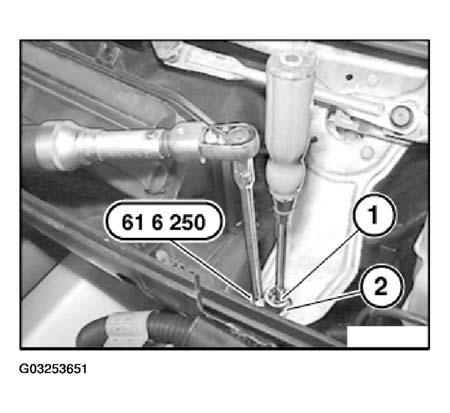

Fig 3: Tightening Nut With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Check contact angle of wiper arms again.

Grip adjusting screw (1) and tighten nut (2) with special tool 61 6 250.

Observe tightening torque, 61 61 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Secure nut (2) with locking varnish.
