61 61 010 Checking/Adjusting Approach Angle Of Windshield Wiper Arms On Front Windscreen

WARNING: This page is about a different variant/trim than selected.

Special tools required:

00 9 221
00 9 222
00 9 331

NOTE: Wiping quality is increased if the approach angle of the windshield wiper arms is precisely adjusted.

Place special tool 00 9 331 next to pivot point of windshield wiper blade on windshield.

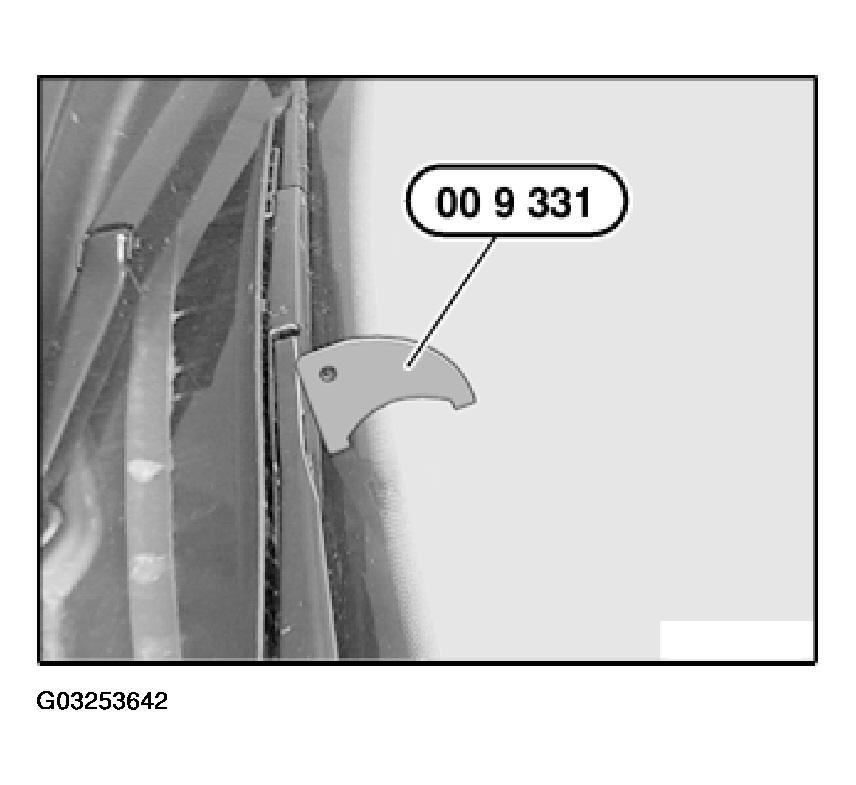

Fig 1: Placing Special Tool On Windshield

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent the wiper arm from scratching the glass, cover the arm with adhesive tape.

To adjust passenger windshield wiper arm, move it into vertical position.

If contact angle is too large (light gap at top between gauge and wiper blade), grip wiper arm with special tool 00 9 222 and turn in direction of arrow with special tool 00 9 221.

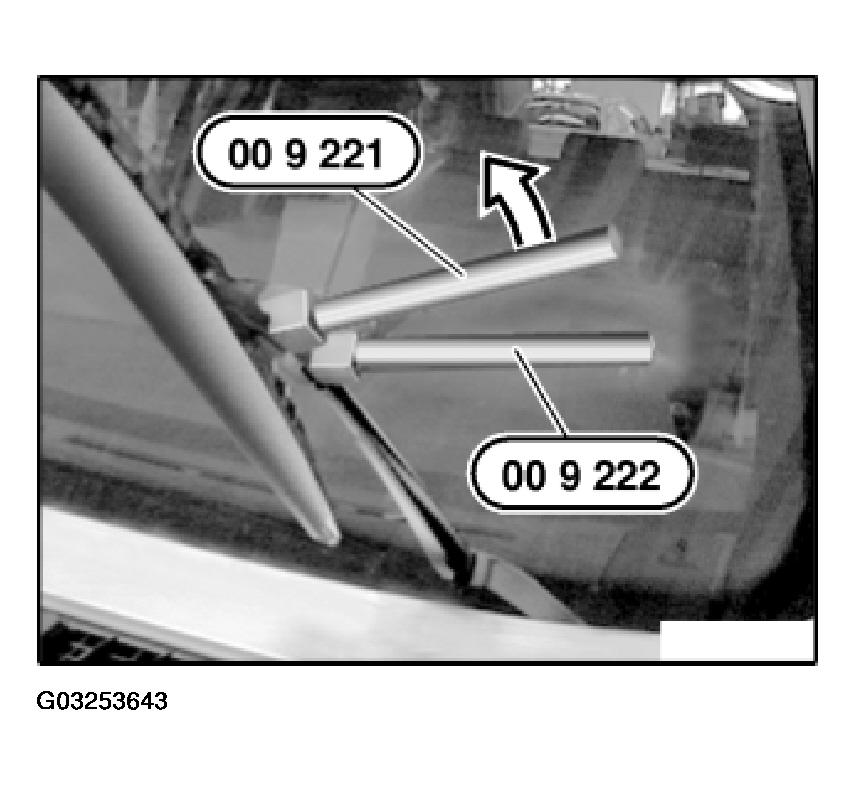

Fig 2: Adjusting Passenger Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To prevent the wiper arm from scratching the glass, cover the arm with adhesive tape.
To adjust passenger windshield wiper arm, move it into vertical position.

If contact angle is too small (light gap at bottom between gauge and wiper blade), grip wiper arm with special tool 00 9 222 and turn in direction of arrow with special tool 00 9 221.

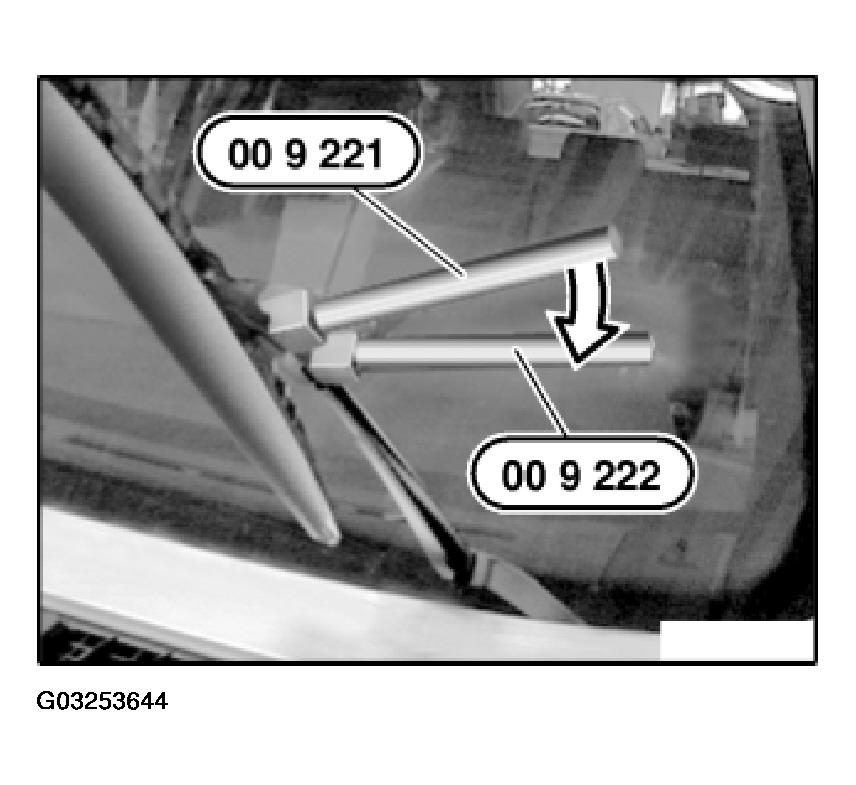

Fig 3: Adjusting Passenger Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.
