26 11 090 Removing and installing/replacing centering mount for propeller shaft: Procedure

WARNING: This page is about a different variant/trim than selected.

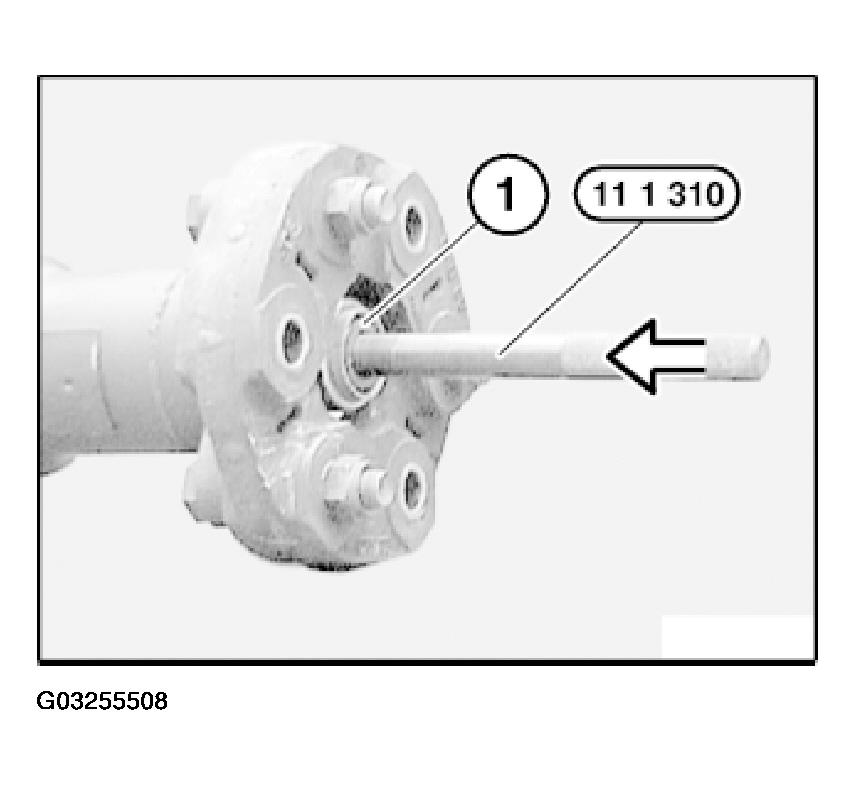

Fill centering bore (1) completely with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering bore.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

Fig 1: Removing Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease/water from mount bore.

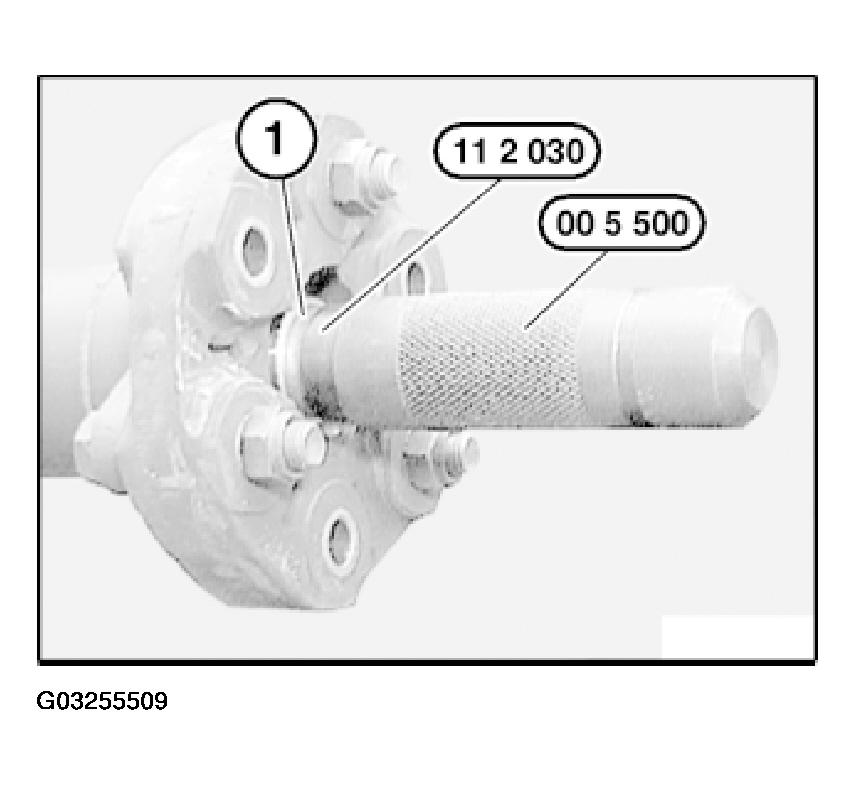

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Fig 2: Installing Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Grease centering mount.

Installation:

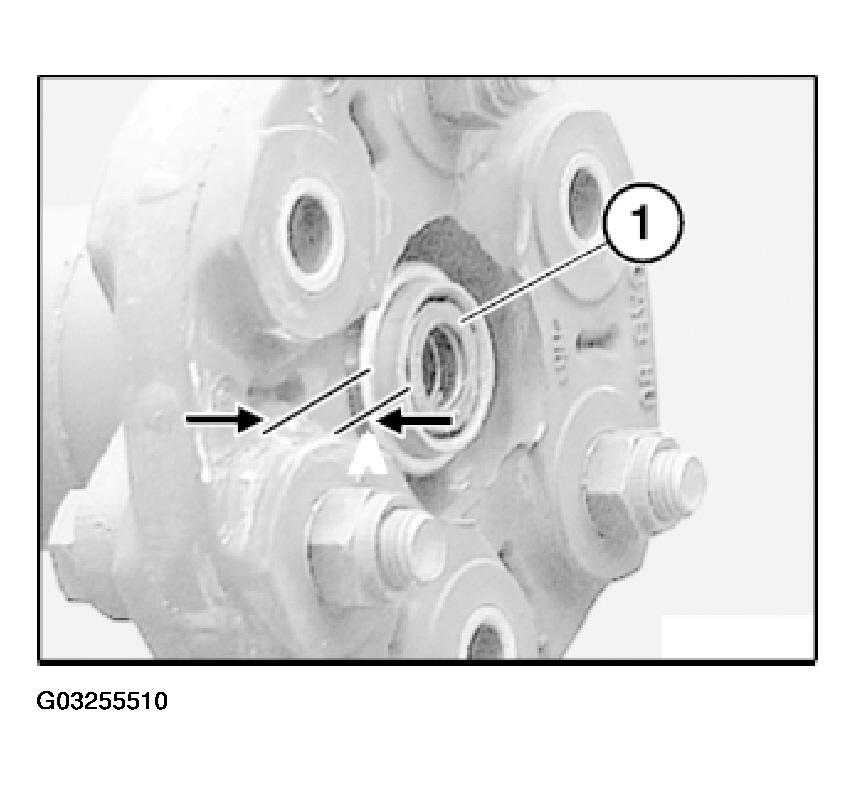

Observe protrusion A = 4⁺² mm of centering (1).

Fig 3: Identifying Centering Mount Protrusion Dimension "A"

Courtesy of BMW OF NORTH AMERICA, INC.
