26 11 000 Removing and installing complete propeller shaft

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove exhaust system (M62/M54/M57TU). Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM .
Remove heat shield at rear.

Unfasten screws.

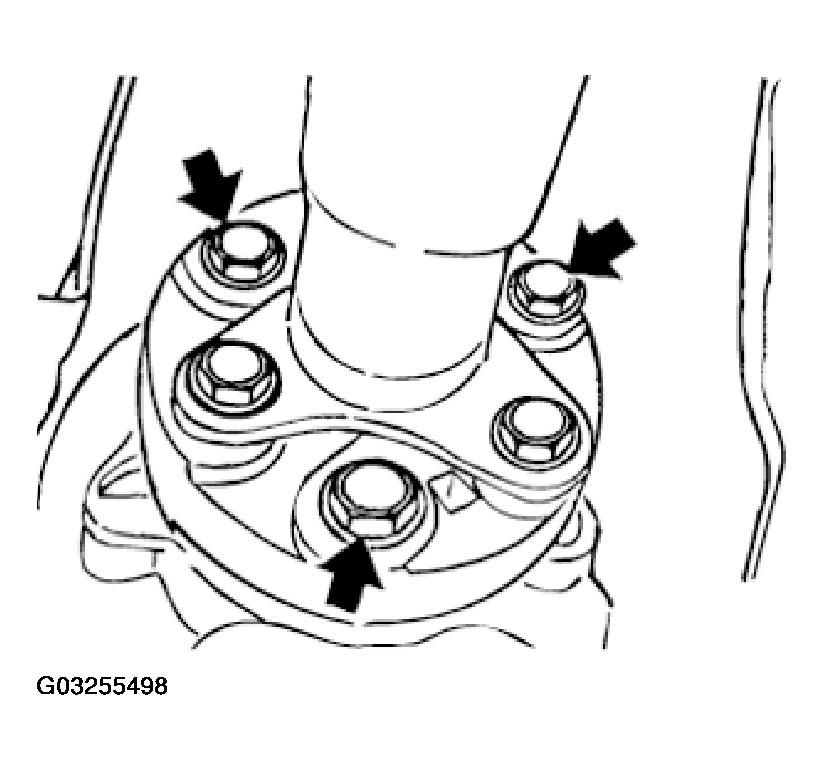

Fig 1: Removing Propeller Shaft Self-Locking Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 26 11 1AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

Replace self-locking nuts.

Unscrew nuts.

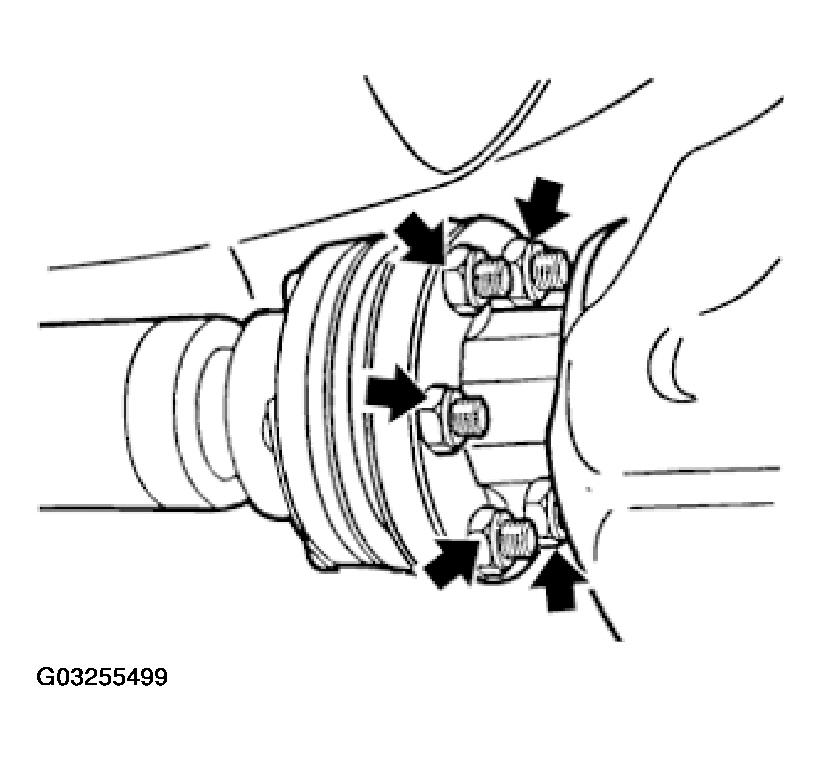

Fig 2: Removing Propeller Shaft To Differential Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 26 11 4AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

With a screwdriver, press constant-velocity joint (at the disassembly grooves) off input flange.

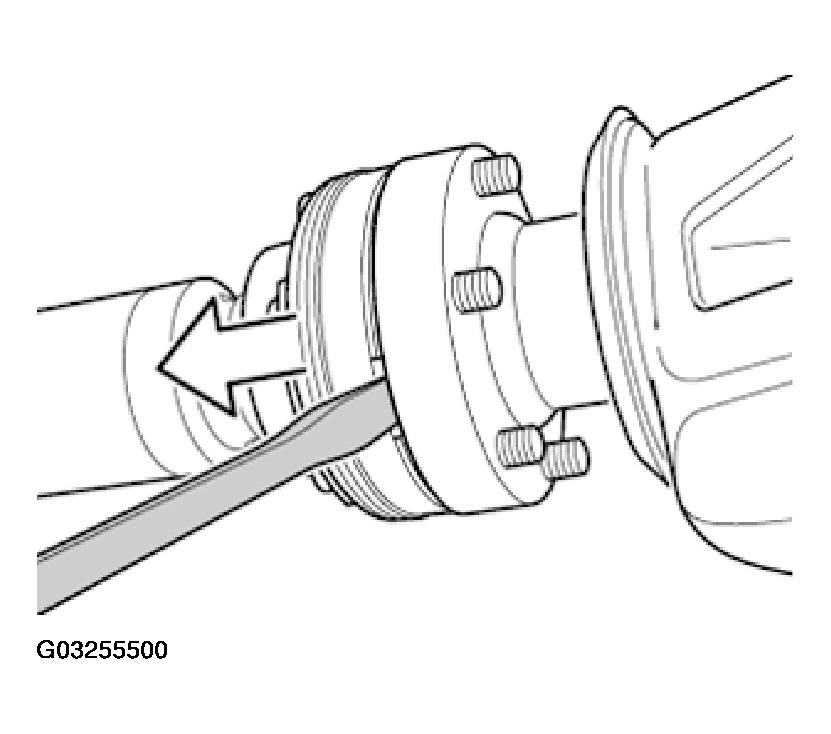

Fig 3: Pressing Constant-Velocity From Flange

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not let propeller shaft fall into joints.
Joints and rubber sleeve on constant-velocity joint can be damaged.

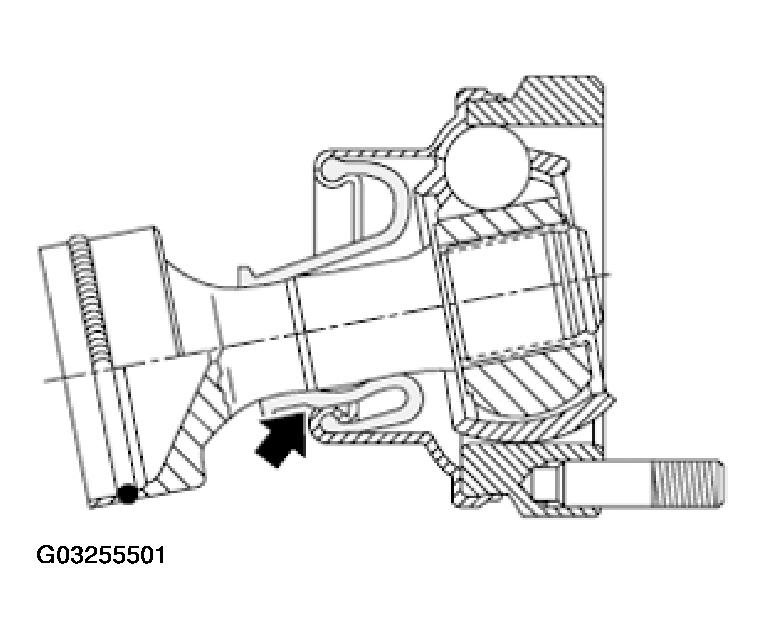

Fig 4: Use Care When Removing Constant-Velocity Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Brace propeller shaft on center mount and loosen nuts.

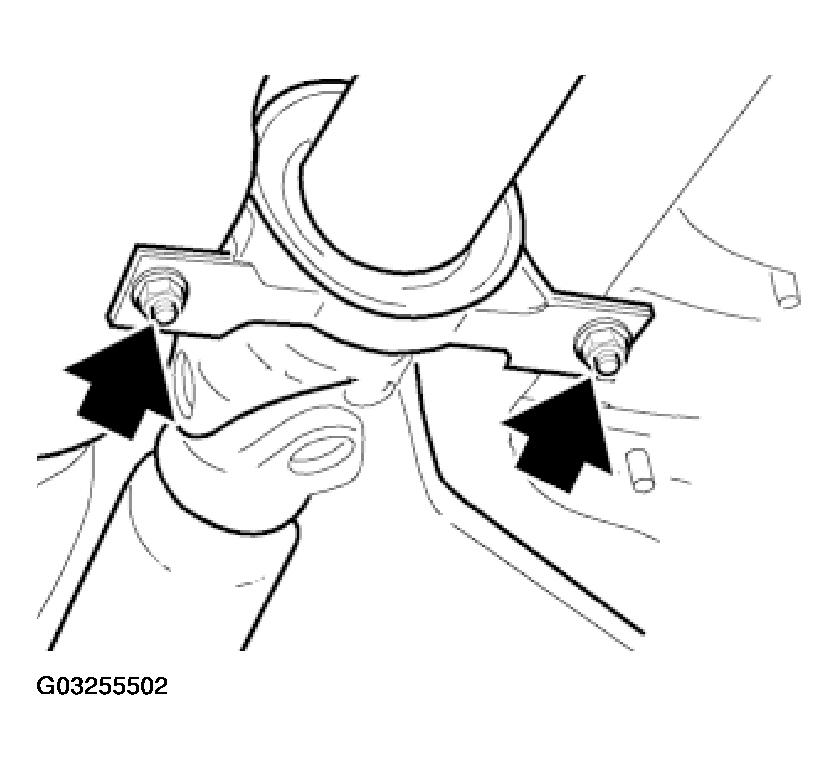

Fig 5: Removing Center Mount Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 26 11 6AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

Bend propeller shaft downwards on center bearing.

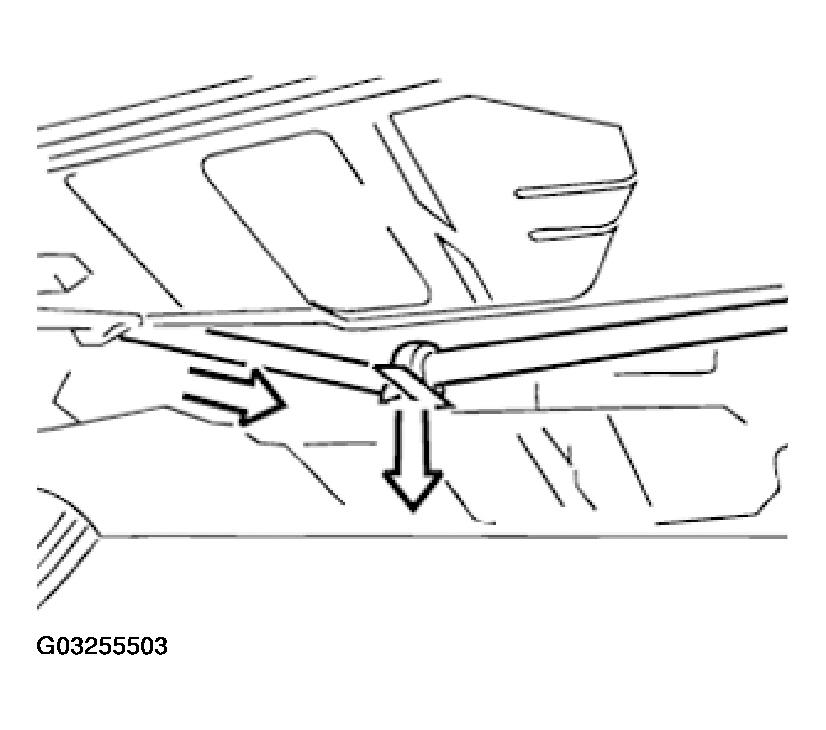

Fig 6: Bending Propeller Shaft Downwards On Center Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove propeller shaft from transmission output flange and remove constant-velocity joint from final drive.

NOTE: Protect constant-velocity joint from dirt with transport cap.

Installation:

Top up grease fill.

Grease: refer to BMW SERVICE OPERATING FLUIDS .

Pull out constant-velocity joint (1) up to stop.

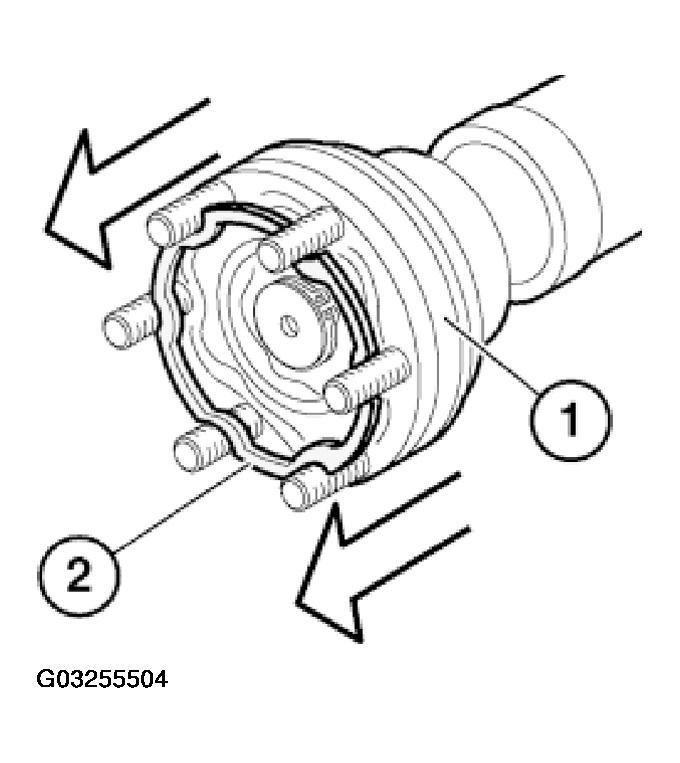

Fig 7: Pulling Constant-Velocity Joint Out To Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing faces of constant-velocity joint and input flange with grease.

Replace seal (2).

Use new nuts.

Attach propeller shaft with constant-velocity joint pulled apart to drive flange of final drive.

IMPORTANT: The constant-velocity joint must not be compressed during assembly because the grease fill can force away the sealing ring, leading to leakage from the constant-velocity joint.
Alternately tighten 2 opposing nuts to draw constant-velocity joint evenly into the input flange.
Then tighten down the remaining nuts.

Tightening torque, refer to 26 11 4AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .

Installation:

Check centering mount (4).

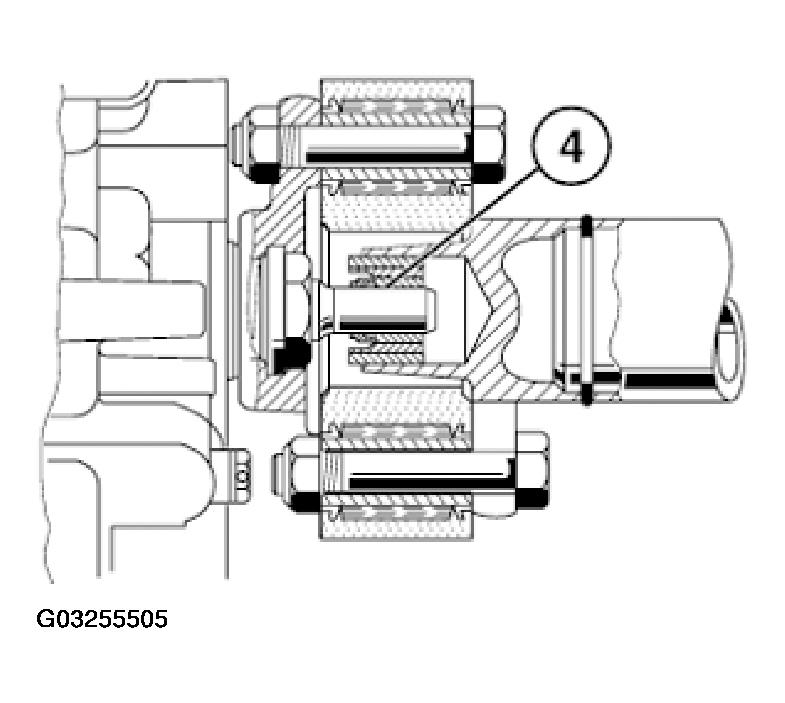

Fig 8: Checking Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Replace damaged centering mount.

Grease centering mount.

Grease:

Refer to BMW SERVICE OPERATING FLUIDS .
