26 11 051 Replacing joint disk for propeller shaft
WARNING: This page is about a different variant/trim than selected.
Remove propeller shaft, refer to 26 11 000 REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .

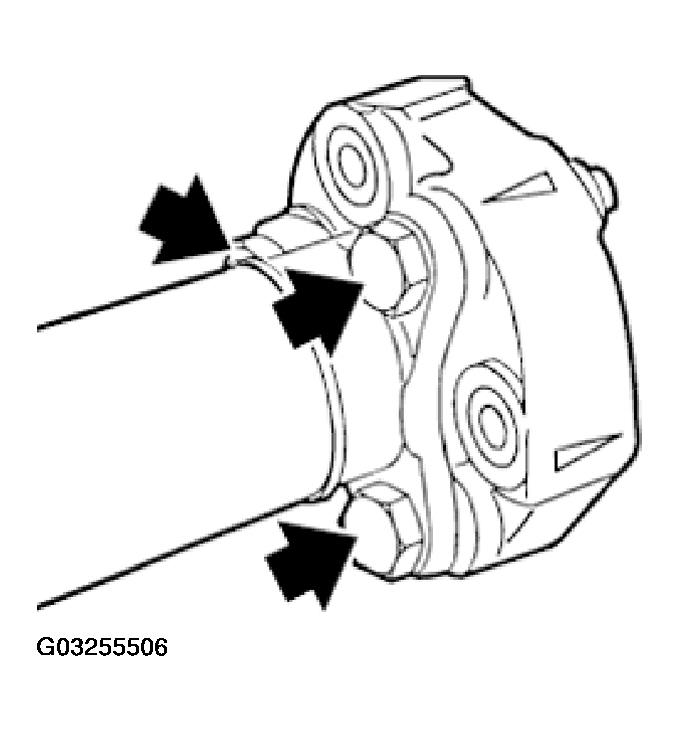

Unfasten screws and remove joint disk.
Installation:
The screw connection may only be tightened by means of the nut.
Tightening Torque, refer to 26 11 1AZ in PROPELLER SHAFT - TIGHTENING TORQUES - X5 .
Installation:

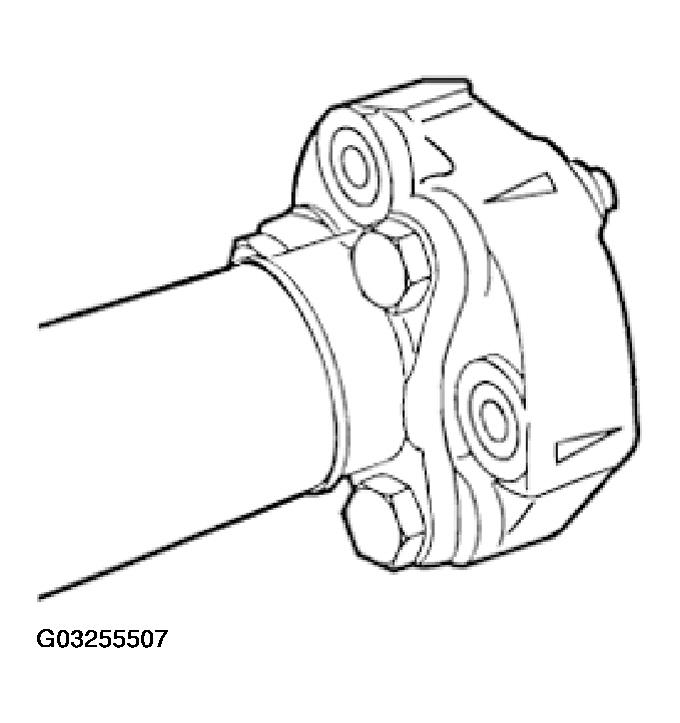

Joint disk must be fitted in such a way that arrows point to flange arms.
