18 00 020 Removing and installing complete exhaust system (M62, M54)

WARNING: This page is about a different variant/trim than selected.

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

Slacken screws (1) of rear muffler on intermediate muffler.

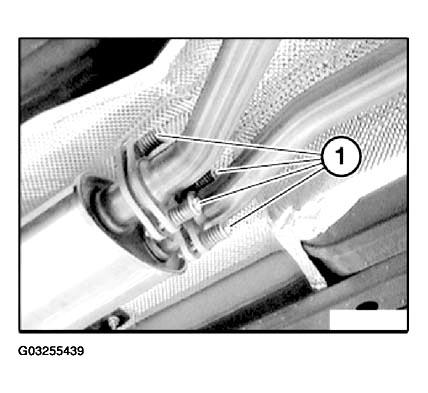

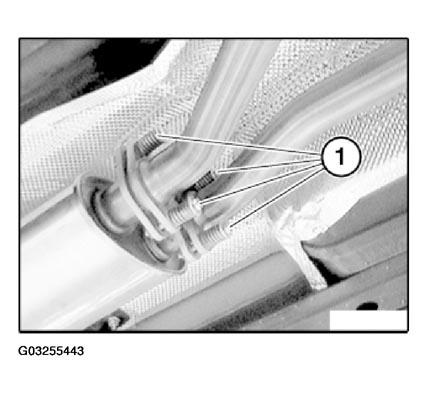

Fig 1: Removing Rear Muffler To Intermediate Muffler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, refer to 18 00 6AZ in EXHAUST SYSTEM - TIGHTENING TORQUES - X5 (4.6L) .

Clip cover (1) out of retainers (2).

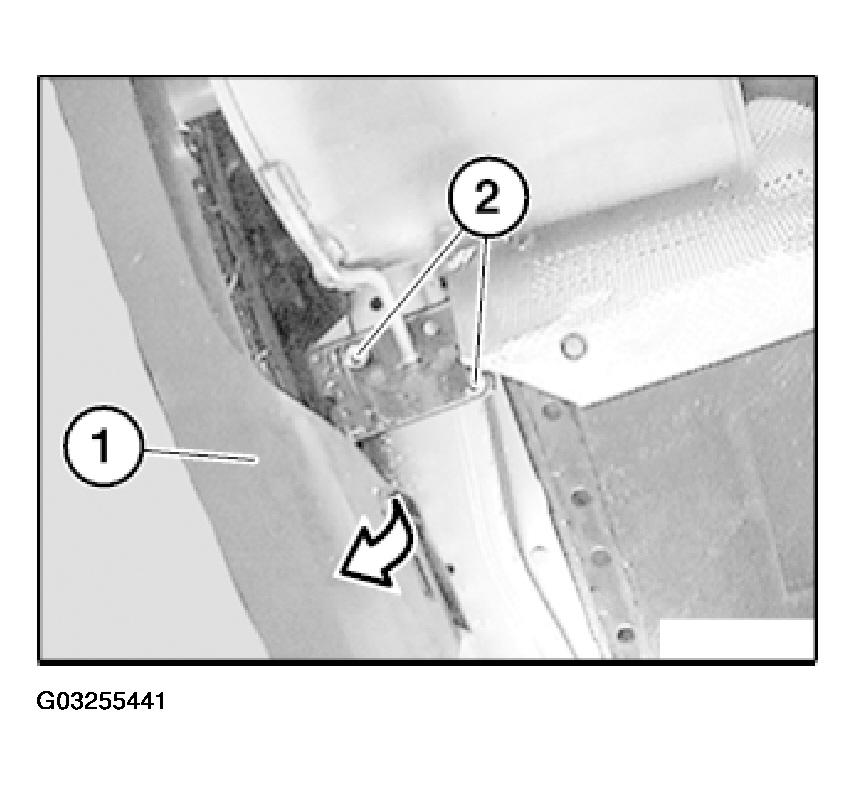

Fig 2: Removing Retainer Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully press cover (1) downwards.

Release screws (2) on rubber mount for rear muffler on left and right.

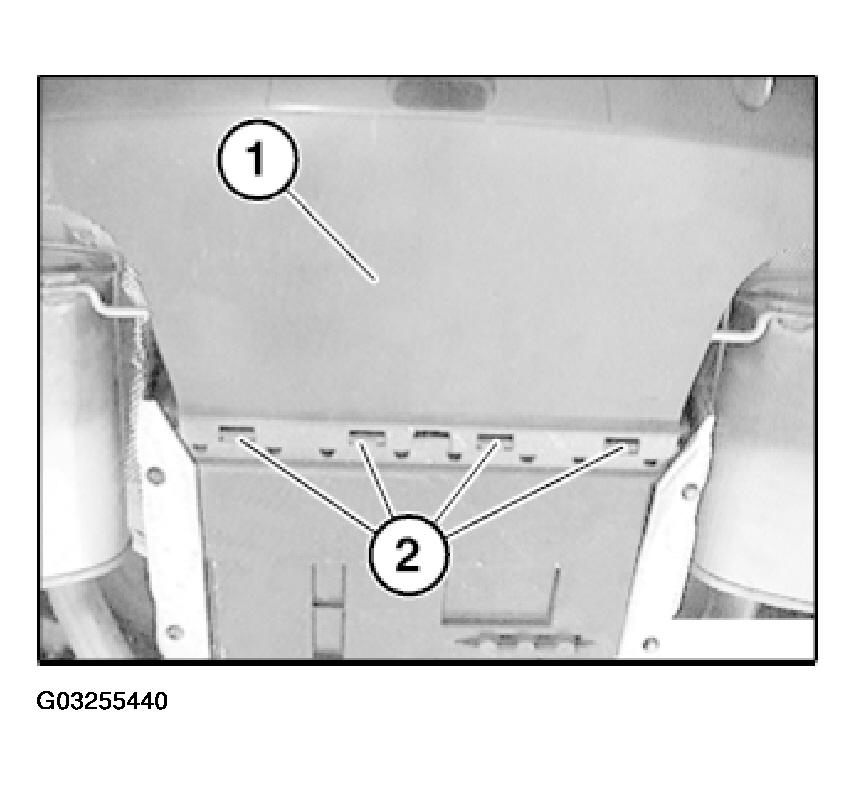

Fig 3: Releasing Rubber Mount Screws For Rear Muffler

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on rubber mount for rear muffler on rear axle carrier on left and right.

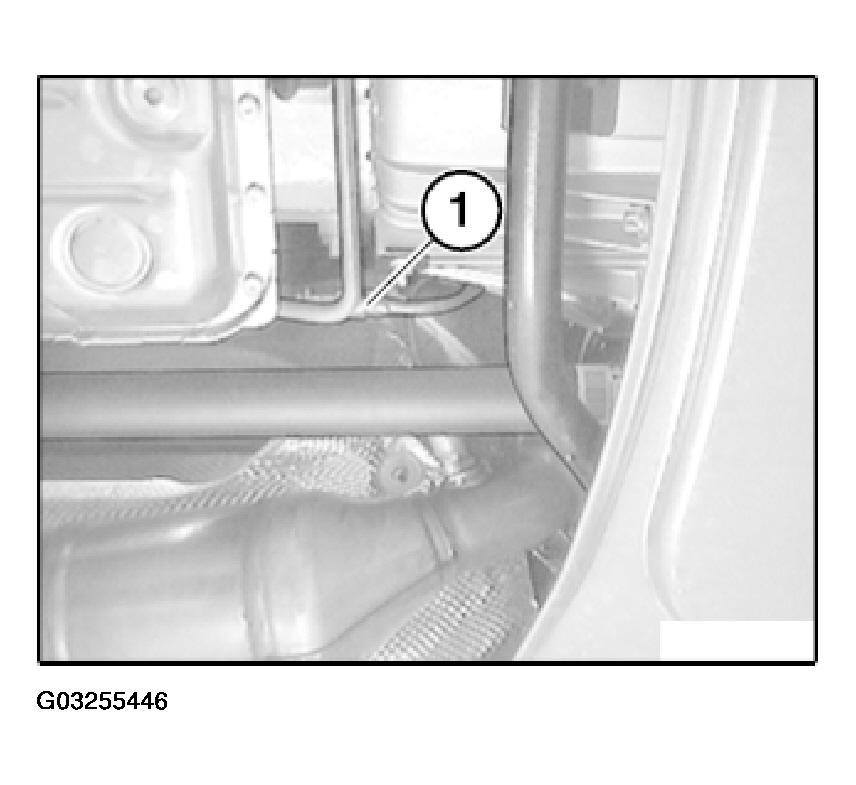

Fig 4: Releasing Rubber Mount For Rear Muffler To Rear Axle Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rubber mounts are colored differently.

Red (M62) or gray (M54): for rubber mount of rear muffler on rear axle carrier
Black: for all other rubber mounts

Mixing up the rubber mounts will alter the vibration response of the exhaust system.

Release screws (1) of rear muffler on intermediate muffler and remove both rear mufflers.

Fig 5: Removing Both Rear Mufflers

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) of rubber mounts for intermediate muffler.

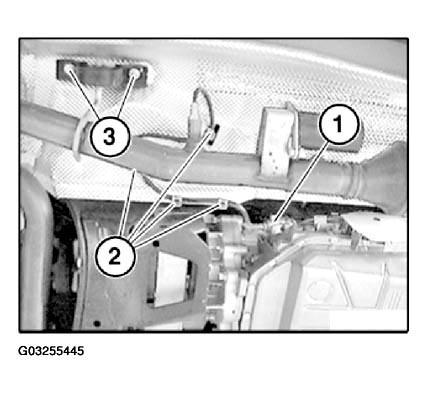

Fig 6: Releasing Intermediate Muffler Rubber Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

M62:

Release plug connection (1) of monitor sensor on left and right. Clip cable of monitor sensor on left and right out of brackets. Release screws (3) of rubber mounts on left and right.

Fig 7: Release Plug Connection Of Monitor Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release plug connection (1) of oxygen sensor on left and right.

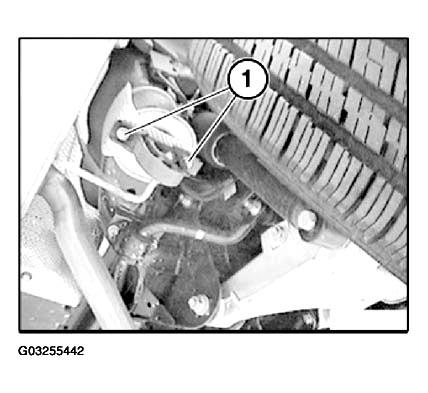

Fig 8: Releasing Plug Connection Of Oxygen Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Carry out following work step with a second person.

M62:

Release screw connections of catalytic converters at exhaust manifolds on left and right and remove exhaust system completely.

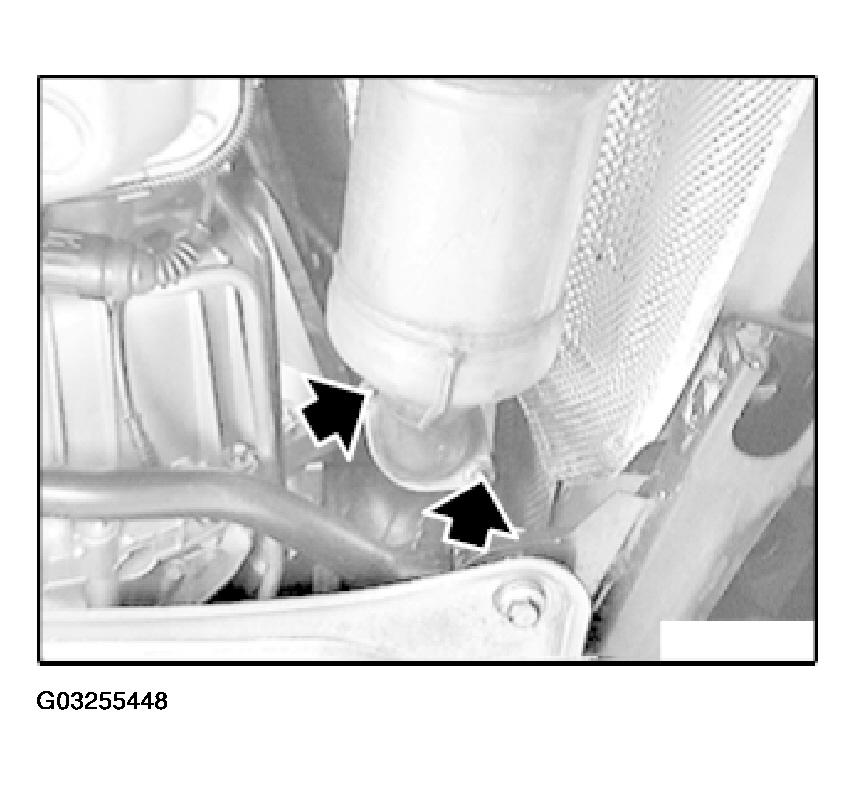

Fig 9: Removing Catalytic Converters Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace self-locking nuts.

Coat threads with CRC copper paste.
