54 10 020 Removing And Installing Mechanism For Front Glass Lid

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

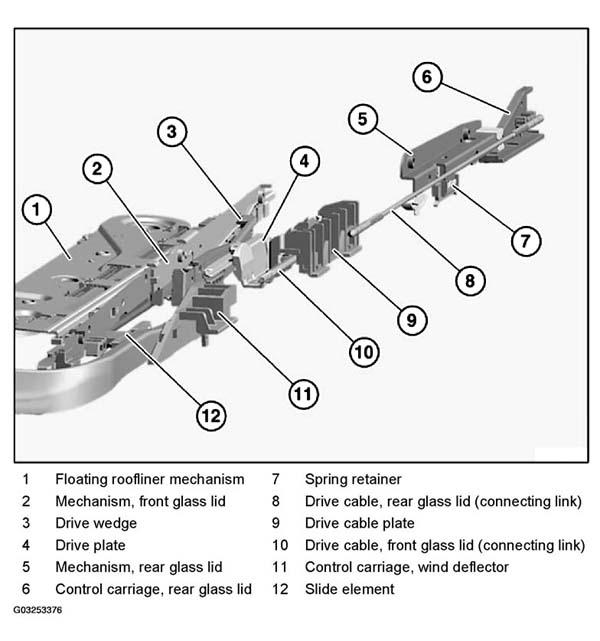

Fig 1: Overview Of Glass Lid Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Always replace mechanism for glass slide/tilt sunroof in pairs.
If necessary, lightly grease guide channel.

Removing upper connecting link (return linkage):

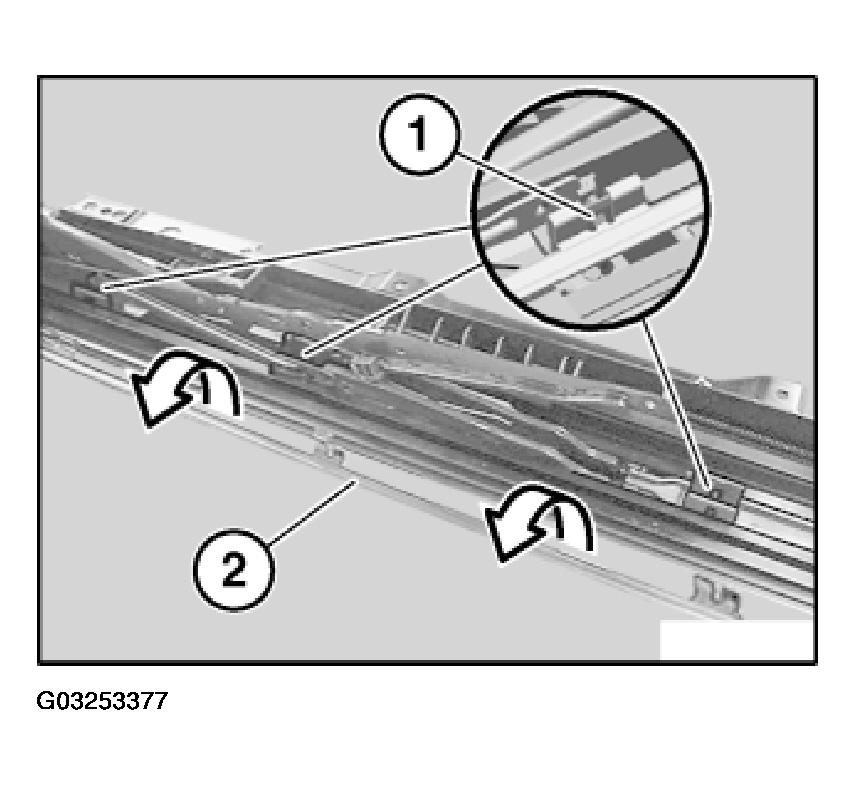

Bend open tabs (1) of cover strip (2).

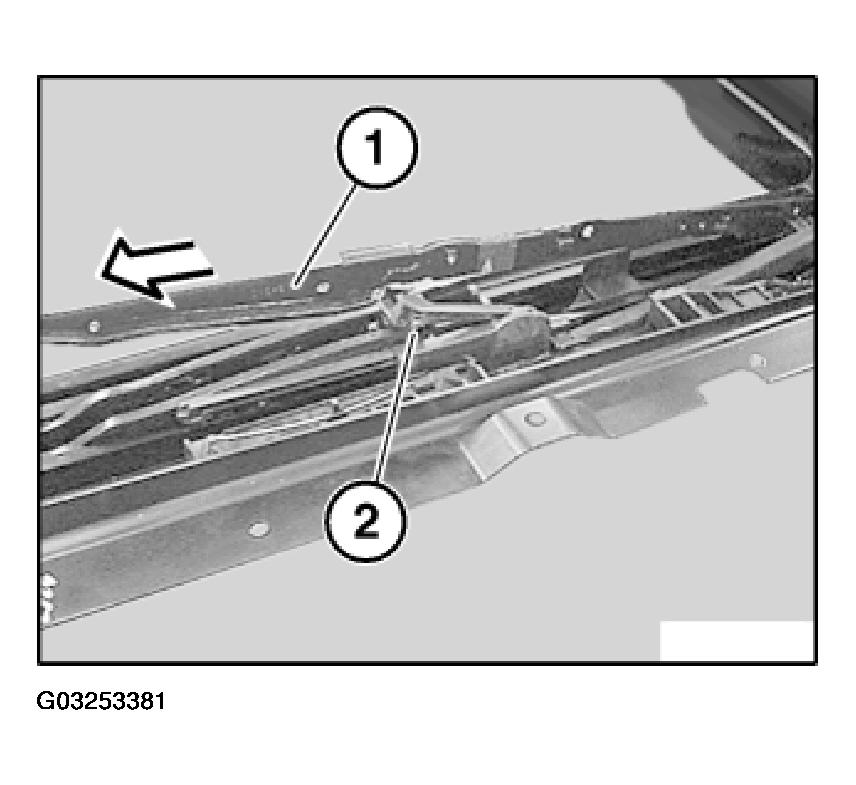

Fig 2: Removing Upper Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover strip (2).

Installation:

Cover strip determines alignment of mechanism.

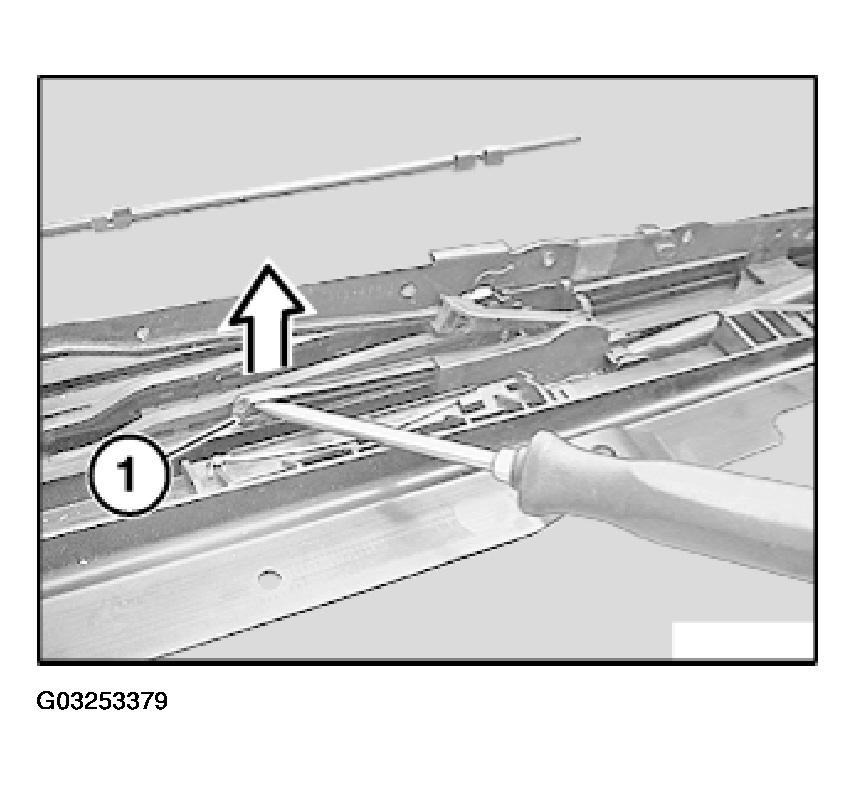

If necessary, slide drive cable plate (1) fully forwards with a screwdriver (stop).

Fig 3: Identifying Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

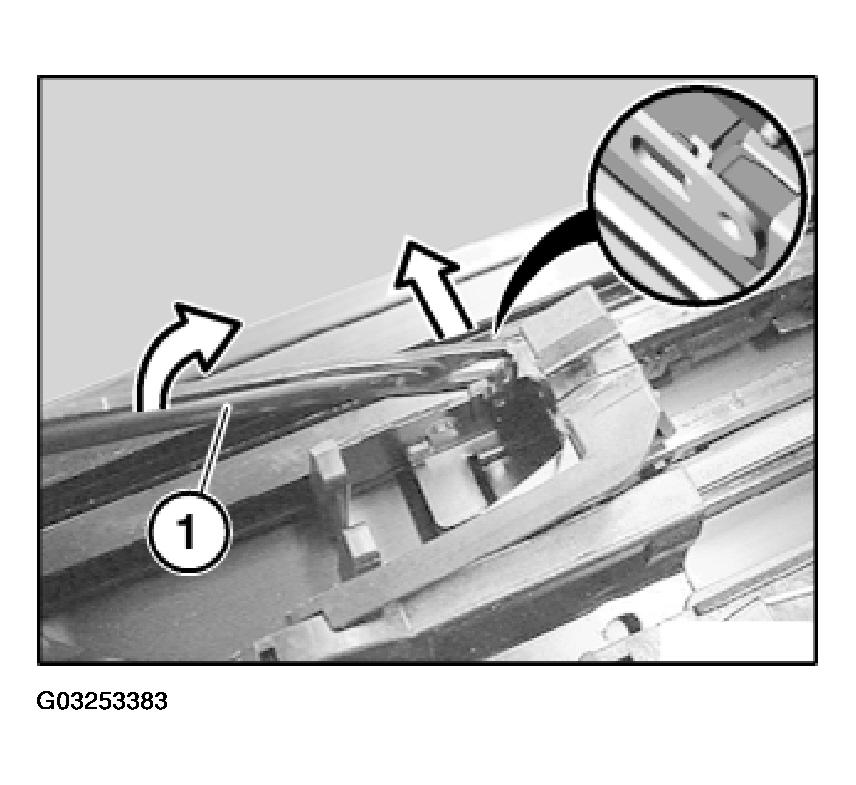

Pry out locking lever (1) of detent element at front from guide rail (unlock).

Fig 4: Prying Out Locking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not move drive cable plate before locking lever (1) is engaged (risk of damage).

Fig 5: Identifying Locking Lever

Courtesy of BMW OF NORTH AMERICA, INC.

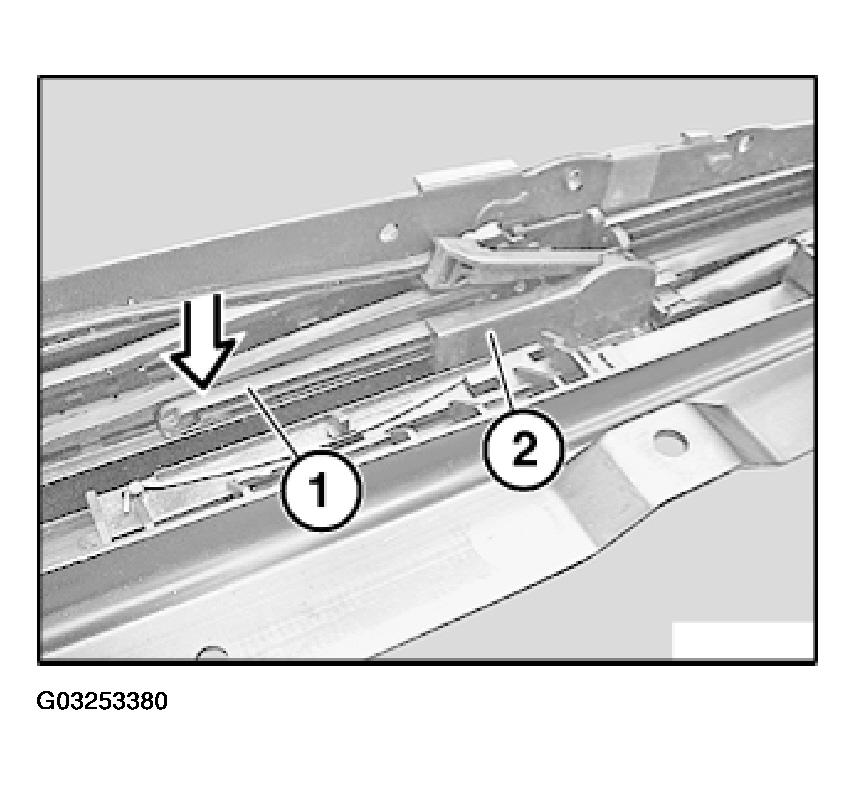

Pull upper connecting link (1) towards rear out of drive wedge (2).

Fig 6: Pulling Upper Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Feed upper connecting link (1) out of guide rail.

Fig 7: Identifying Upper Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If necessary, move mechanism (drive cable plate) approx. 2 cm towards rear. Upper detent element can be fed out and in more easily.

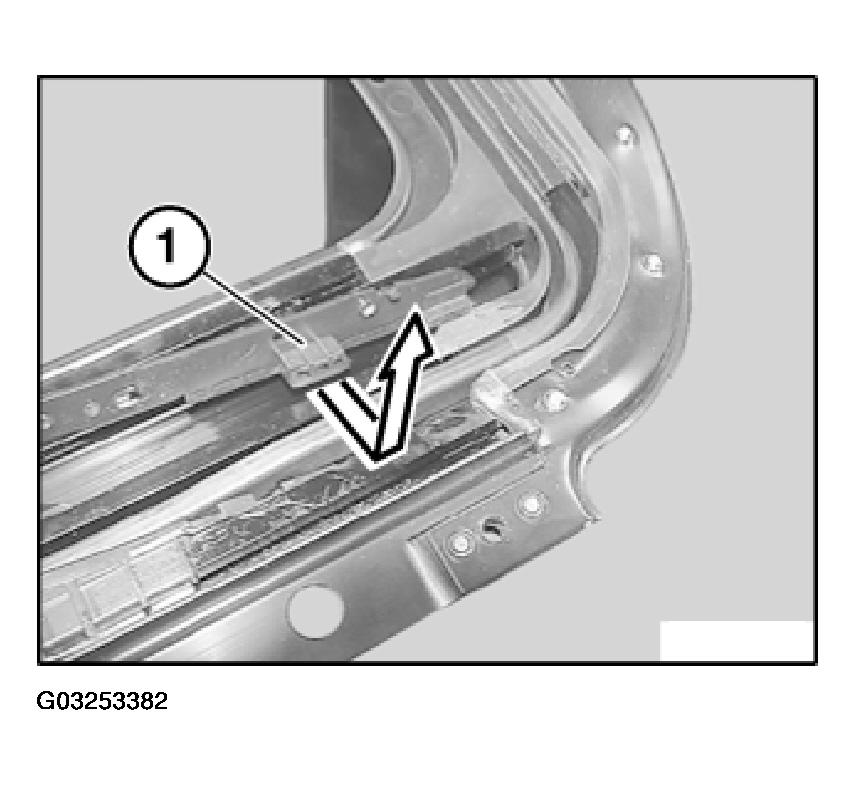

Remove upper connecting link (1) in direction of arrow from lower connecting link.

Fig 8: Removing Upper Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Removing drip molding carrier and lower connecting link:

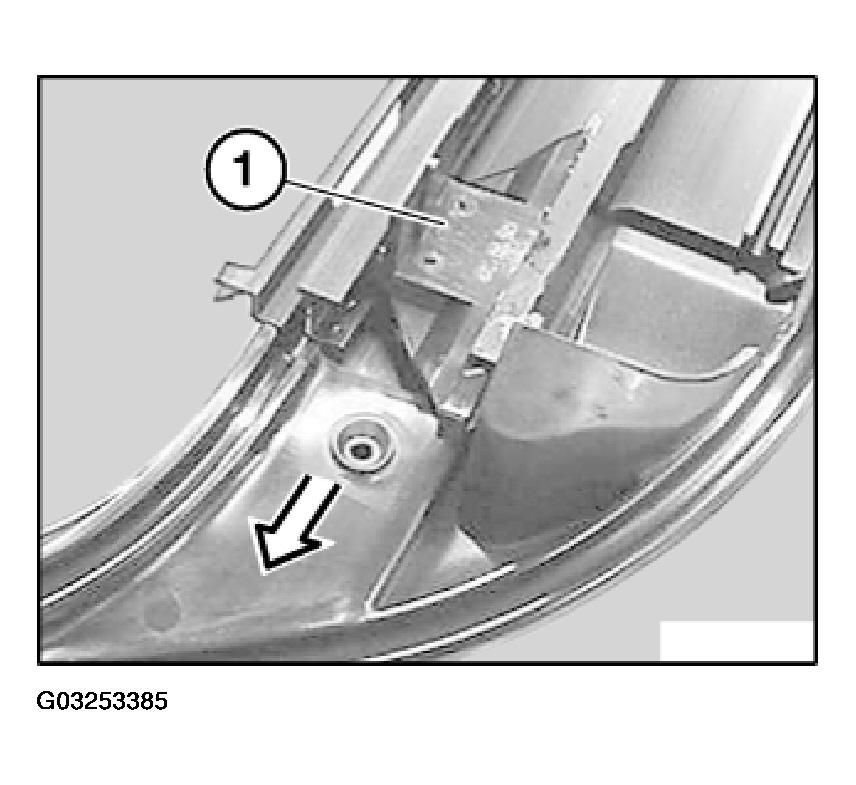

Slide drip molding carrier (2) with lower connecting link (1) towards rear and remove from guide rail.

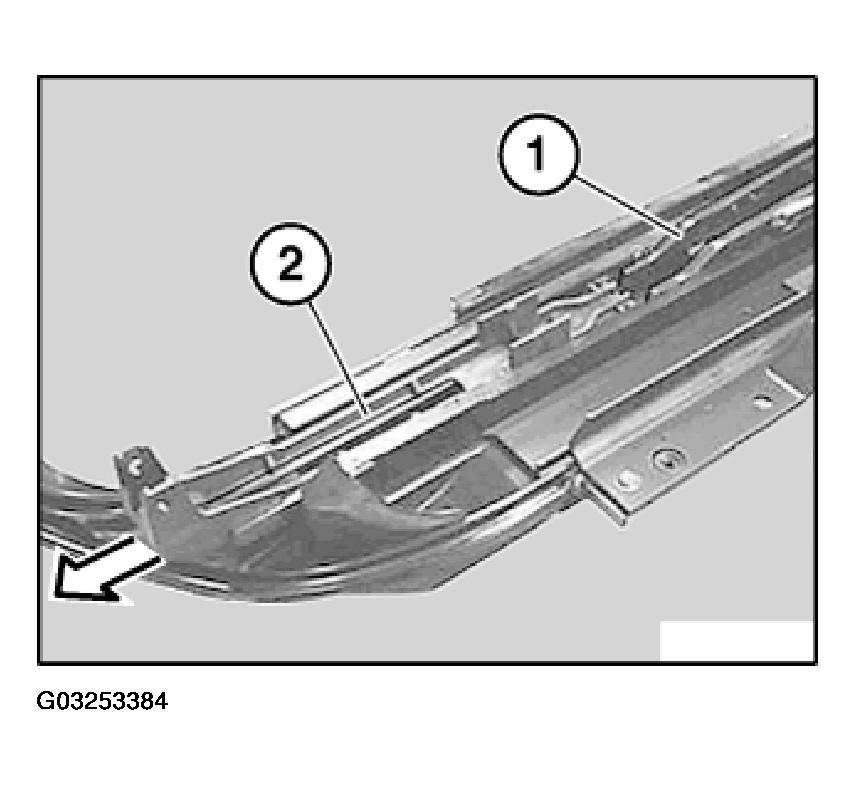

Fig 9: Removing Drip Molding Carrier And Lower Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

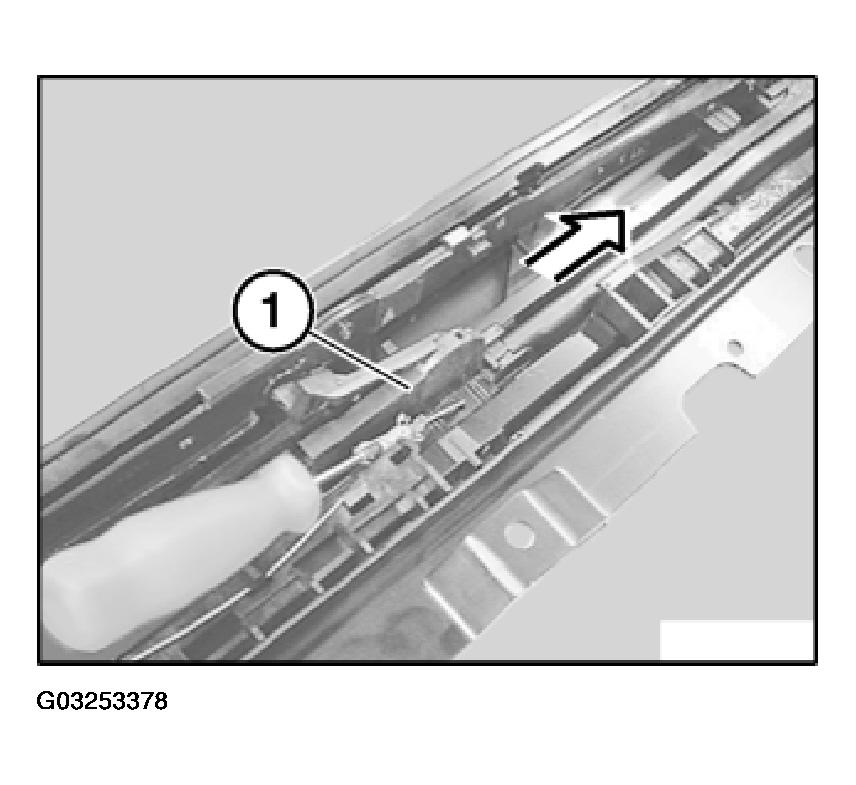

If necessary, push slide element (1) towards rear and remove from guide rail.

Fig 10: Removing Push Slide Element

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting mechanism before installing glass lid:

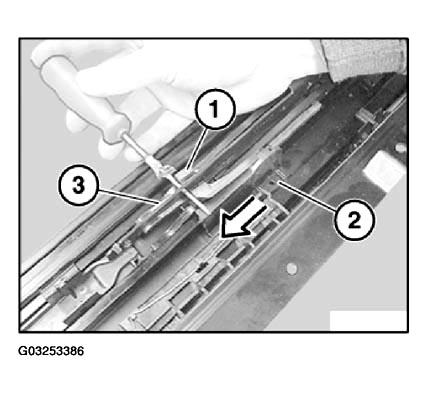

Insert screwdriver into upper connecting link (3).

Fig 11: Inserting Screwdriver Into Upper Connecting Link

Courtesy of BMW OF NORTH AMERICA, INC.

Slide drive plate (2) towards rear until drive wedge (1) runs against screwdriver.

NOTE: Check that mechanical components on left and right sides have same status.

NOTE: Check smooth and noise-free running of kinematics.
Check function.
