54 13 100 Removing And Installing / Replacing Drip Molding

Necessary preliminary tasks:

• Remove complete glass slide/tilt sunroof, refer to 54 13 080 REMOVING AND INSTALLING COMPLETE GLASS SLIDE/TILT SUNROOF
• Remove glass slide/tilt sunroof lid at rear, refer to 54 10 175 REMOVING AND INSTALLING REAR GLASS SLIDE / TILT SUNROOF COVER
• Remove glass slide/tilt sunroof lid at front, refer to 54 10 170 REMOVING AND INSTALLING FRONT GLASS SLIDE/TILT SUNROOF COVER

Reposition drip molding (1) and carefully unclip upwards out of carrier (2).

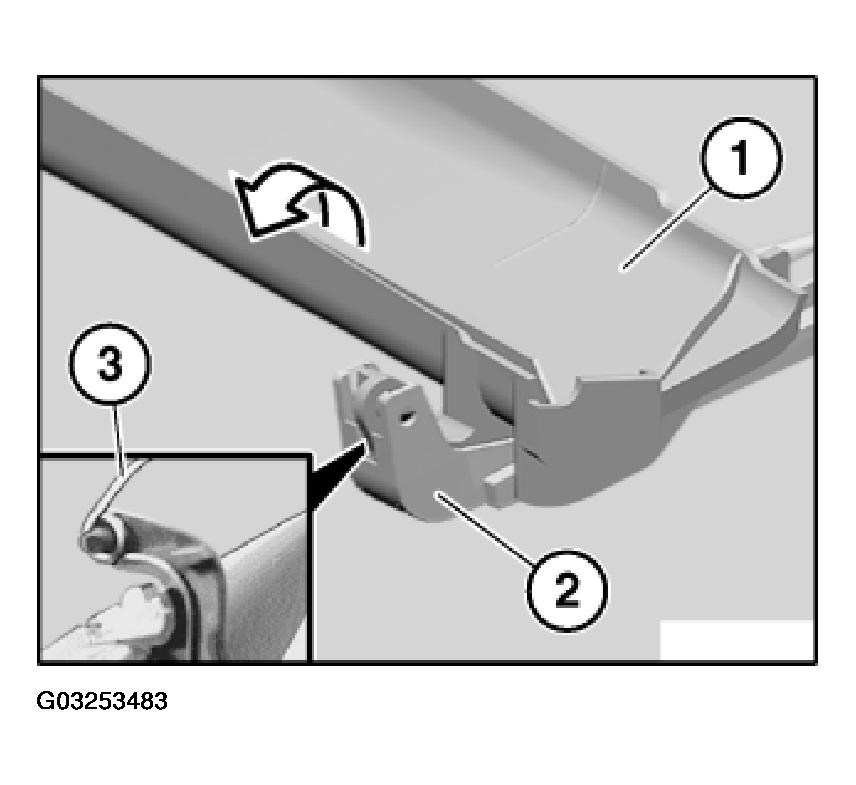

Fig 1: Identifying Drip Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach spring (3) to drip molding pivot point.

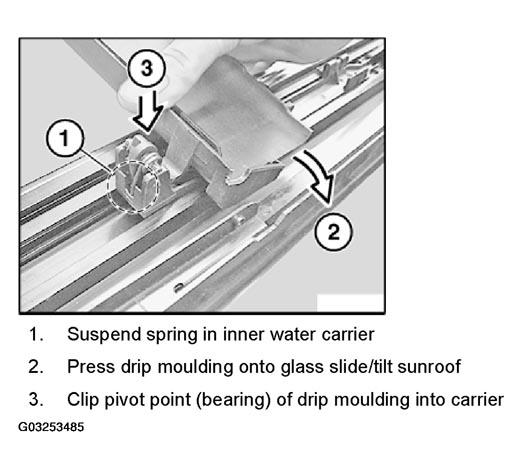

Fig 2: Attaching Spring To Drip Molding Pivot Point

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure spring is correctly positioned in drip molding.

Installation:

Observe installation sequence:

1. Suspend spring in inner water carrier
2. Press drip molding onto glass slide/tilt sunroof
3. Clip pivot point (bearing) of drip molding into carrier

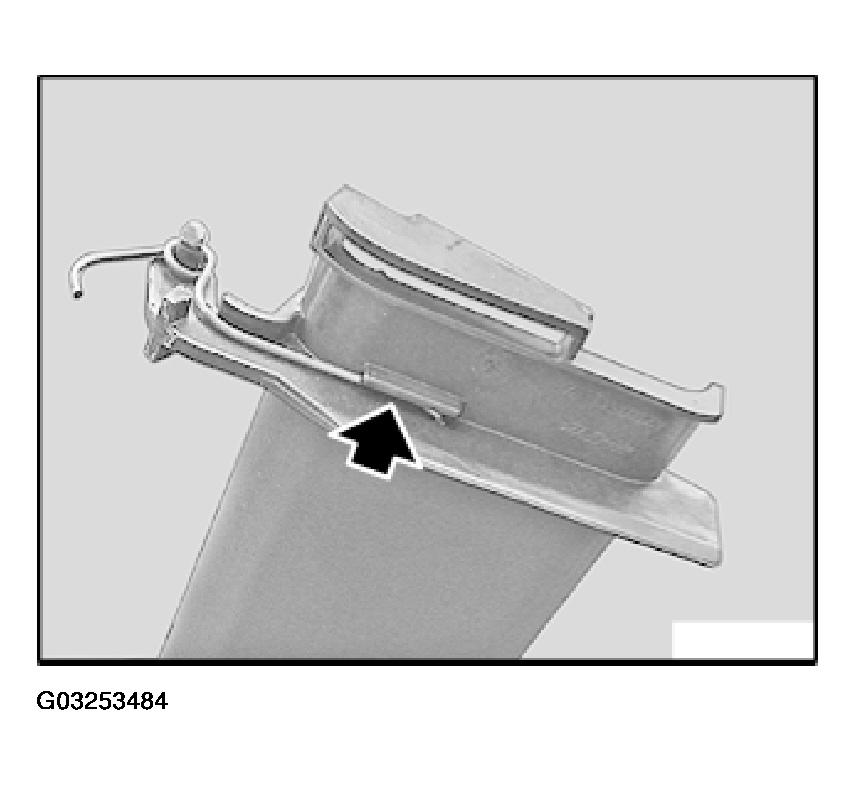

Fig 3: Locating Drip Molding Components

Courtesy of BMW OF NORTH AMERICA, INC.

Check drip molding for spring tension.
