54 10 ... Removing and installing / replacing drive cable plate

Necessary preliminary tasks:

• Remove mechanism for glass cover at front, refer to 54 10 020 REMOVING AND INSTALLING MECHANISM FOR FRONT GLASS LID
• Remove drive unit, refer to 67 61 515 REPLACING DRIVE WITH GEAR (FRONT) FOR ACTUATING SLIDE/TILT SUNROOF (PANORAMA GLASS SUNROOF)

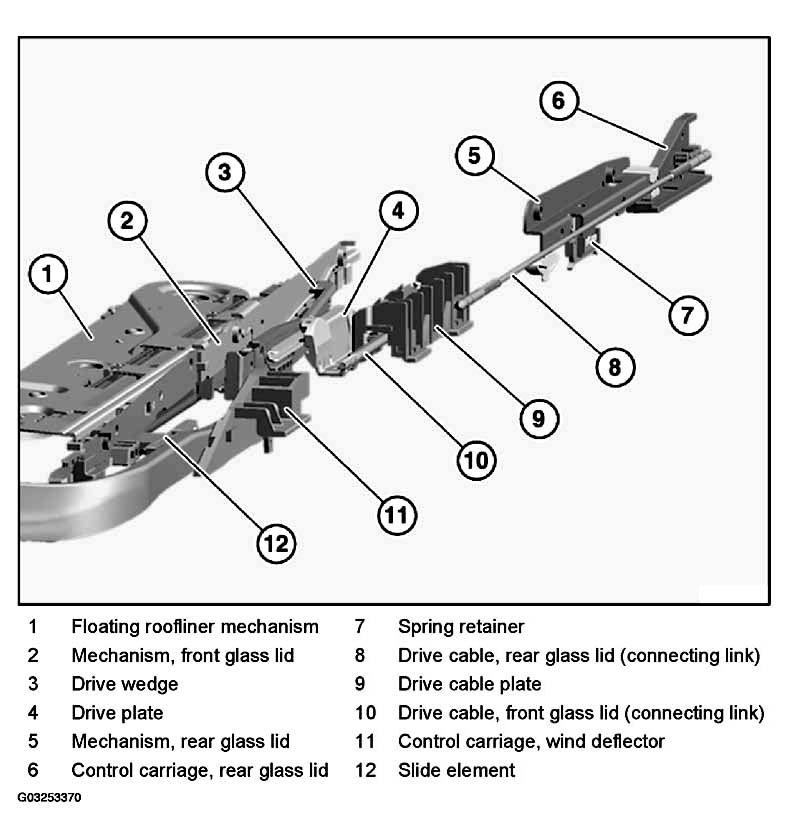

Fig 1: Overview Of Glass Lid Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove drive wedge (1).

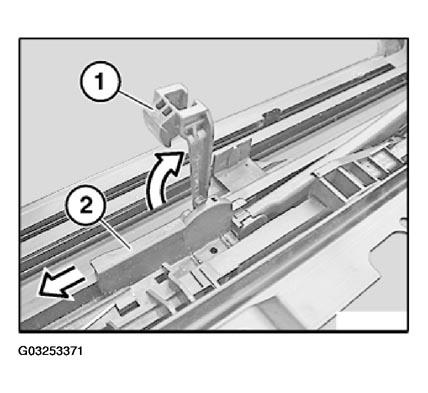

Fig 2: Removing Drive Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, slide drive cable plate (2) towards rear and remove from guide rail.

The rear drive cable plate (2) must be engaged before the front drive cable plate (1) is installed.

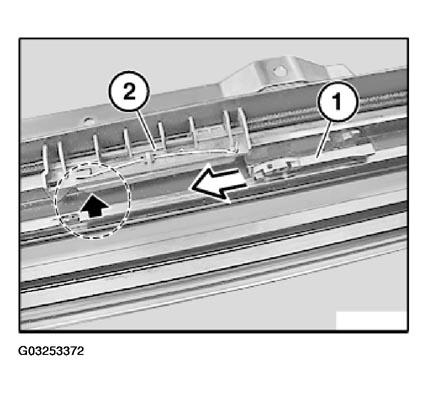

Fig 3: Checking Engagement Of Rear Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect setting can be identified from spring position and lever position (marked area).

Check engagement of rear drive cable plate (2) in guide rail.

Slide in drive cable plate (1).
