54 12 132 Removing and installing/replacing headliner for sun-roof lid

Installation:

If necessary, apply light coat of Renax GL1 (Fuchs) grease to guide duct.

Remove sun-roof lid, refer to 54 12 115 REMOVING AND INSTALLING GLASS SLIDING/TILTING SUNROOF LID

The mechanism must be lowered at the back by dimension (A).

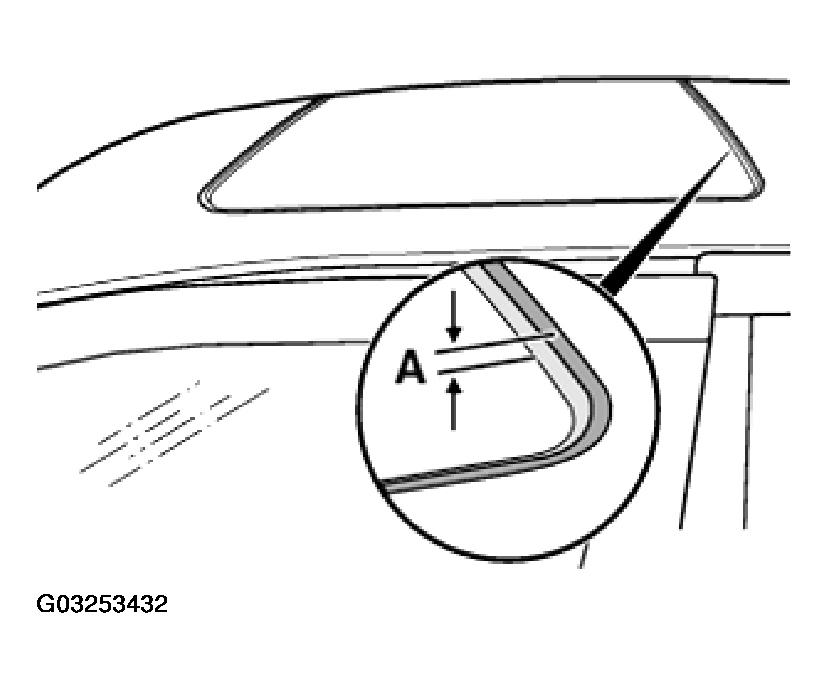

Fig 1: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lower as with the installed slide/tilt sunroof cover.

Distance (A) = 2 to 3 mm

Pull headliner slowly forwards (with clean hands or wearing protective gloves).

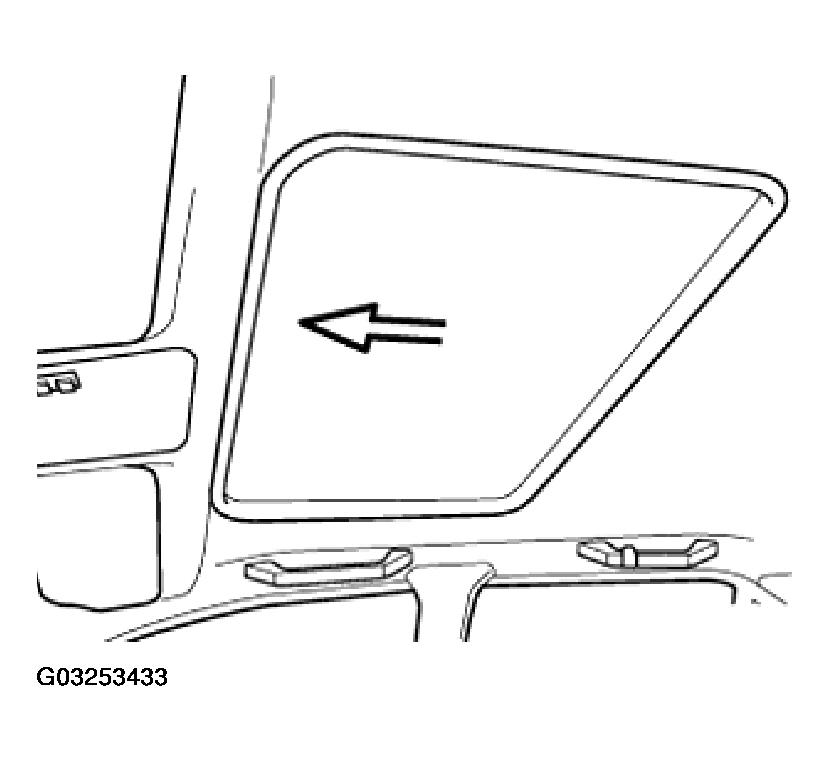

Fig 2: Pulling Headliner

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten left/right Torx screws and pull headliner forwards/upwards to remove.

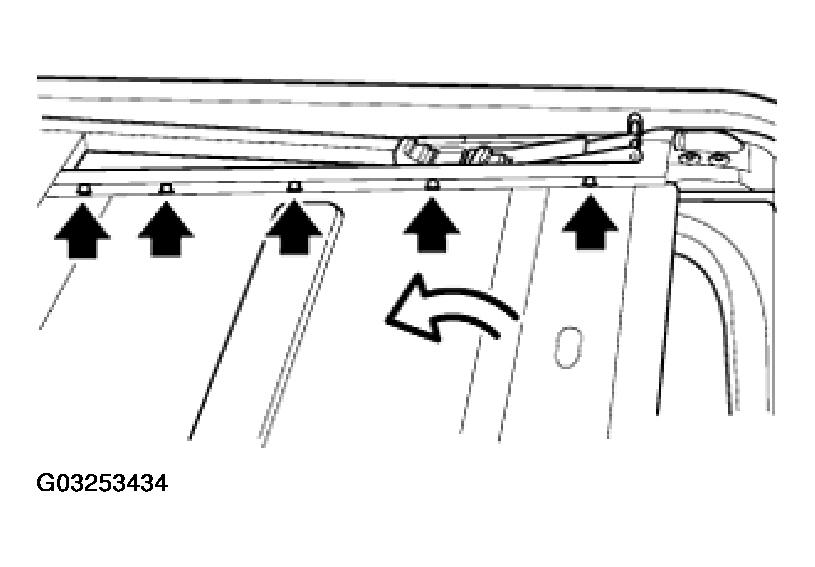

Fig 3: Removing Headliner

Courtesy of BMW OF NORTH AMERICA, INC.
