54 12 115 Removing And Installing Glass Sliding/Tilting Sunroof Lid

WARNING: This page is about a different variant/trim than selected.

Special tools required:

00 2 130
00 9 250

Removal:

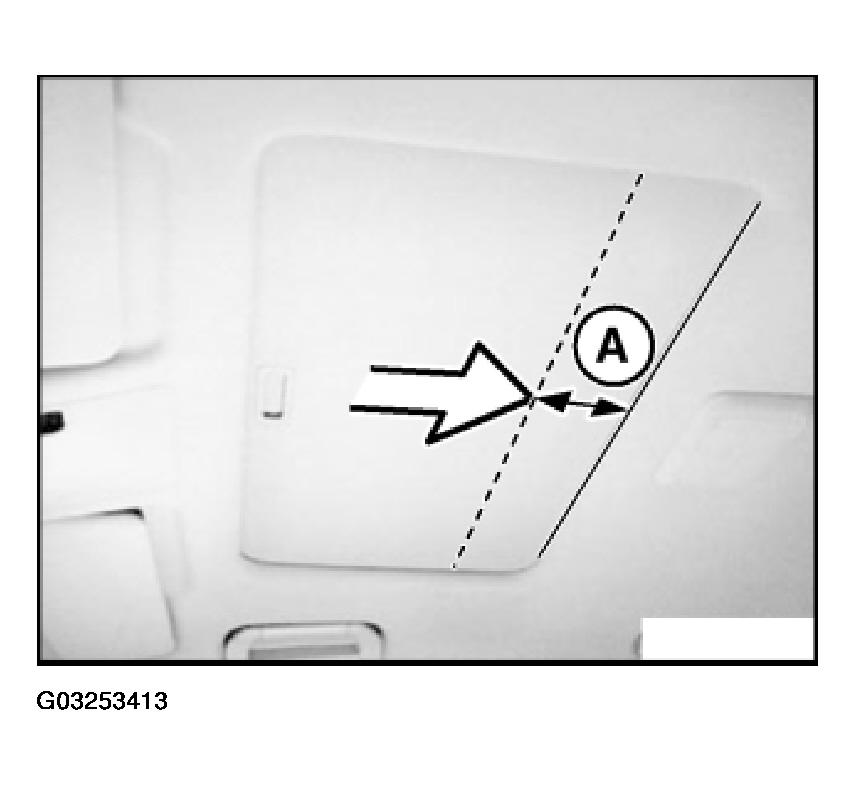

Slowly slide roof-lining frame towards rear up to dimension (A).

Fig 1: Identifying Dimension A

Courtesy of BMW OF NORTH AMERICA, INC.

DIMENSION A

A	E38	80 mm
	E39, E53	70 mm

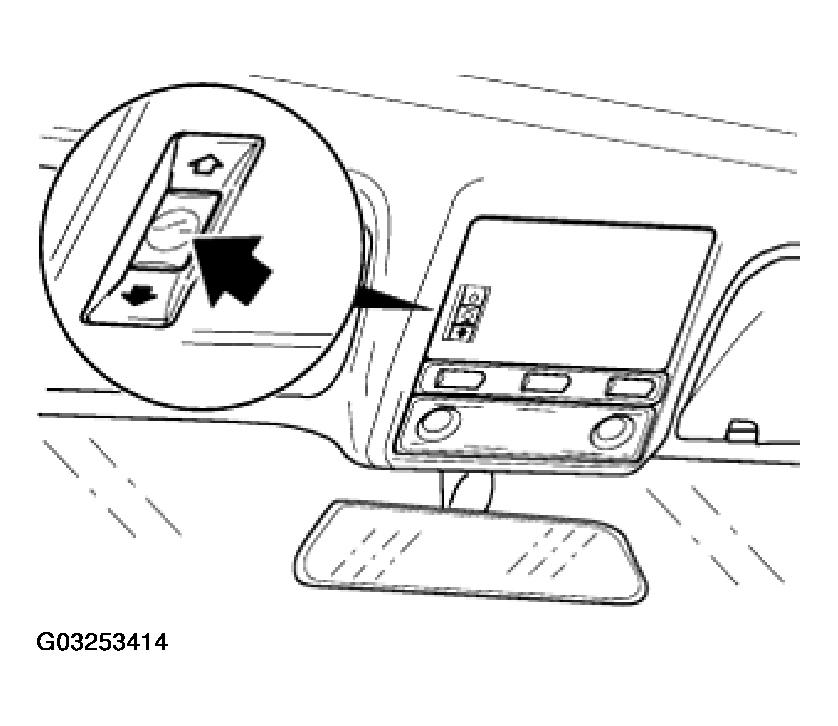

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

Fig 2: Pressing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

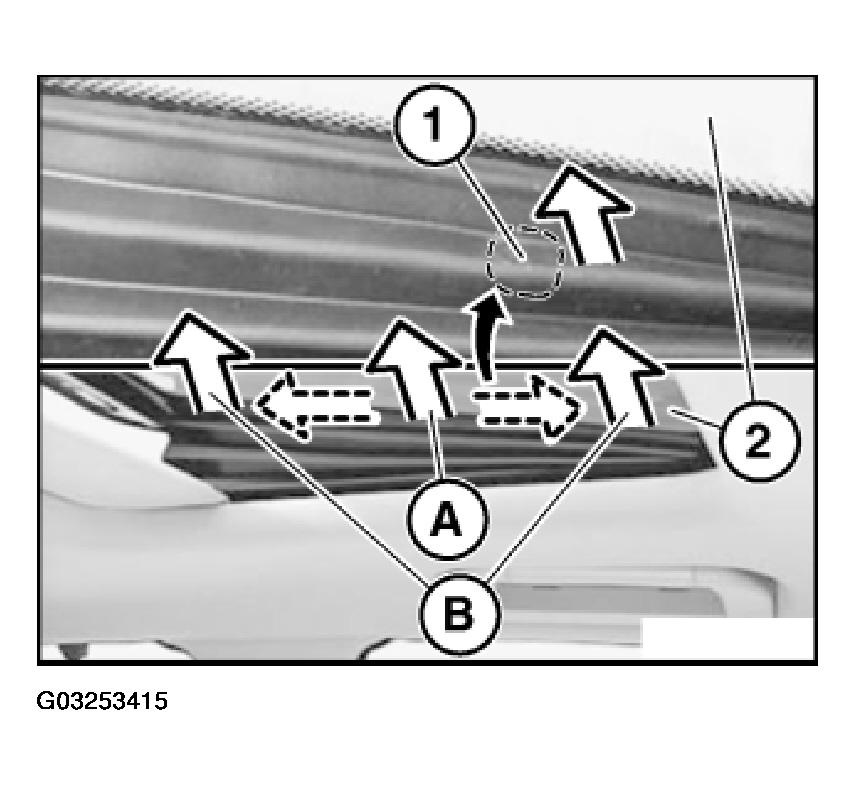

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

Fig 3: Detaching Bellows

Courtesy of BMW OF NORTH AMERICA, INC.

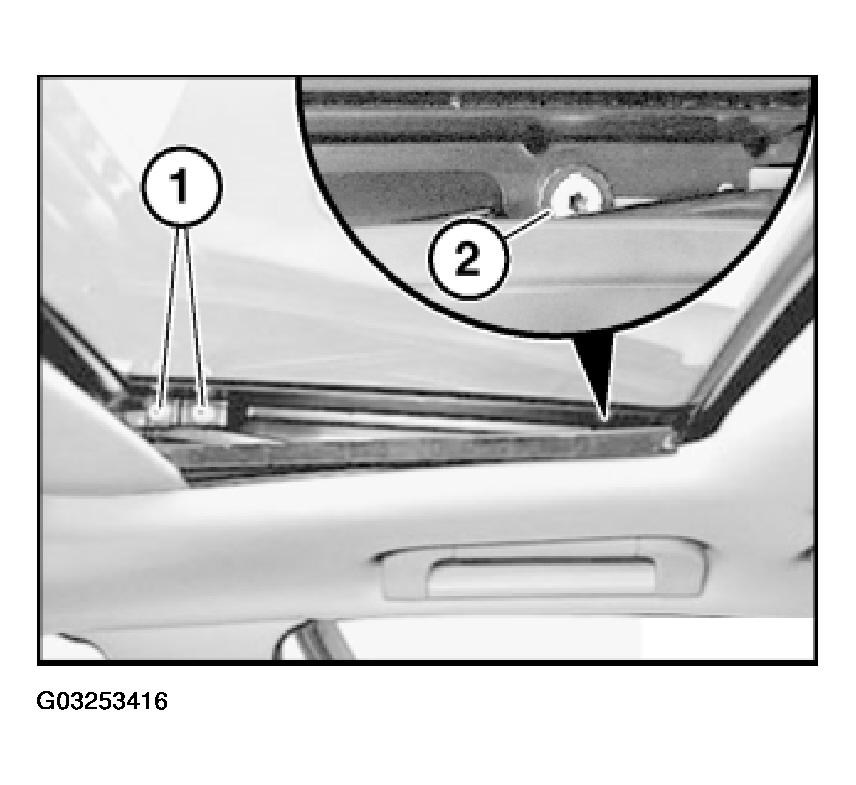

Release screws (1) and (2) with special tool 00 2 130.

Fig 4: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace removed screws (microencapsulation) or install old screws with Loctite 270 (Sourcing Reference: BMW Parts Service).

Tighten down screws with special tool 00 9 250.

Tightening torque 54 12 2AZ. Refer to SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .

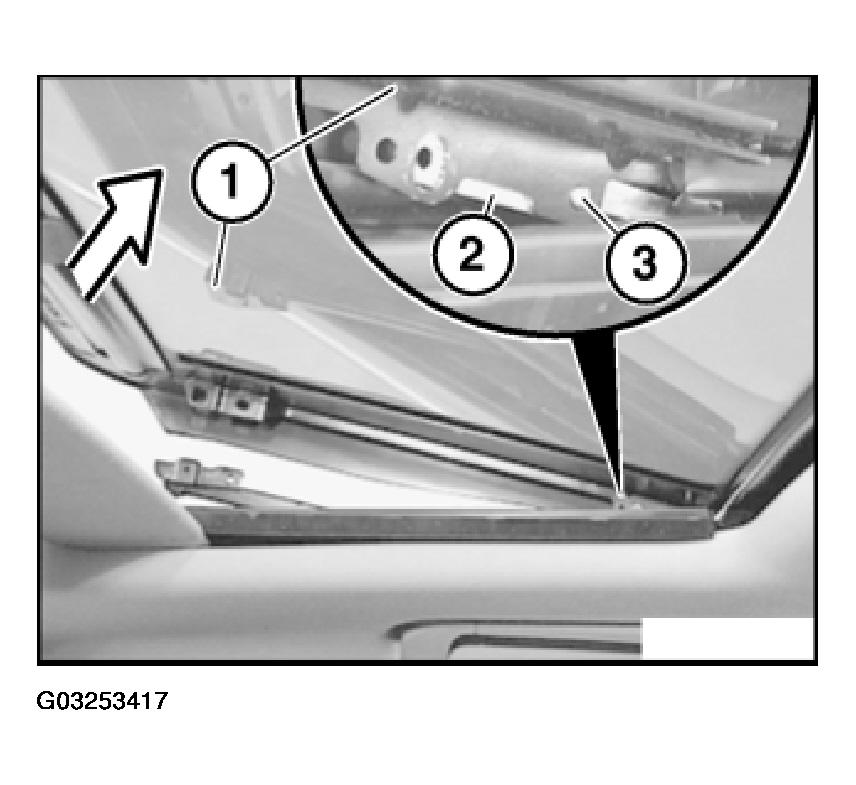

Raise glass slide/tilt sunroof lid (1) at rear until setting lever (2) can be levered out of retaining pin (3) of lid (1).

Fig 5: Raising Glass Slide/Tilt Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place glass sunroof lid on a clean base/support.

Setting lever with retaining screw:

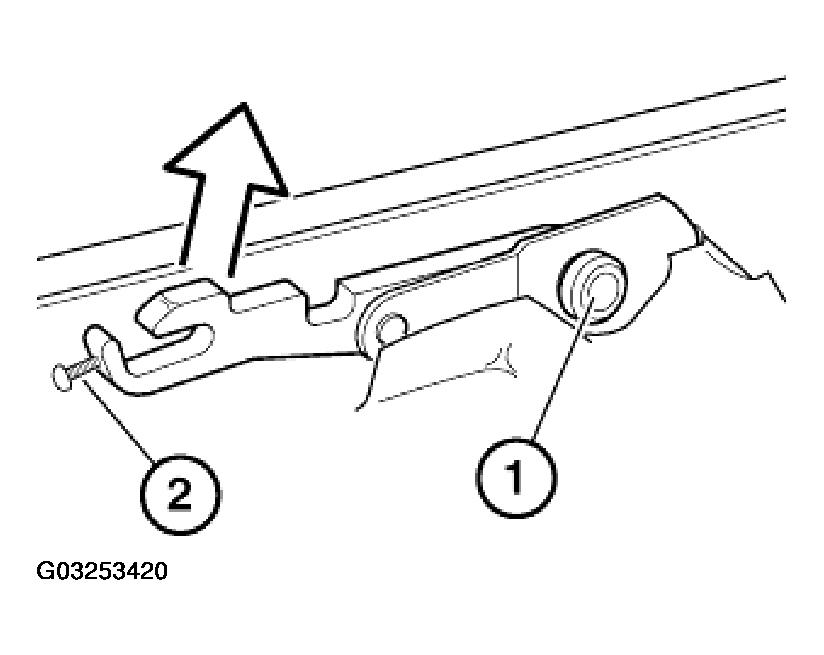

Release retaining screw (1) until assembly opening is free.

Fig 6: Releasing Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Raise setting lever (2) and unhook from slide (3).

Setting lever without retaining screw:

Inspect to see whether a retaining spring is present.

Press retaining spring at front downwards, raise setting lever (2) and unhook from sliding rail (3).

Installation:

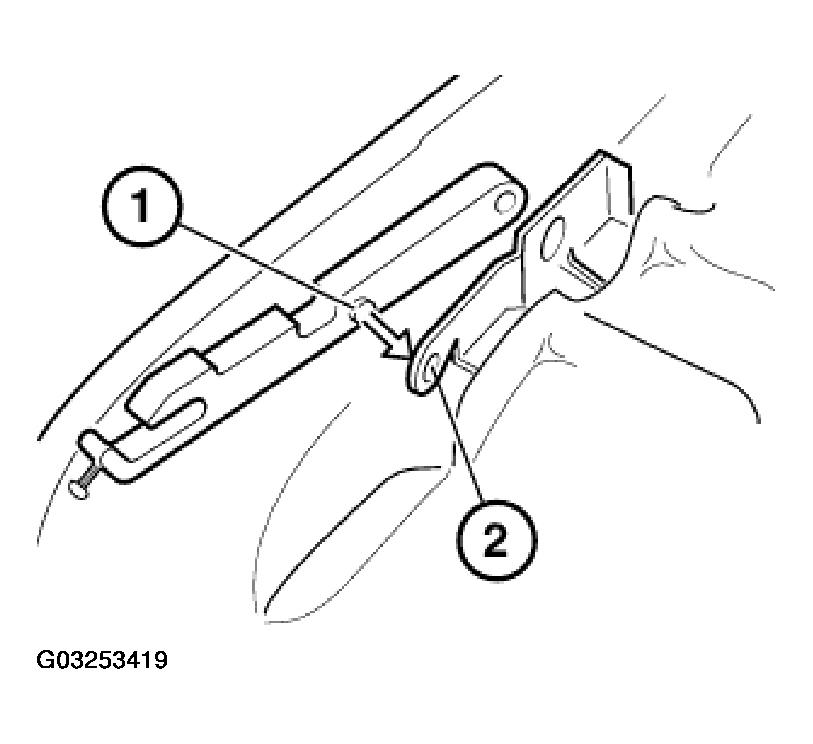

Install setting lever on left/right on glass sunroof lid. Retaining pin (1) must locate correctly in bore (2).

Fig 7: Installing Setting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Note designation on right (R) or left (L) setting lever.

Replace screws (1) (microencapsulation) or refit old screws with Loctite 270.

Fig 8: Releasing Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Raise setting lever and insert screws (1) as far as they will go (do not tighten).

Setting lever with retaining screw:

Release retaining screw (2) until assembly opening is free.

Coat protruding thread with Loctite 270.

NOTE: Hardening of Loctite 270 takes about 30 minutes.

Setting lever with and without retaining screw:

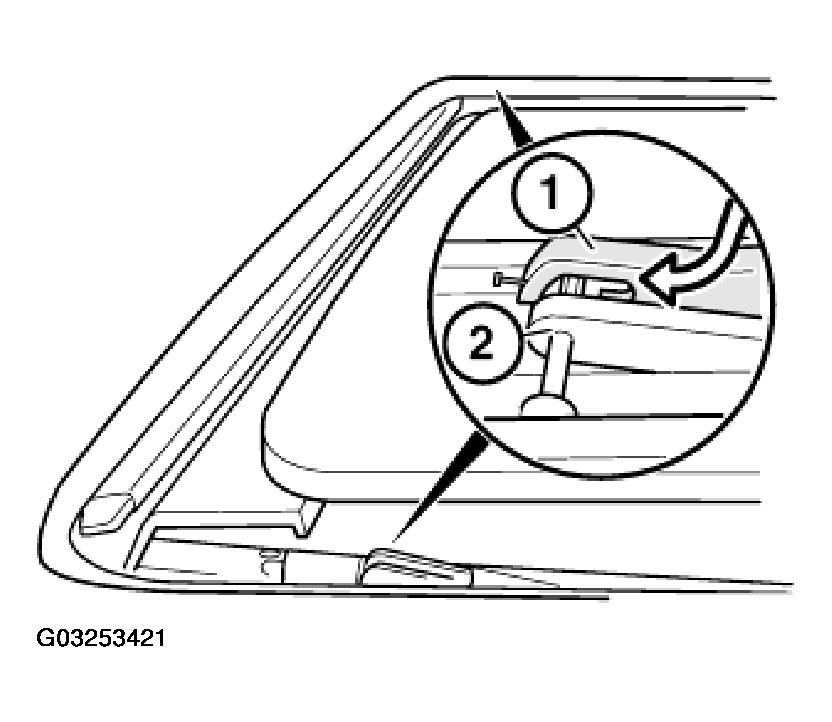

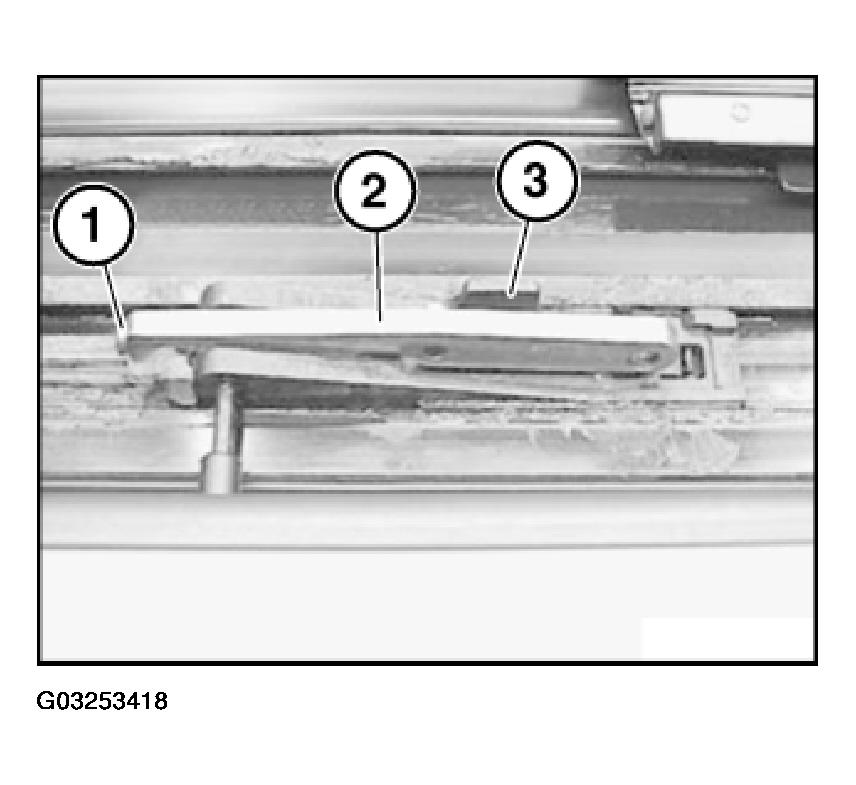

Install glass slide/tilt sunroof lid; in so doing, hook setting lever (1) at front correctly into sliding rail (2).

Fig 9: Identifying Setting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Check that glass sunroof lid is securely seated.
Press glass sunroof lid at front on left/right with ball of thumb from bottom to top.
The glass sunroof lid must not be able to be raised.

Setting lever with retaining screw:

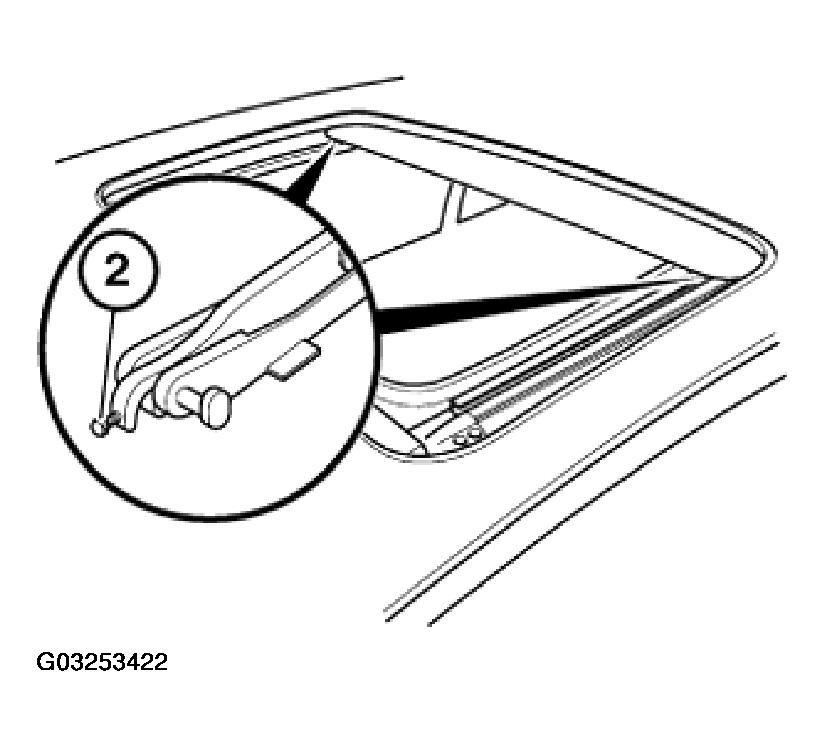

Open glass sunroof lid approx. 250 mm.

Fig 10: Setting Lever With Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully press glass sunroof lid upwards and screw in and tighten down securing screws (2) on left/right completely.

Setting lever without retaining screw:

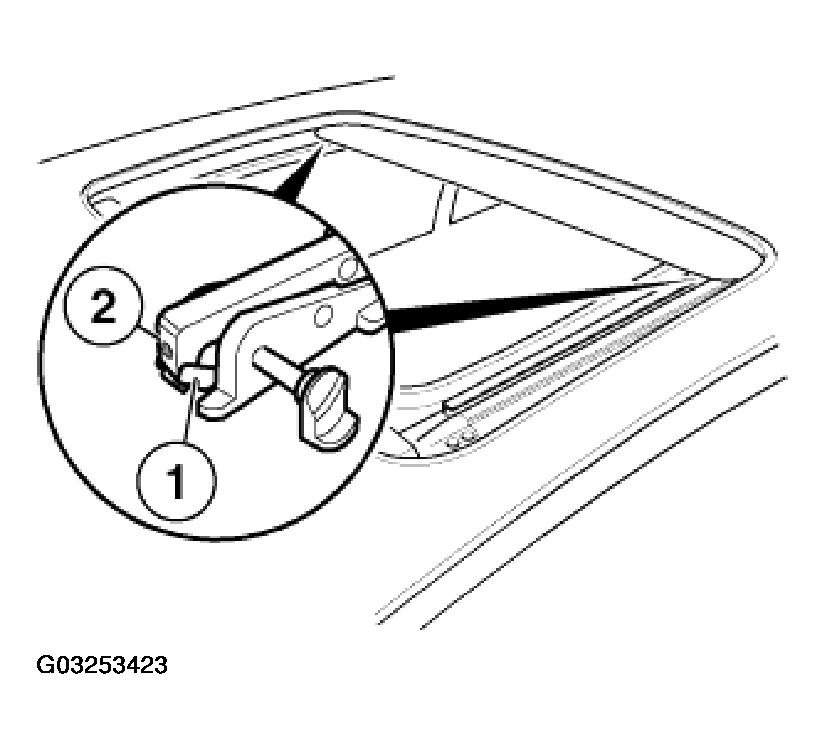

If setting levers with retaining screws (1) are fitted, do not install any retaining screws in thread (2).

Fig 11: Setting Lever Without Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure retaining spring (1) is correctly seated.

Adjusting glass slide/tilt sunroof lid. Refer to 54 12 003 ADJUSTING GLASS SLIDING/TILTING SUNROOF LID .
