54 12 003 Adjusting Glass Sliding/Tilting Sunroof Lid

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Ideal adjustment: Gaps (A) between sunroof and front and back of roof of equal size.

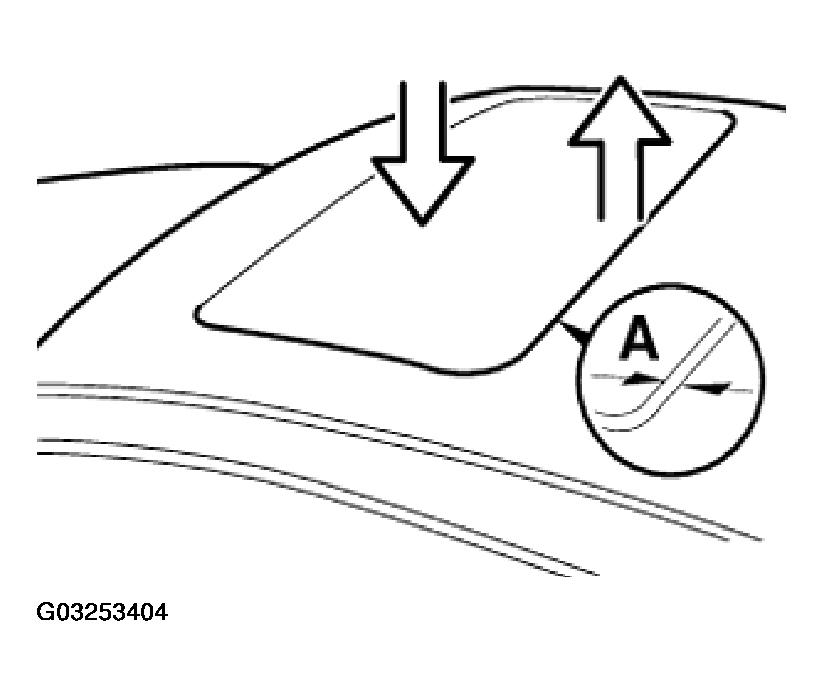

Fig 1: Adjusting Glass Sliding/Tilting Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 00 9 340 between seal and lid. Checks (sliding out and in) must show special tool to display uniform resistance.

SUNROOF GAP SPECIFICATIONS

Height	front	flush or up to 1 mm lower
	rear	flush up to 1 mm higher

Slowly slide roof-lining frame towards rear up to dimension (A).

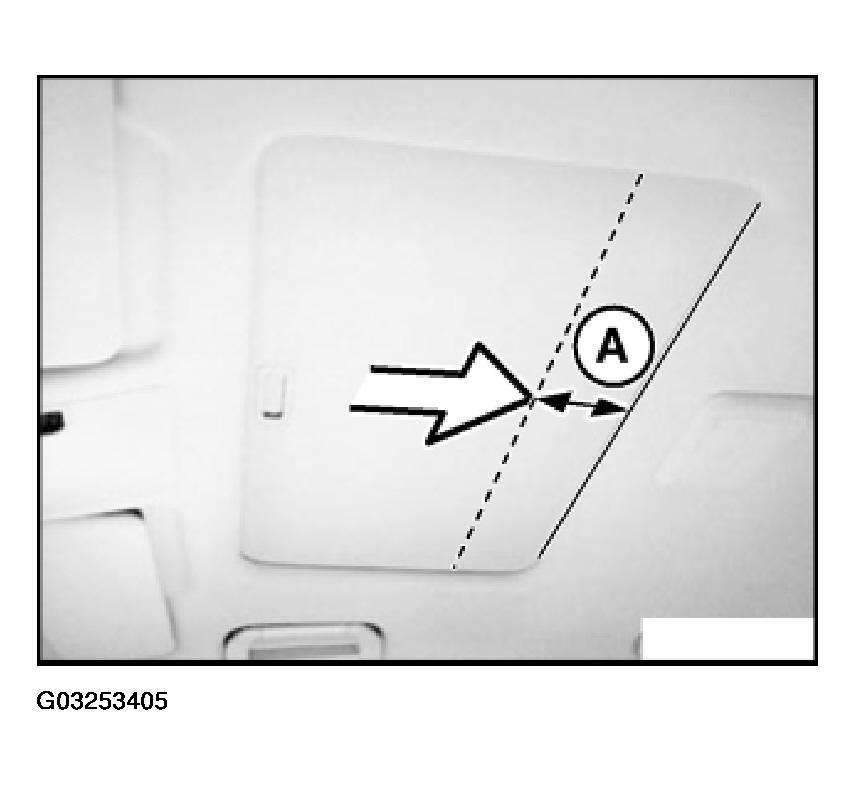

Fig 2: Sliding Roof-Lining Frame

Courtesy of BMW OF NORTH AMERICA, INC.

DIMENSION A SPECIFICATIONS

(A)	E38	80 mm
	E39,	E53 70 mm

Press switch in direction of "raise position" (fan setting) until lid is raised to max. setting.

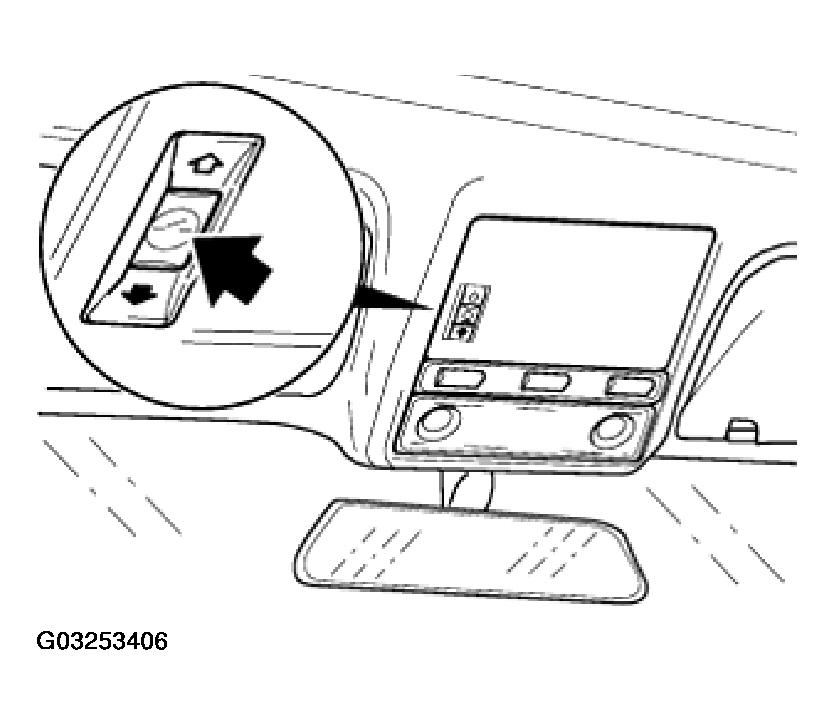

Fig 3: Pressing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Grasp the bellows by hand only at the first fold (1) (risk of damage).

Detach bellows starting from center (A) towards front and rear (B) from glass slide/tilt sunroof lid (2).

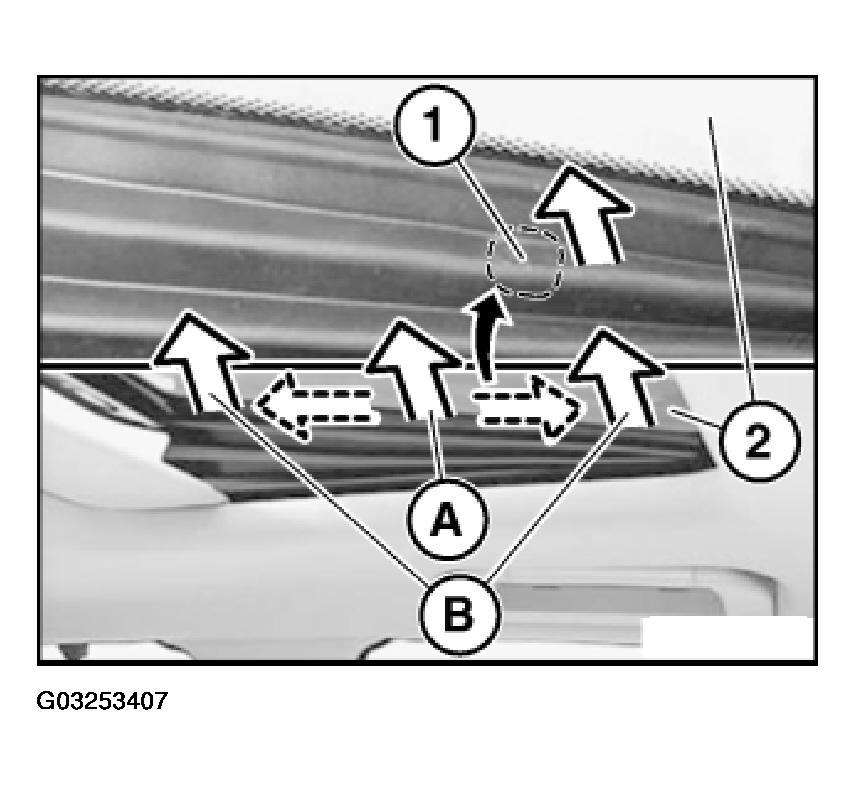

Fig 4: Detaching Bellows

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1) and (2) with special tool 00 2 130.

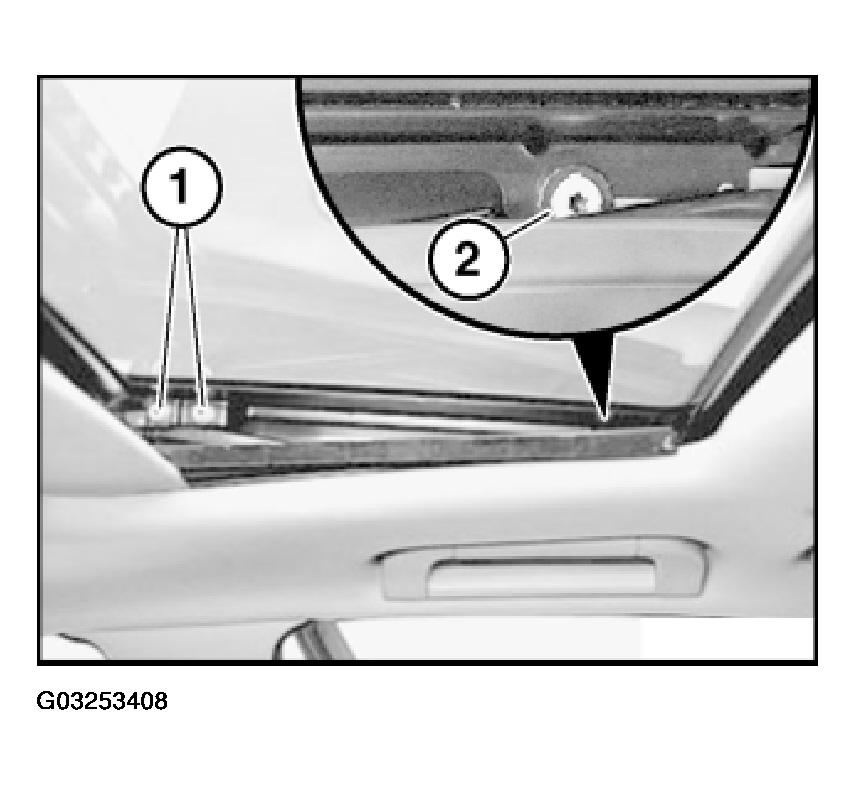

Fig 5: Adjusting Glass Sunroof Lid

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pull bellows down until screw (2) is accessible. Loosen screws only to the extent that the glass sunroof lid can only just be adjusted.

Close glass sunroof lid (zero position).

Press glass slide/tilt sunroof lid forwards, press downwards at front and rear until ideal position is achieved and tighten down screws.

Installation:

Check function.

Slowly pull roof-lining frame completely forwards.

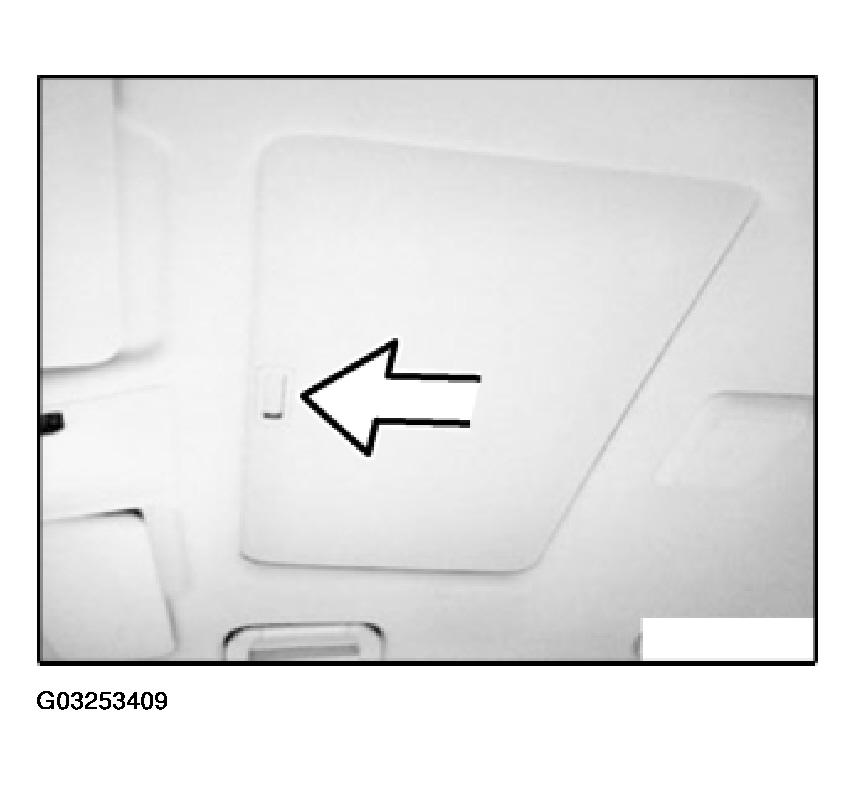

Fig 6: Pulling Roof-Lining Frame

Courtesy of BMW OF NORTH AMERICA, INC.
