54 13 003 Adjusting Glass Slide/Tilt Sunroof Lid

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks:

Remove gaiter on left and right, refer to 54 10 160 REPLACING LEFT OR RIGHT GAITER FOR GLASS SLIDE/TILT SUNROOF
Close glass slide/tilt sunroof completely

If the glass slide/tilt sunroof is outside the adjustment tolerances, adjust as follows:

Adjusting glass slide/tilt sunroof unit:

Carry out the following step on one side first and then the other (first left, then right or vice versa):

Slacken Torx screws (1) on left/right so that glass roof panel can still just be adjusted.

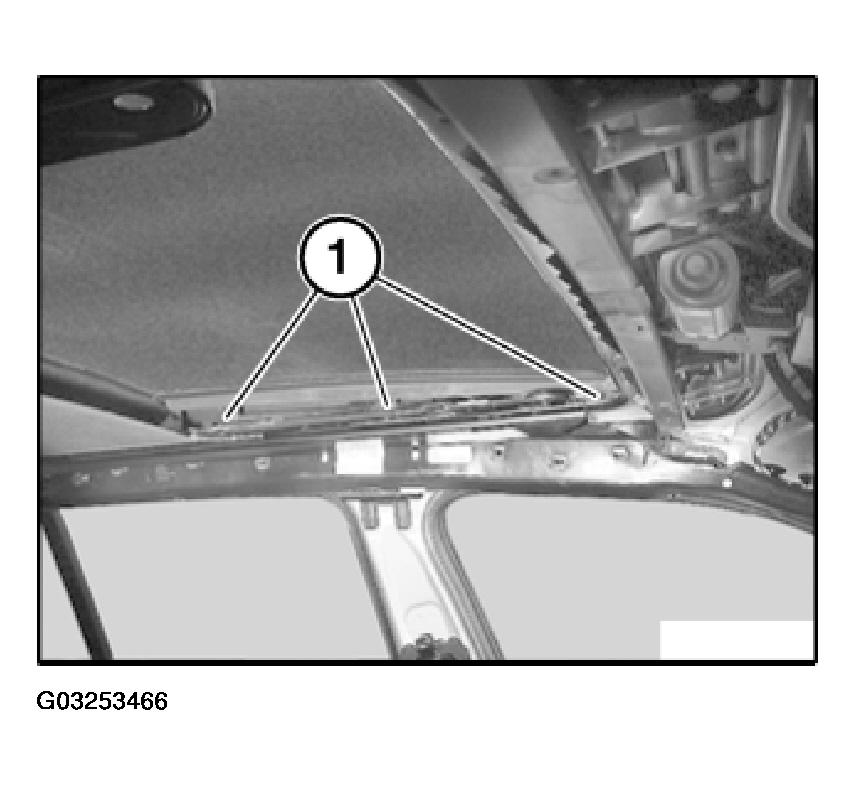

Fig 1: Locating Torx Screws
Courtesy of BMW OF NORTH AMERICA, INC.
Move glass roof panel as required.
Make sure all screws are tightened down.
Tightening torque, 54 12 2AZ. Refer to SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES .
Repeat procedure on other side.

Distance setting:

Distance A between body and glass lid (without seal):

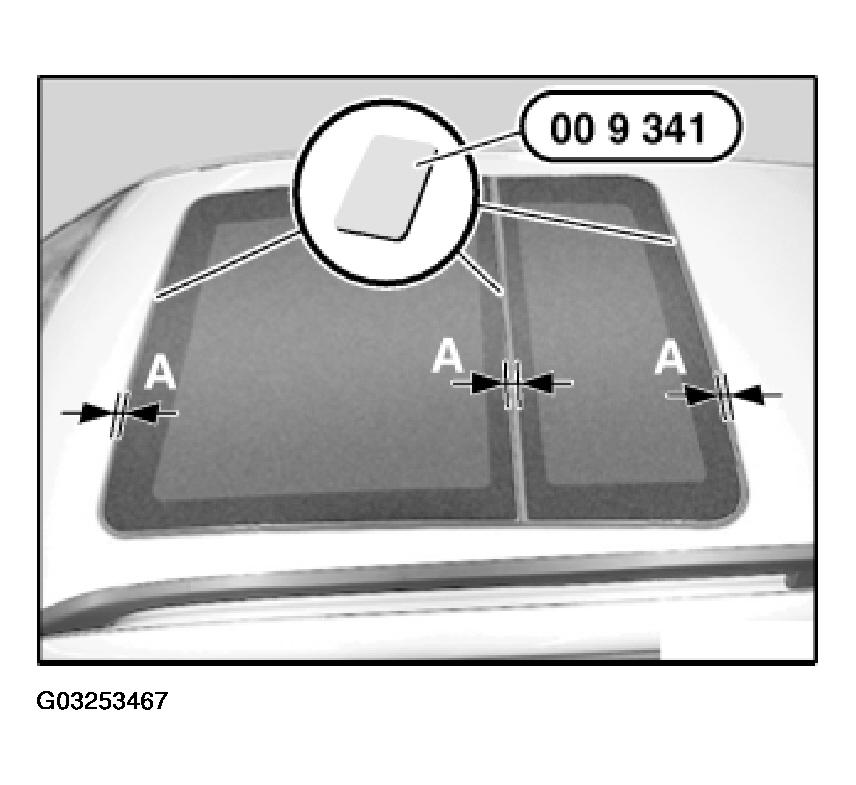

Fig 2: Checking Gap Of Glass Lid And Body

Courtesy of BMW OF NORTH AMERICA, INC.

A = 5.8 +/- 0.3 mm all round

Check same gap of glass lid and body with special tool 00 9 341.

Slide special tool 00 9 341 or similar between seal and insert. It must be possible to slide the card against the same level of resistance.

Slide glass lid towards front or rear until ideal position is reached.

Height adjustment:

NOTE: Front glass lid must be adjusted first.

Check height of glass lid (1) in relation to body (2) with special tool 00 9 315.

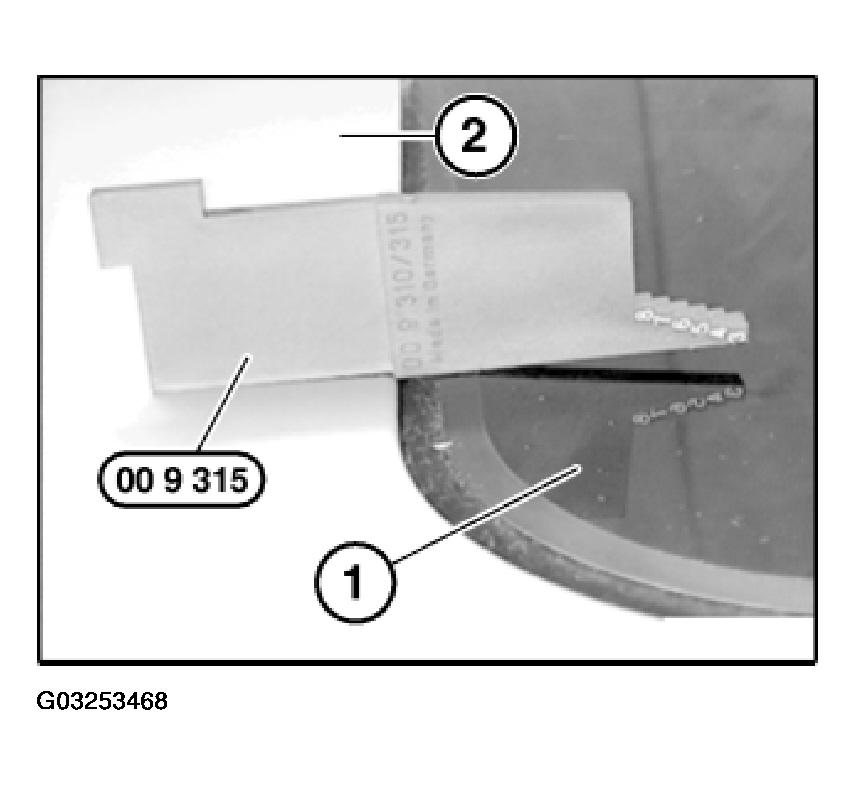

Fig 3: Checking Height Of Glass Lid

Courtesy of BMW OF NORTH AMERICA, INC.

Press glass lid (1) at front and rear towards top or bottom until ideal position is reached.

Height:

Front edge of glass lid at front 0 to 1 mm under roof edge
Rear edge of glass lid at front 0 to 0.5 mm over glass lid at rear
Rear edge of glass lid at rear 0 to 1 mm over roof edge
Check function and adjustment.
