54 10 160 Replacing Left Or Right Gaiter For Glass Slide/Tilt Sunroof

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

IMPORTANT: Risk of damage!

Carefully detach gaiter (1) from guide.

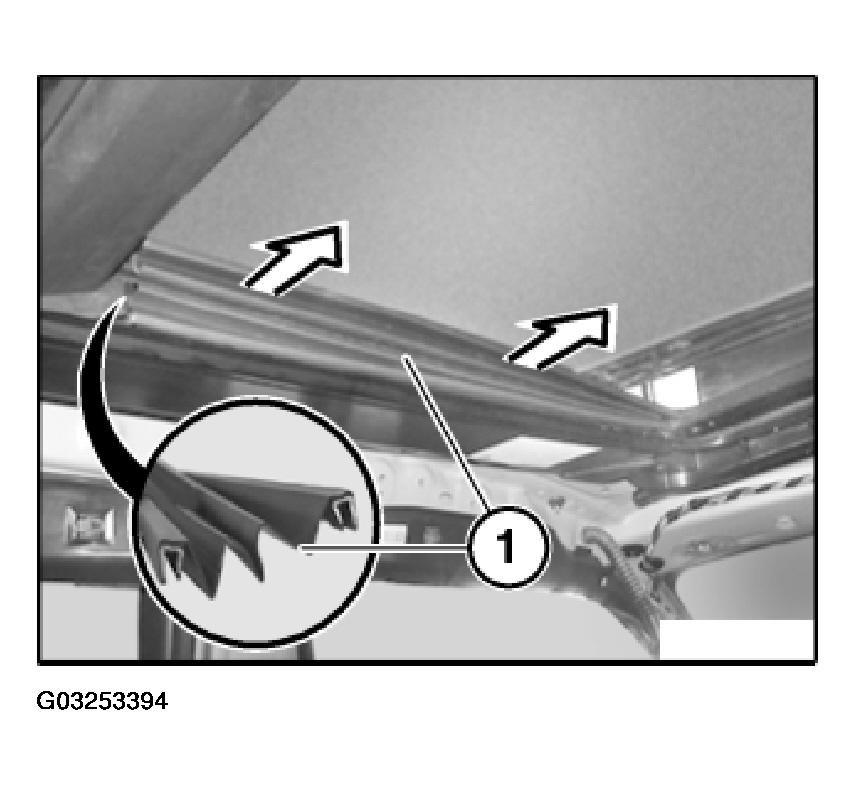

Fig 1: Replacing Gaiter

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Gaiter has an aluminum section inlay.

Check that aluminum section inlay is firmly seated on guide.

If necessary, replace faulty gaiter.
