52 26 008 Removing and installing/replacing left or right side section of rear seat backrest (through-loading)

Release rear-seat backrest and fold forward.

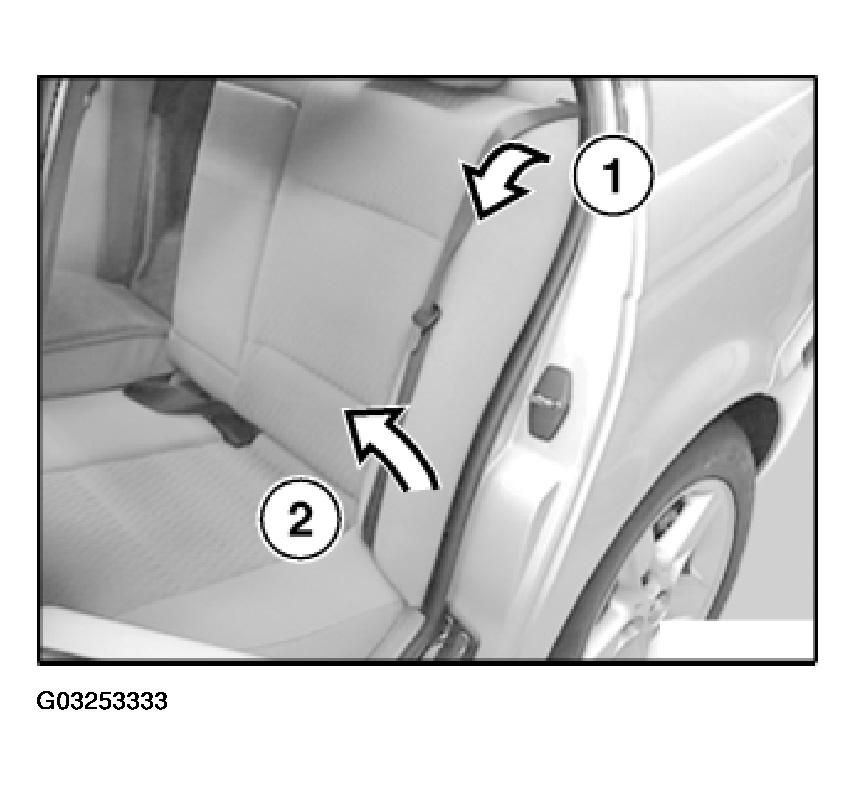

Fig 1: Removing Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip backrest side section at top (1) and pull upwards (2) to remove.

Installation:

Unscrew clip (1) towards top out of plate.

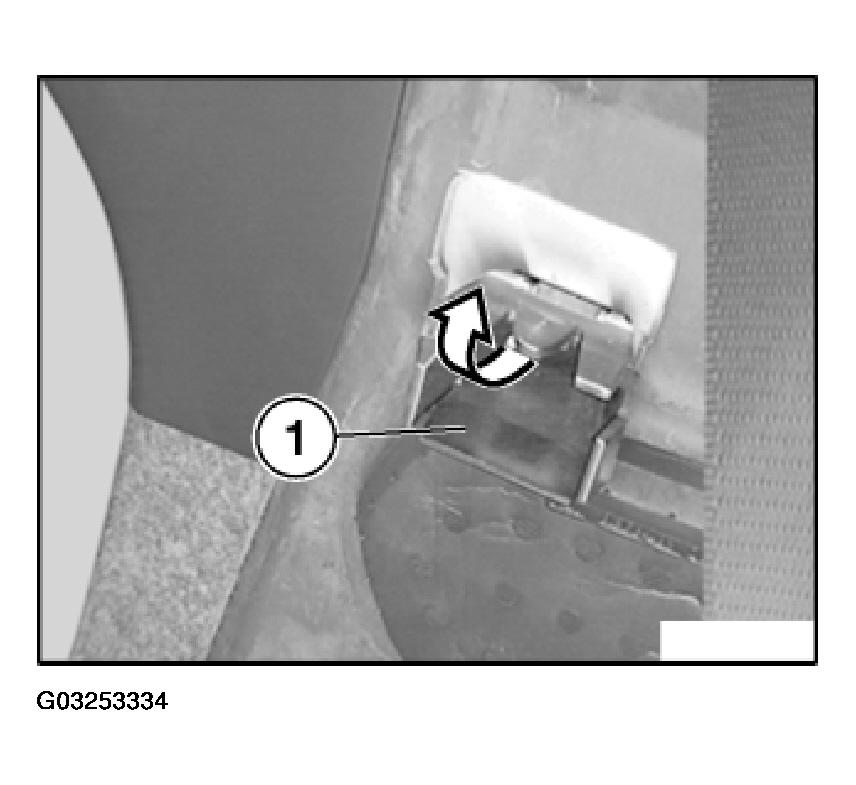

Fig 2: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide clip (1) into locating receptacle (2) of backrest side section.

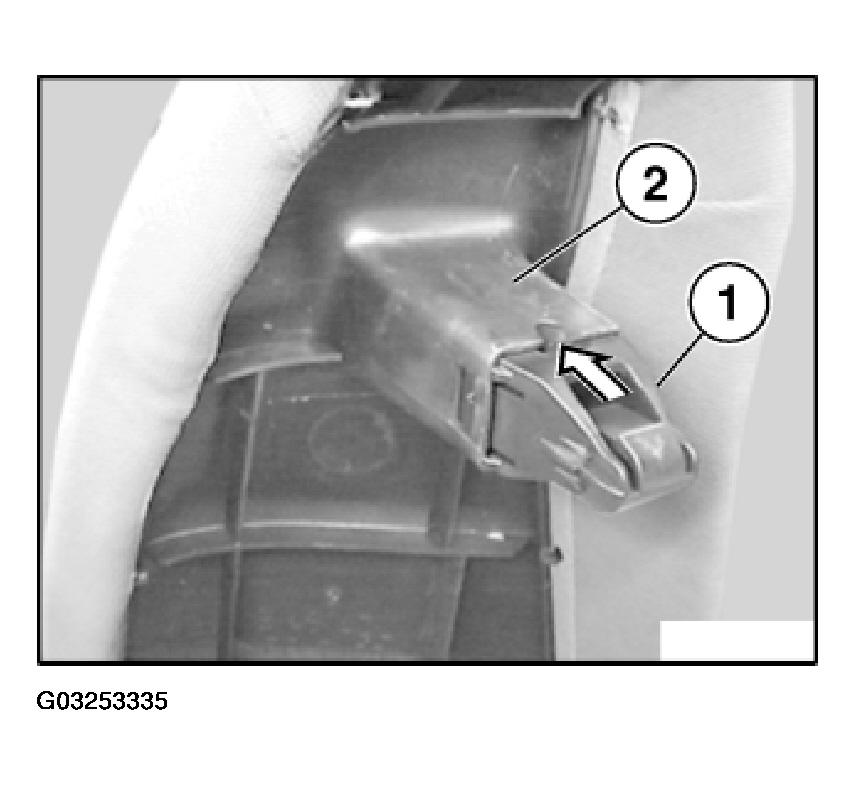

Fig 3: Sliding Clip Into Receptacle Of Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push guide (1) on backrest side section (2) into fixture (3).

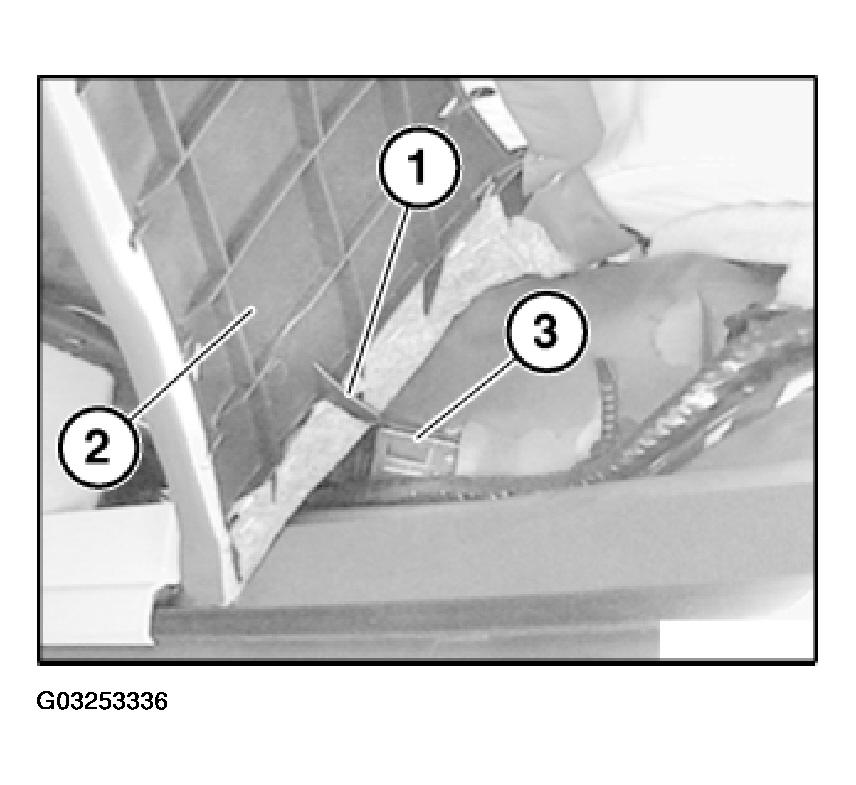

Fig 4: Pushing Guide Into Fixture

Courtesy of BMW OF NORTH AMERICA, INC.
