52 26 ... Removing and installing/replacing ski bag with cassette on rear seat (through-loading system) (Touring)

Remove center armrest. Refer to 52 26 030 REMOVING AND INSTALLING/REPLACING ARMREST FOR REAR-SEAT BACKREST (THROUGH-LOADING SYSTEM)  .

Open cover at rear.

Unscrew bolt (1).

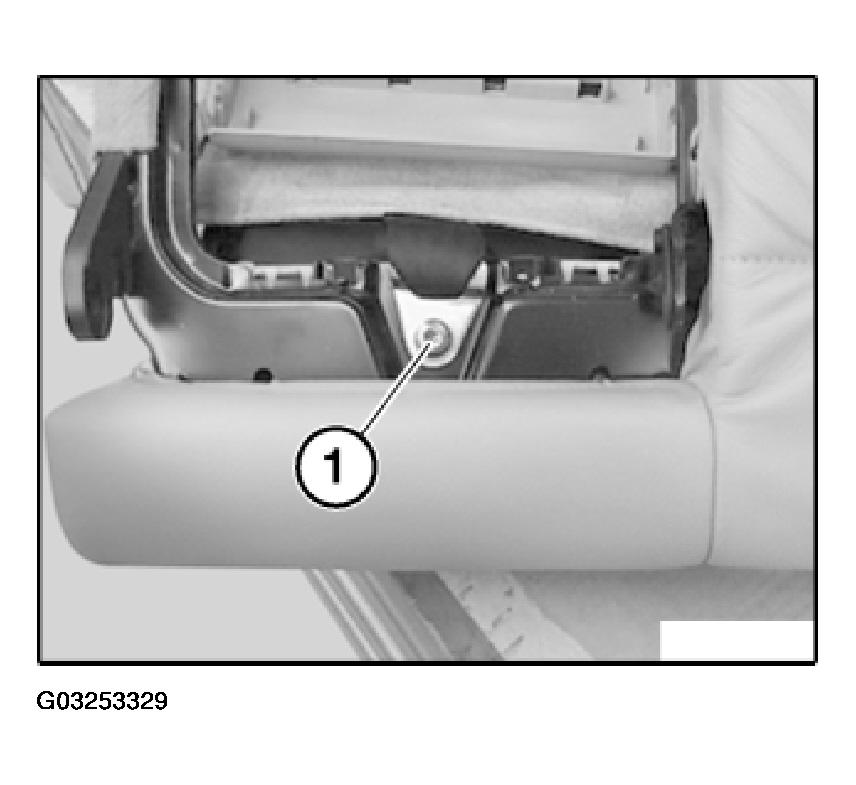

Fig 1: Locating Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

• Bend central metal element (1) at foot of ski bag towards front at bottom.
• Unlock seat back and gently tilt forwards.
• Carefully press together clip feet (2) of cassette and remove cassette towards rear at bottom, paying attention to clips at side and top.

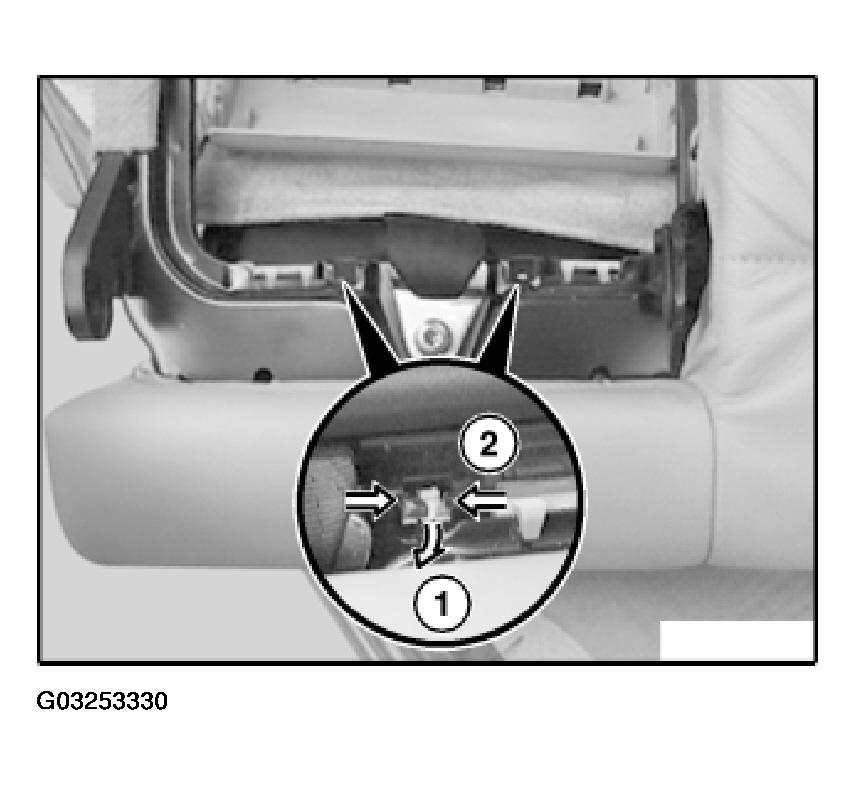

Fig 2: Removing Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip feet must not be damaged.

Unclip cover at rear towards top.

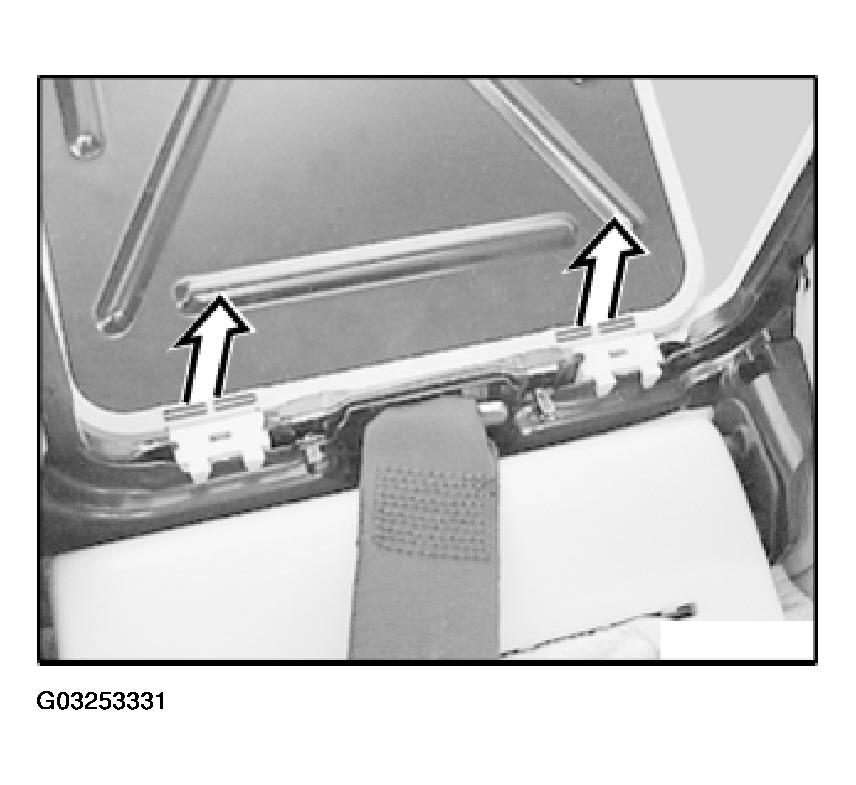

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.
