51 16 ... Removing and installing/replacing center armrest sliding unit

Necessary Preliminary Tasks:

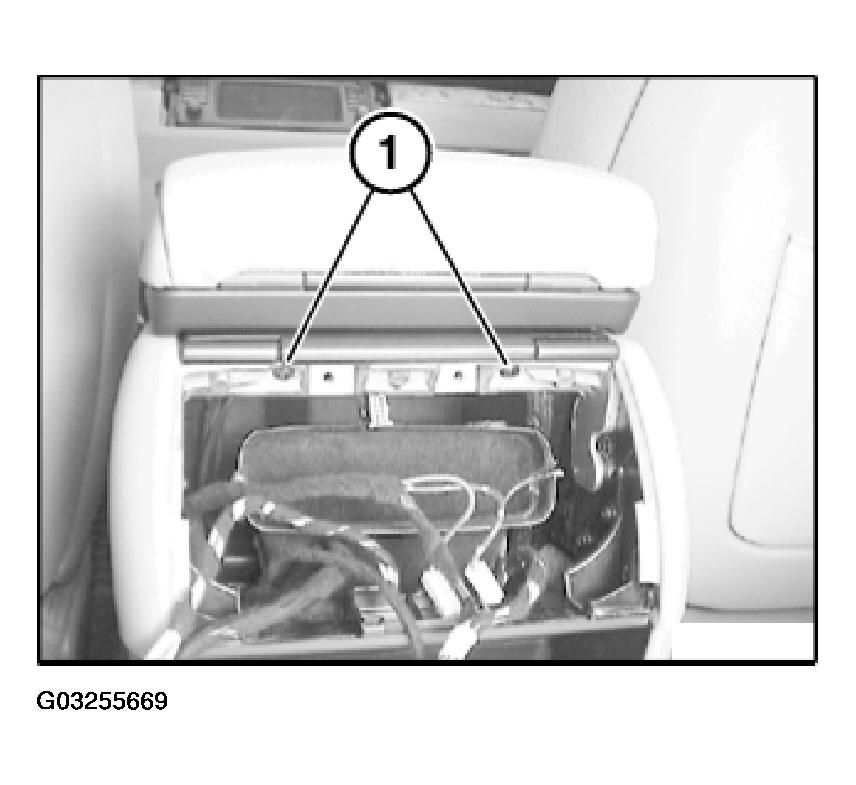

Release screws (1).

Fig 1: Locating Screws In Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

Version Without Eject Box:

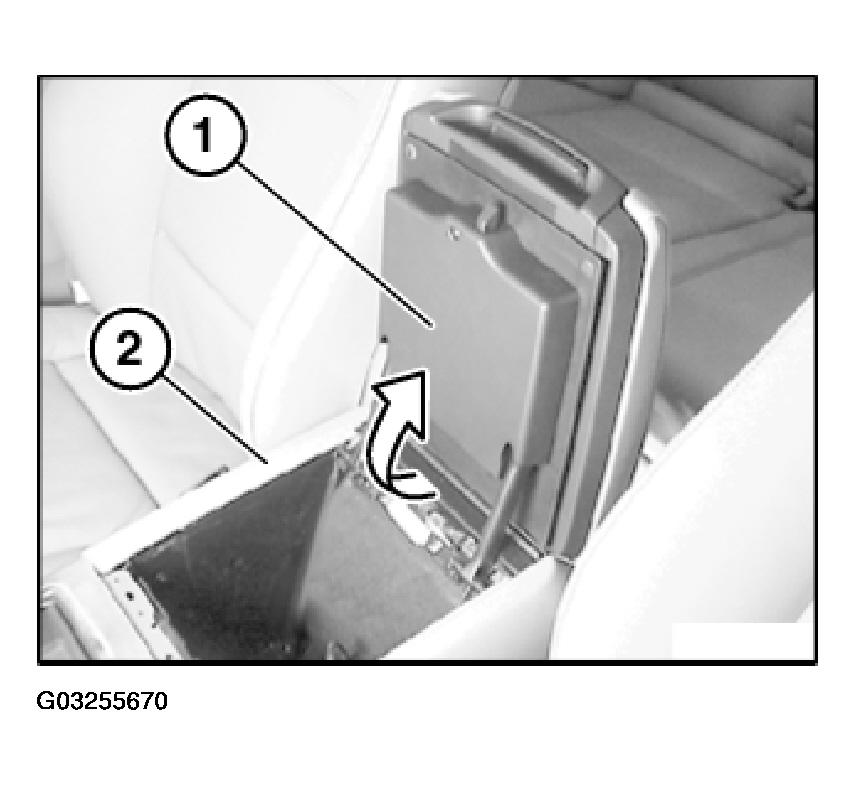

Open center armrest (1) and remove storage tray (2) at same time.

Replacement:

Fig 2: View Of Armrest And Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Eject Box:

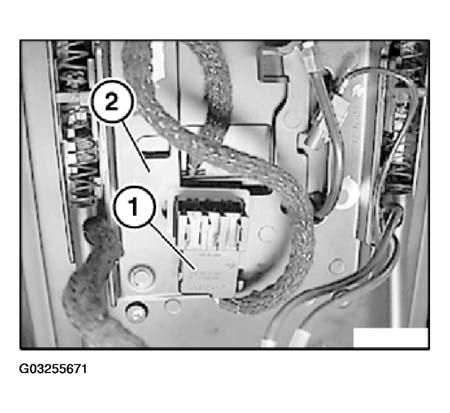

If necessary, detach plug connection (1) with holder from center armrest (2).

Fig 3: Locating Plug Connection With Holder For Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

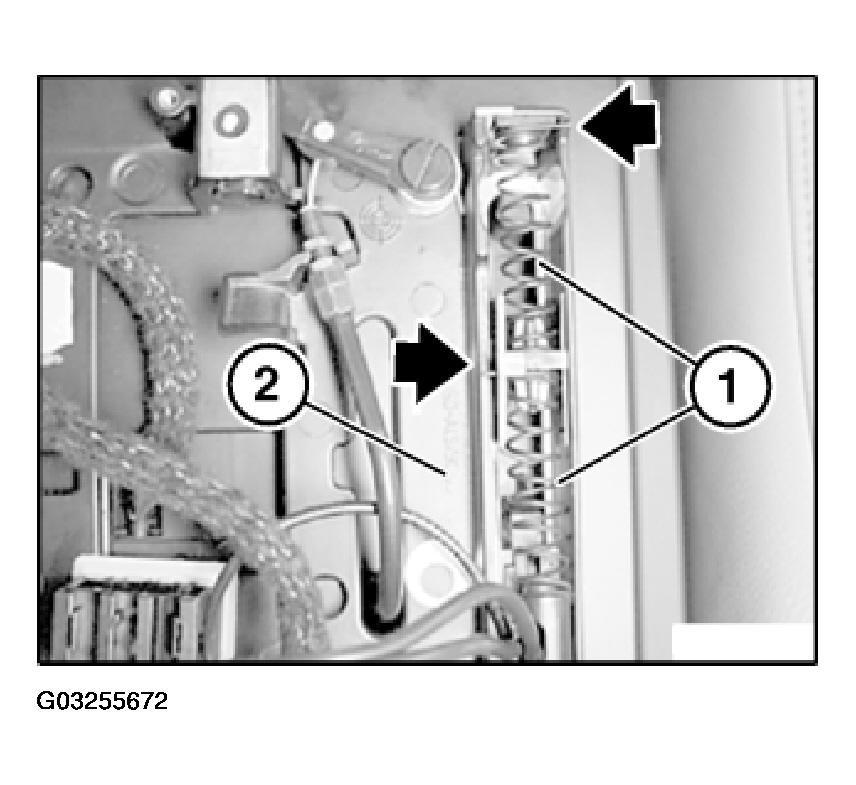

Remove both springs (1) on left/right from center armrest (2).

Installation:

Ensure ends of springs are in correct position.

Fig 4: Identifying Springs On Left/Right On Center Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

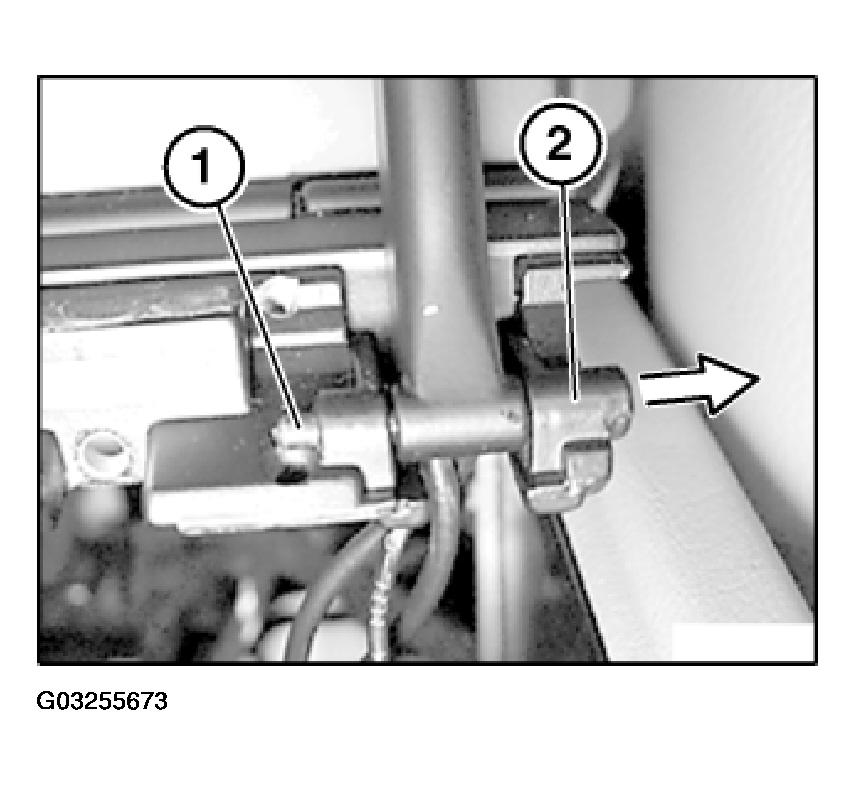

Raise center armrest and drive out split pin (1) on left/right from inside outwards.

Installation:

Fit split pin (1) with notch facing outwards in hinge (2).

Fig 5: View Of Split Pin With Notch Facing Outwards

Courtesy of BMW OF NORTH AMERICA, INC.

Pull swivel arms (1) forwards.

Fig 6: Pulling Swivel Arms Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

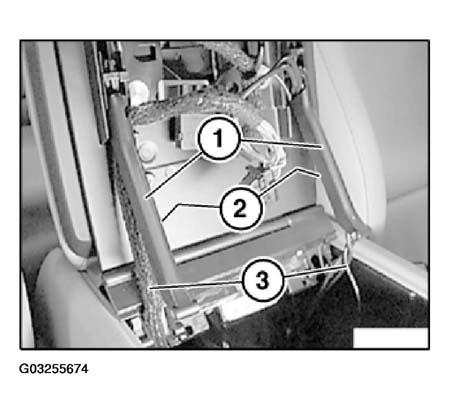

Lever out trim(s) (2) and feed cable (3) out of swivel arms (1).

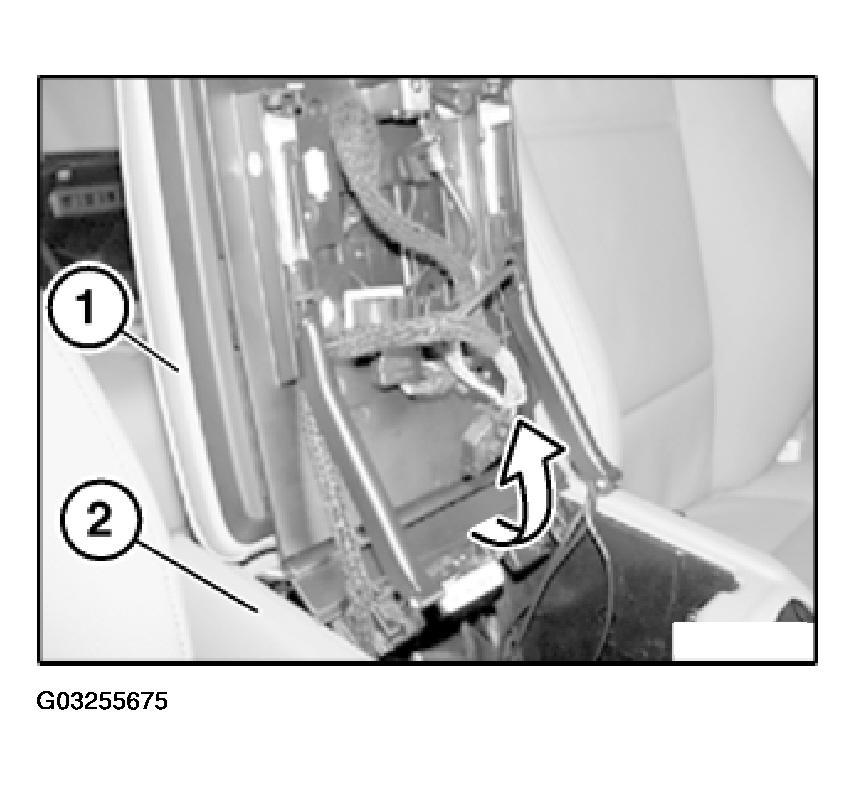

Remove center armrest (1) from storage tray (2).

Replacement:

Fig 7: Removing Center Armrest From Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.
