84 11 510 Removing and installing/replacing eject box (V Series cellular telephone)

If necessary, remove telephone from eject box.

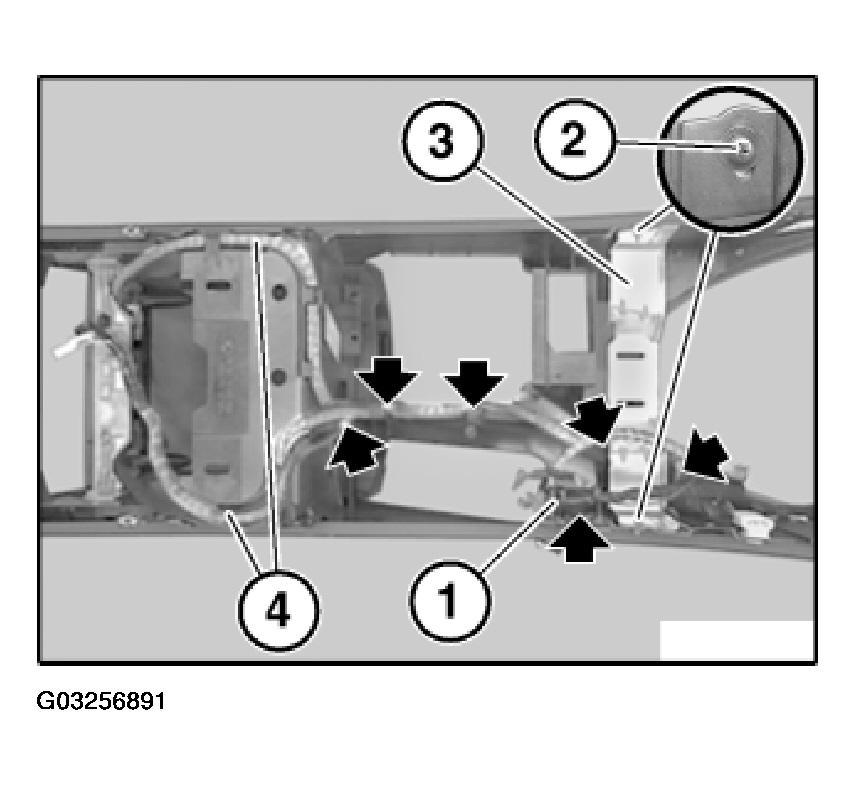

Unclip plug connections (1).

Release screws (2) and remove bracket (3).

Release cable straps and remove wiring harness (4) from guides.

Installation:

Ensure correct cable routing.

Fig 1: Locating Wiring Harness Guides

Courtesy of BMW OF NORTH AMERICA, INC.

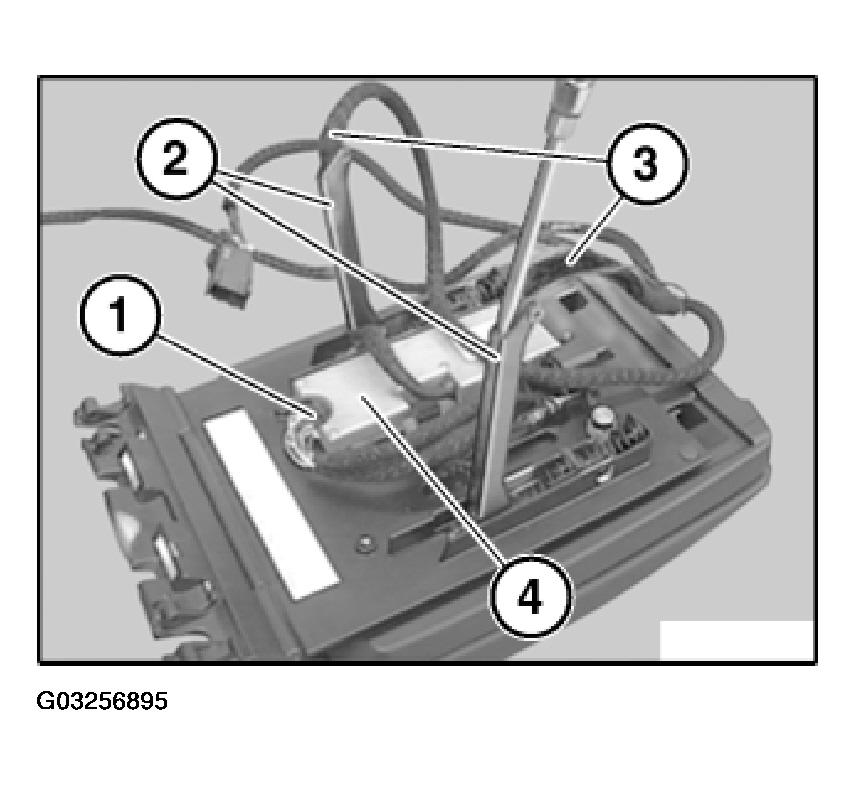

Loosen screws (1).

Remove armrest (2).

Fig 2: Loosening Screws And Removing Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

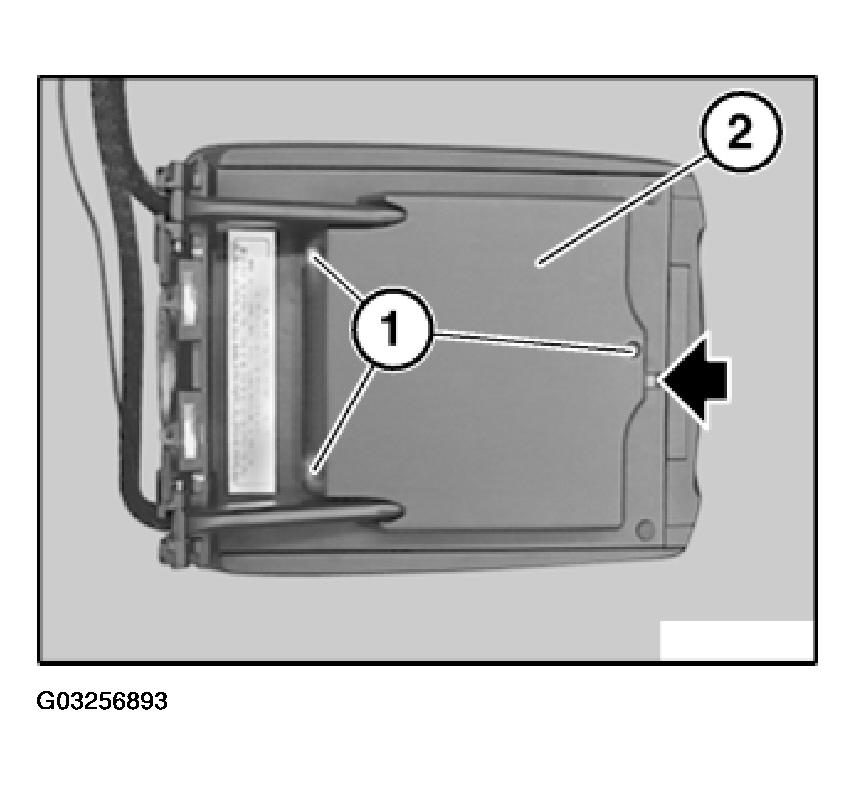

Loosen screws (1).

Feed out cover (2) on lock and lift off.

Fig 3: Identifying Cover Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

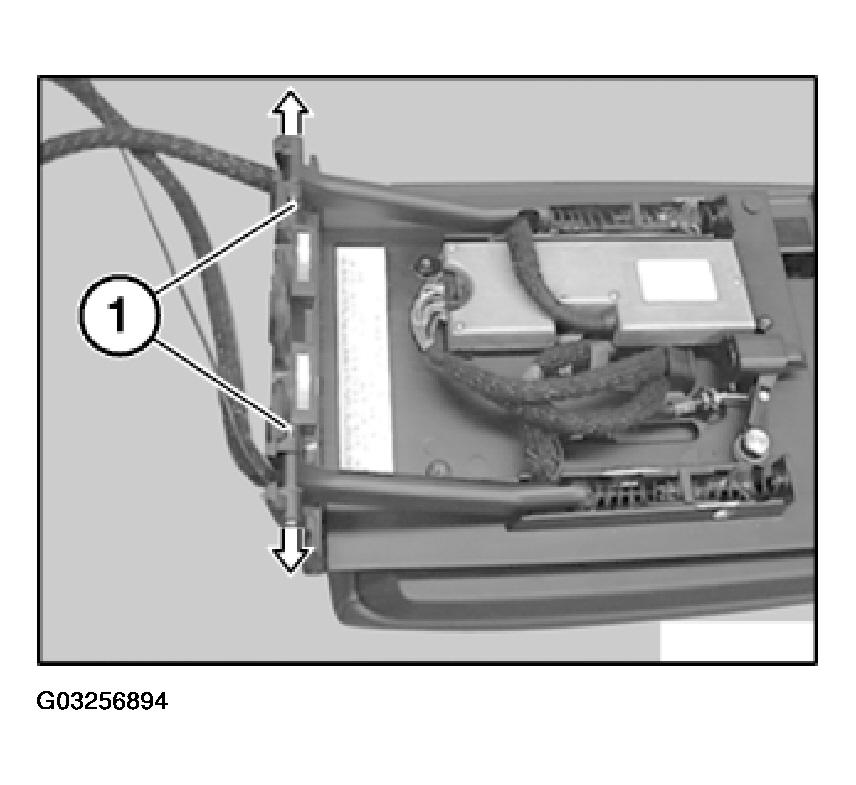

Drive out pins (1) in direction of arrow.

Fig 4: Driving Out Pins

Courtesy of BMW OF NORTH AMERICA, INC.

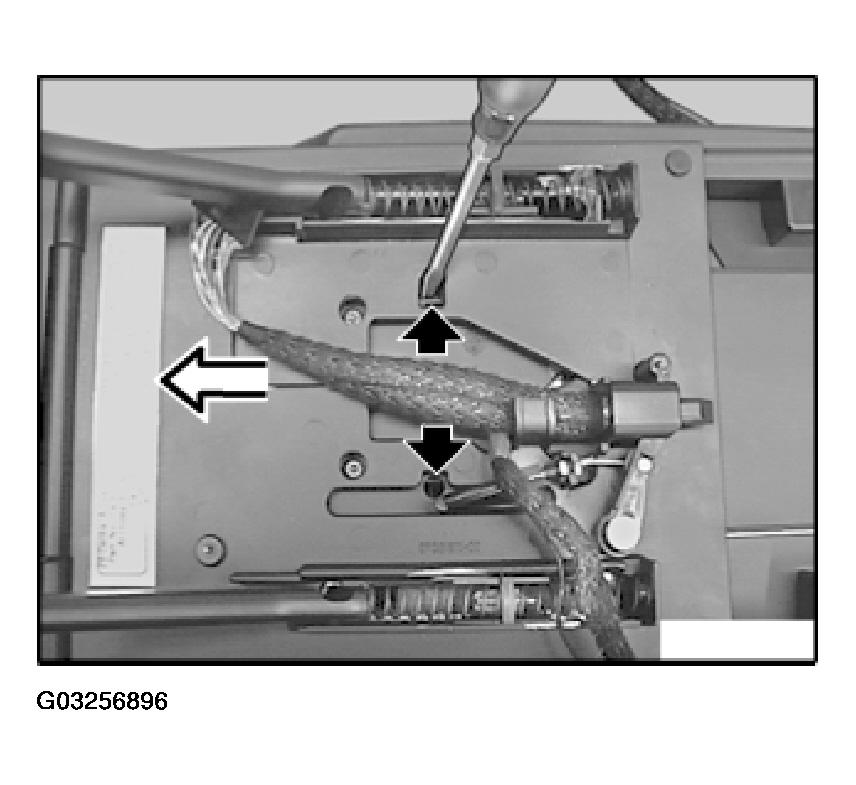

Disconnect plug connection (1).

Lever out covers (2) and feed out wiring harness (3).

Remove interface for telephone (4).

Installation:

Ensure correct cable routing.

Fig 5: Locating Interface For Telephone

Courtesy of BMW OF NORTH AMERICA, INC.

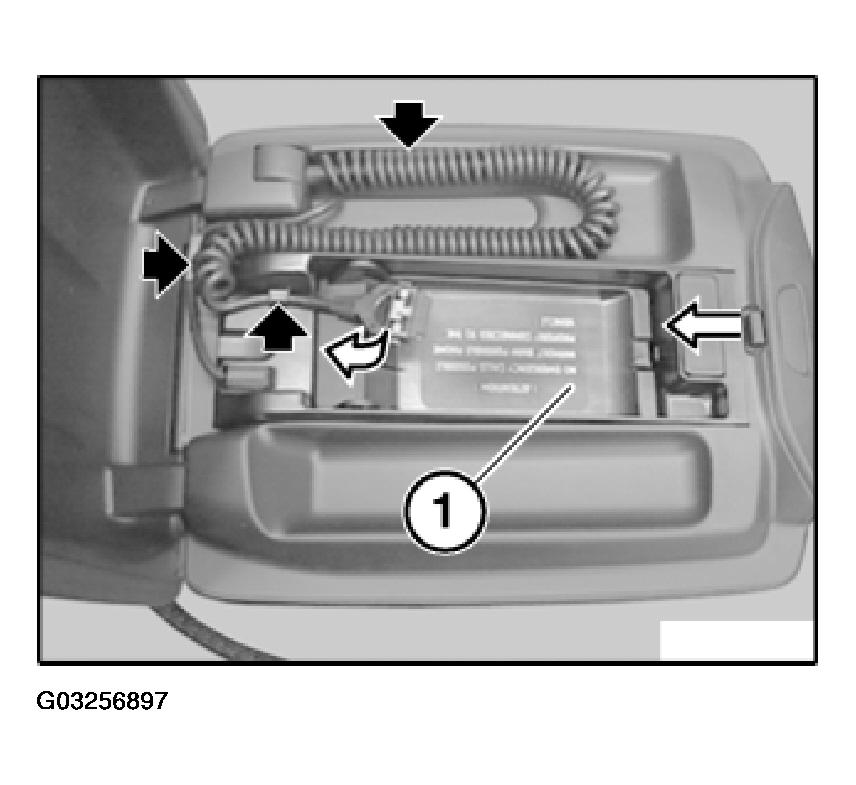

Move function carrier in direction of arrow as far as it will go. Unlock retaining hook.

Fig 6: Identifying Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

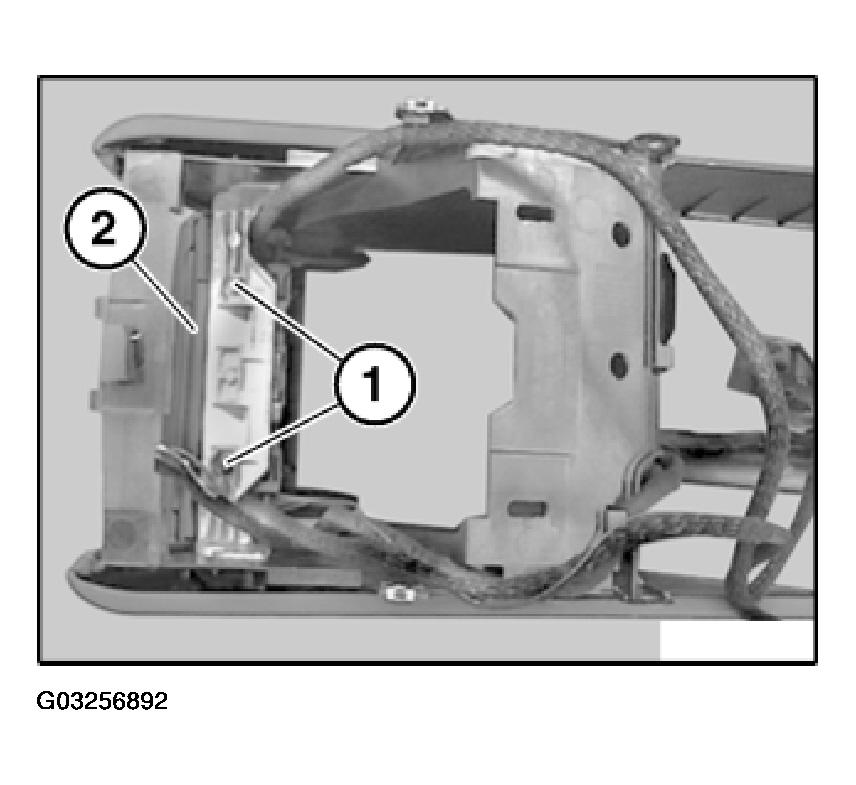

Remove connecting cable for telephone from guides. Move eject box (1) in direction of arrow and remove.
