67 16 010 Removing and installing or replacing headlight vertical aim adjuster

Remove headlight insert, refer to 63 12 401 REPLACING LEFT HEADLIGHT INSERT .

Unfasten screws, remove connector and pull out headlight vertical aim adjuster.

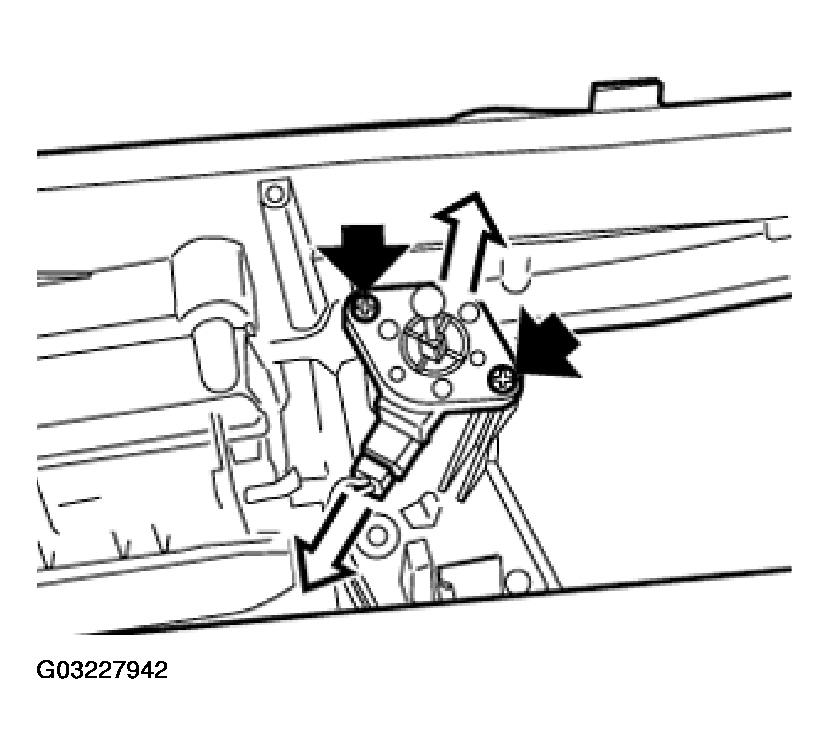

Fig 1: Removing Headlight Vertical Aim Adjuster
