63 12 401 Replacing left headlight insert

Remove lens with cover frame, refer to 63 12 040 REMOVING AND INSTALLING OR REPLACING LENS WITH COVER FRAME FOR LEFT HEADLIGHT  .

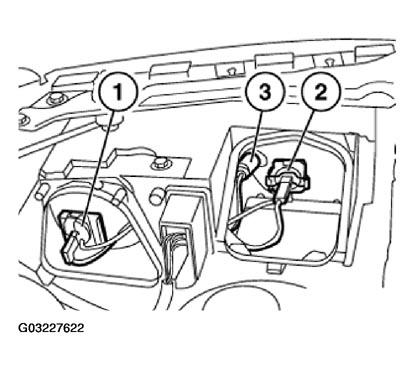

Remove connector from low-beam, high-beam and parking light receptacles.

Fig 1: Removing Connector From Low-Beam, High-Beam And Parking Light Receptacles

Remove fuse (1).

Fig 2: Removing Fuse

Press clips apart at each retaining point and remove headlight insert from retaining point.
