61 61 270 Removing and installing complete wiper console

Remove Windshield Cowl Cover.

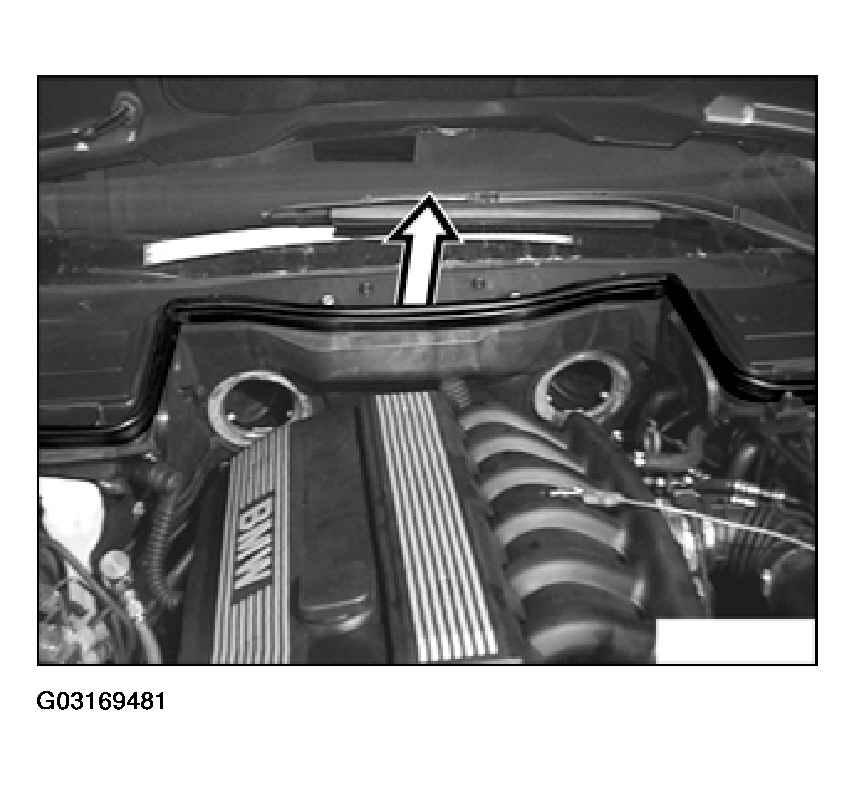

Remove sealing frame from engine hood.

Fig 1: Removing Sealing Frame From Engine Hood

Courtesy of BMW OF NORTH AMERICA, INC.

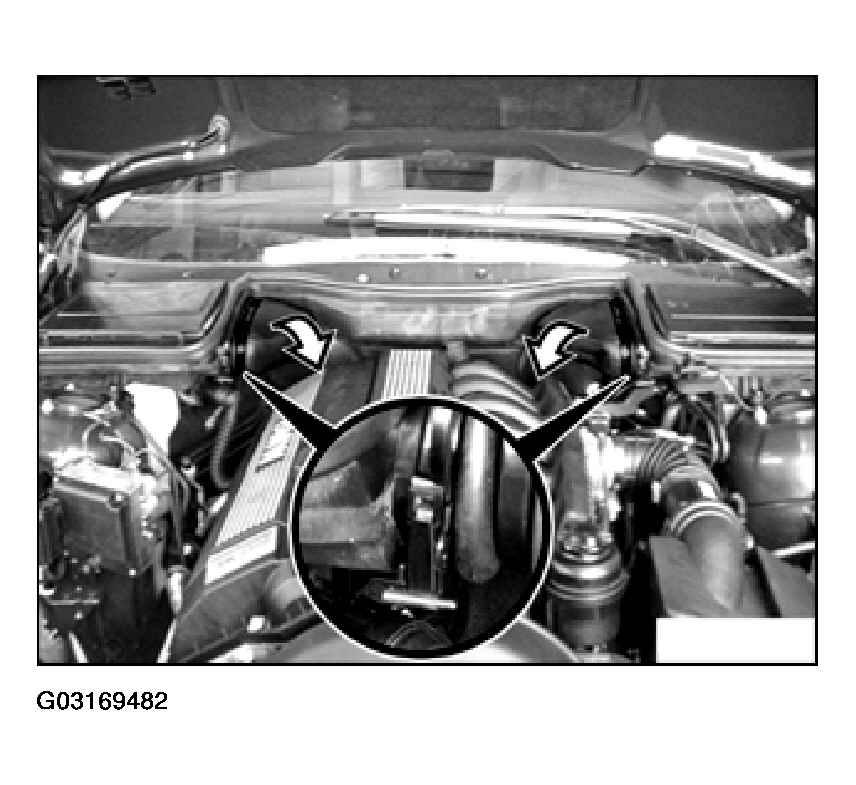

Unfasten clip from right and left air ducts, twist air duct and lift out.

Fig 2: Removing Clips From Right And Left Air Ducts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation Instructions:

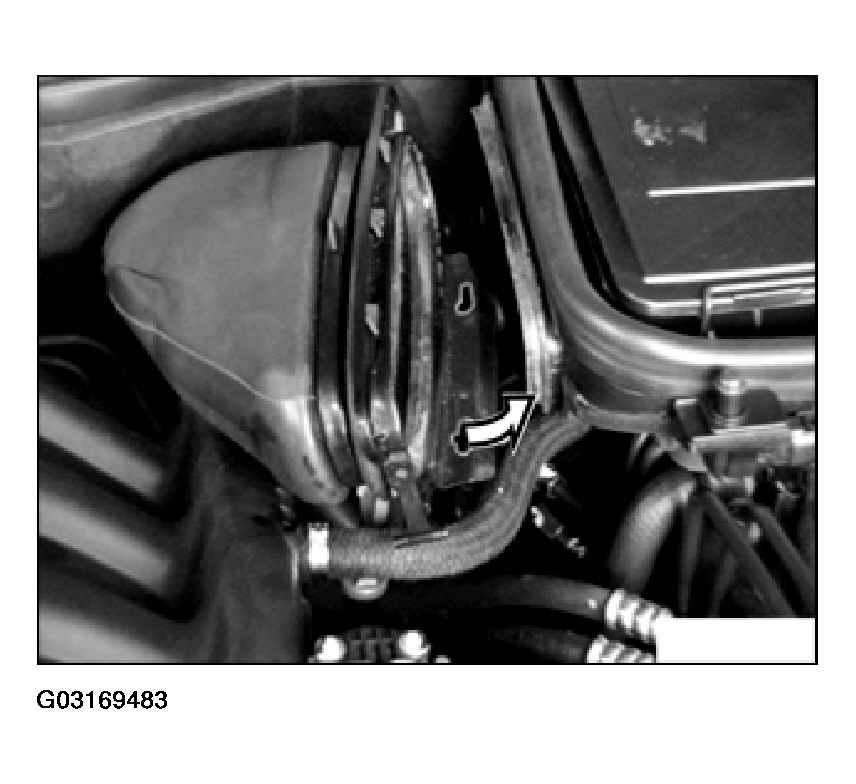

Fit air duct to end wall. Twist, then insert in underside of microfilter.

Fig 3: Installing Air Duct To End Wall

Courtesy of BMW OF NORTH AMERICA, INC.

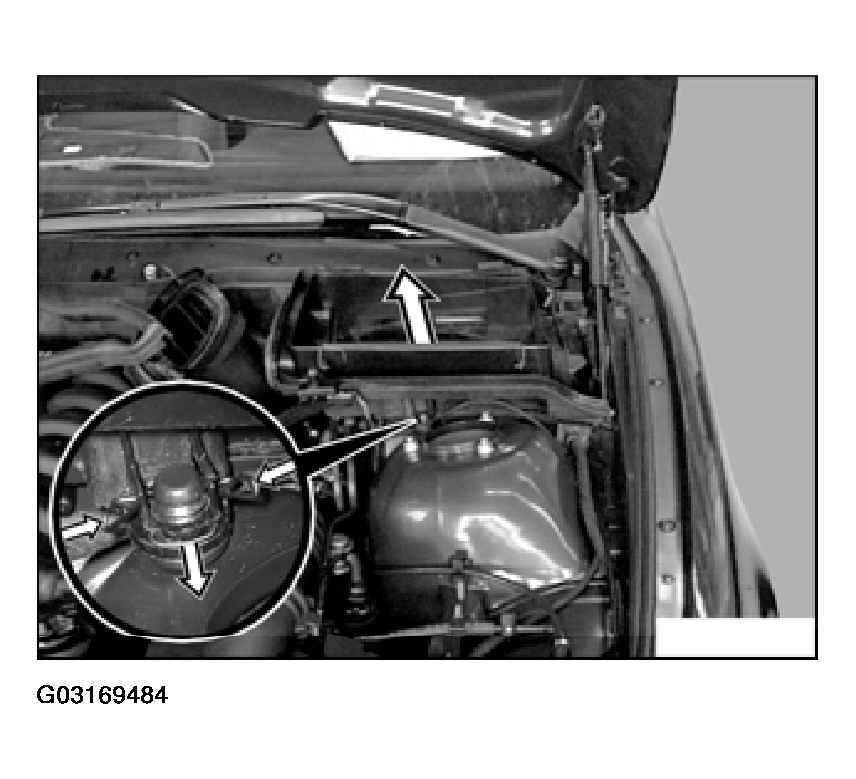

Unfasten clip and lift out right and left microfilter housings.

Fig 4: Removing Left And Right Microfilter

Courtesy of BMW OF NORTH AMERICA, INC.

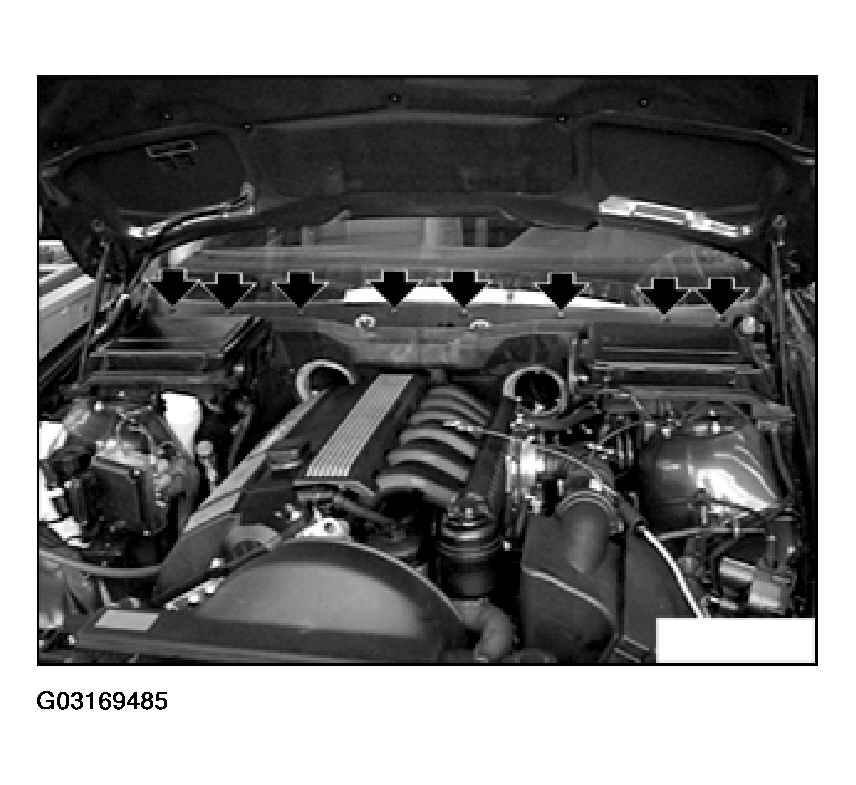

Release all split rivets and remove cowl screen.

Fig 5: Locating Split Rivets On Cowl Screen

Courtesy of BMW OF NORTH AMERICA, INC.

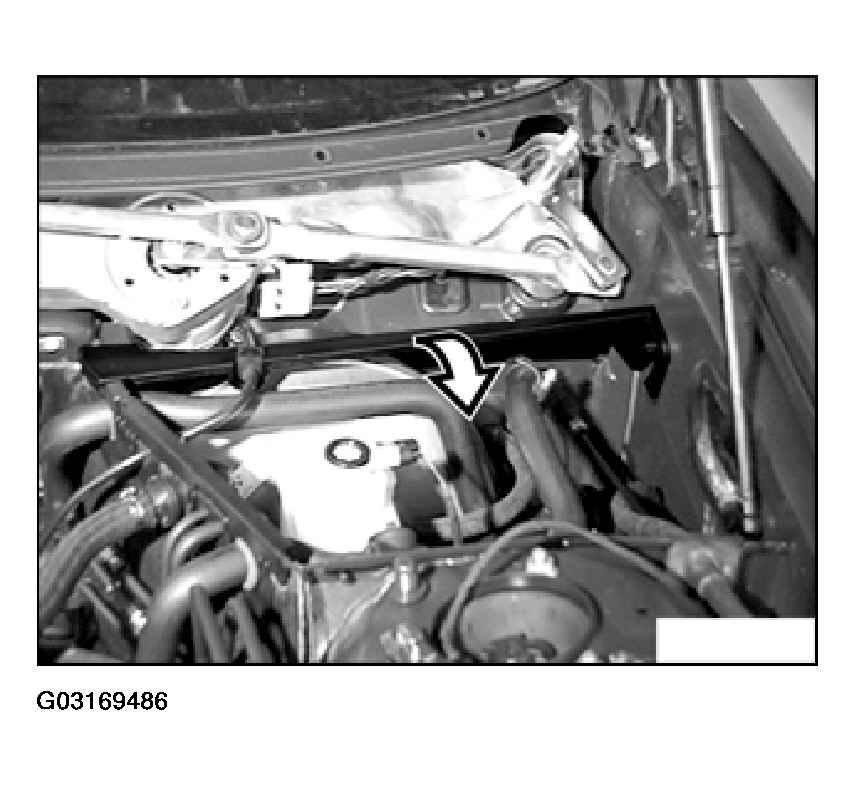

Unfasten screw and remove cover.

Fig 6: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation "Removing windshield cowl cover" ends here.

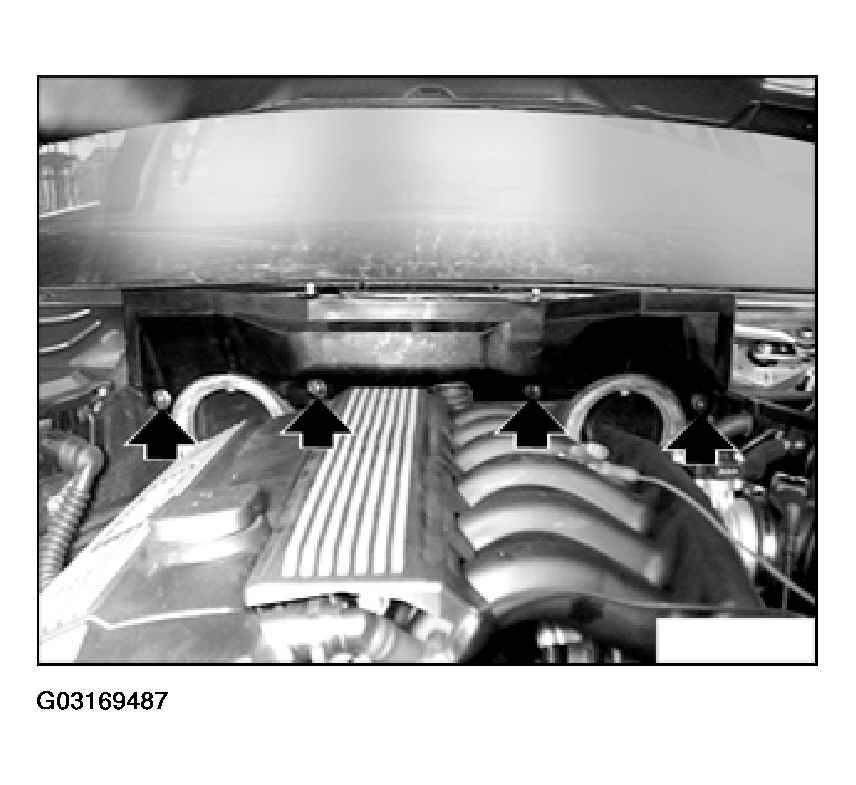

Twist all levers through approx. 90° and remove cable cover.

Fig 7: Removing Windshield Cable Cover

Courtesy of BMW OF NORTH AMERICA, INC.

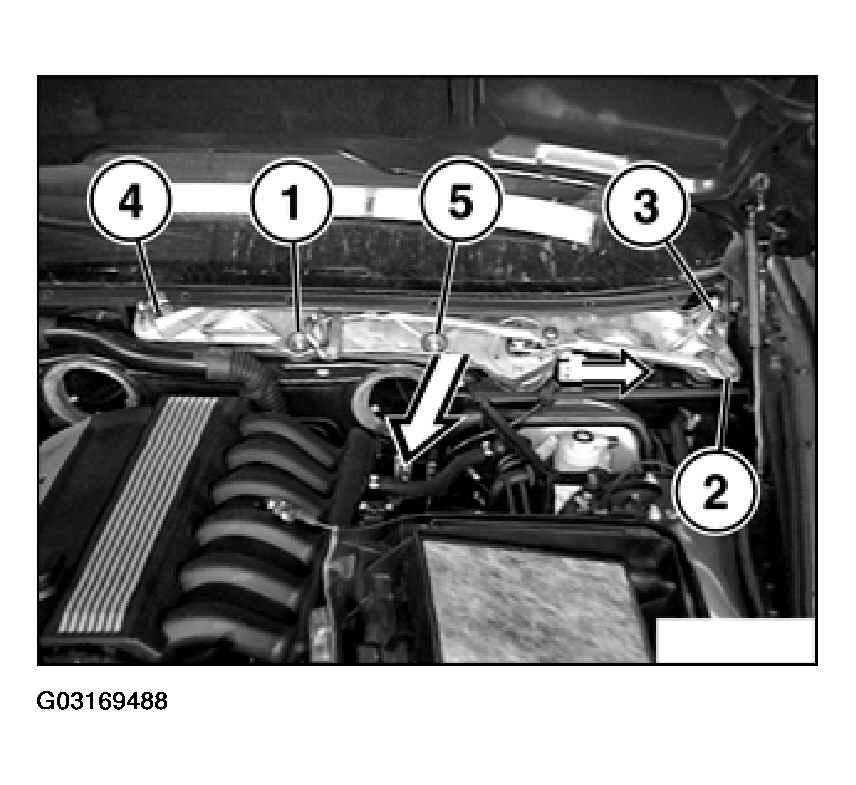

Remove connector, unfasten screws and lift out complete wiper console.

Installation:

Insert wiper unit in body and tighten down by hand without torsional stress. Tighten down screws in illustrated sequence.

Comply with Tightening Torque, refer to WINDSHIELD WIPERS .

Fig 8: Removing Wiper Console

Courtesy of BMW OF NORTH AMERICA, INC.
