61 61 100 Removing and installing/replacing both windshield wiper arms

NOTE: For Special Tool identification, see SPECIAL TOOLS - Z3 .

Special Tools Required:

NOTE: Removal of the windshield wiper arms is described separately for the driver's and passenger sides.

Driver's Side:

Remove cover.

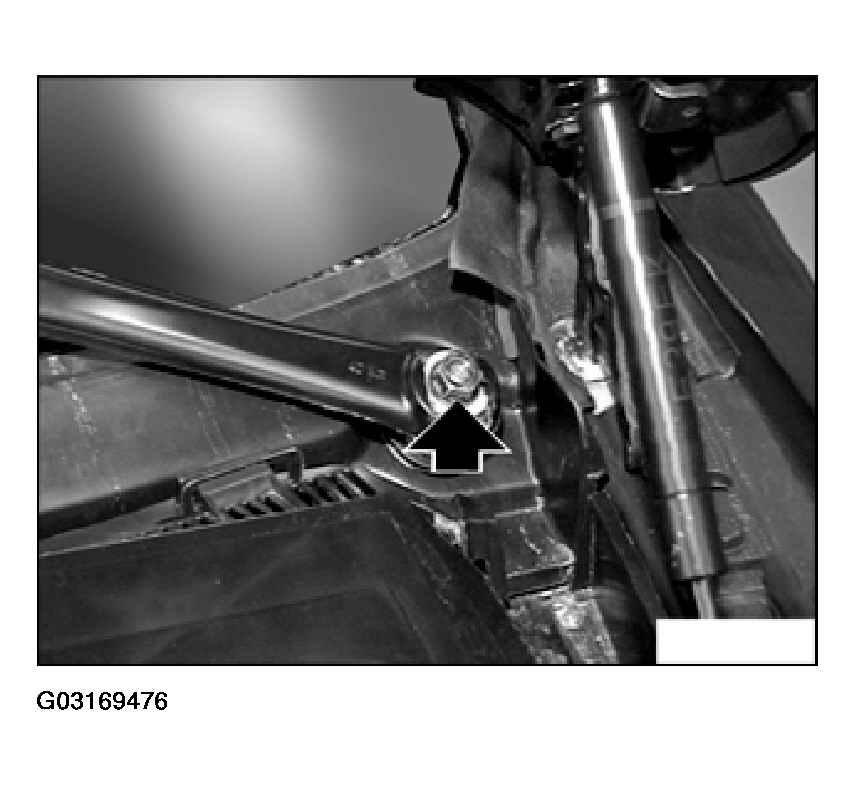

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend windshield wiper arm when removing it (risk of breakage!).

Release nut and remove windshield wiper arm.

Installation:

Tightening torque, 61 61 10AZ. Refer to WINDSHIELD WIPERS .

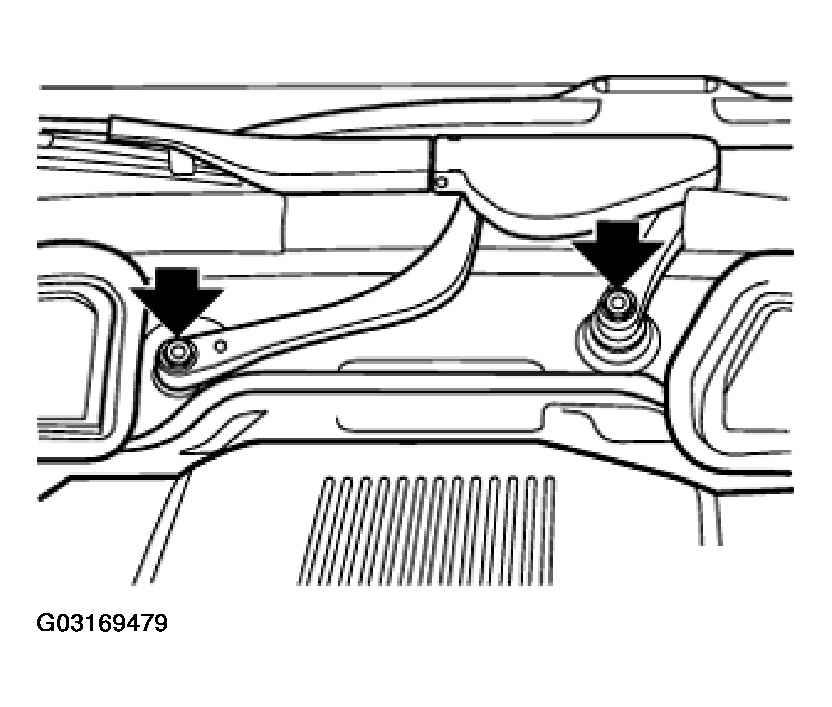

Fig 2: Removing Windshield Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, detach adjusting disk (1) with special tool 61 6 060.

Installation:

Screw adjusting disk (1) together with wiper arm onto shaft.

Check contact angle to windshield with special tool 00 9 230.

If necessary, correct contact angle through displacement of wiper arm on adjusting disk.

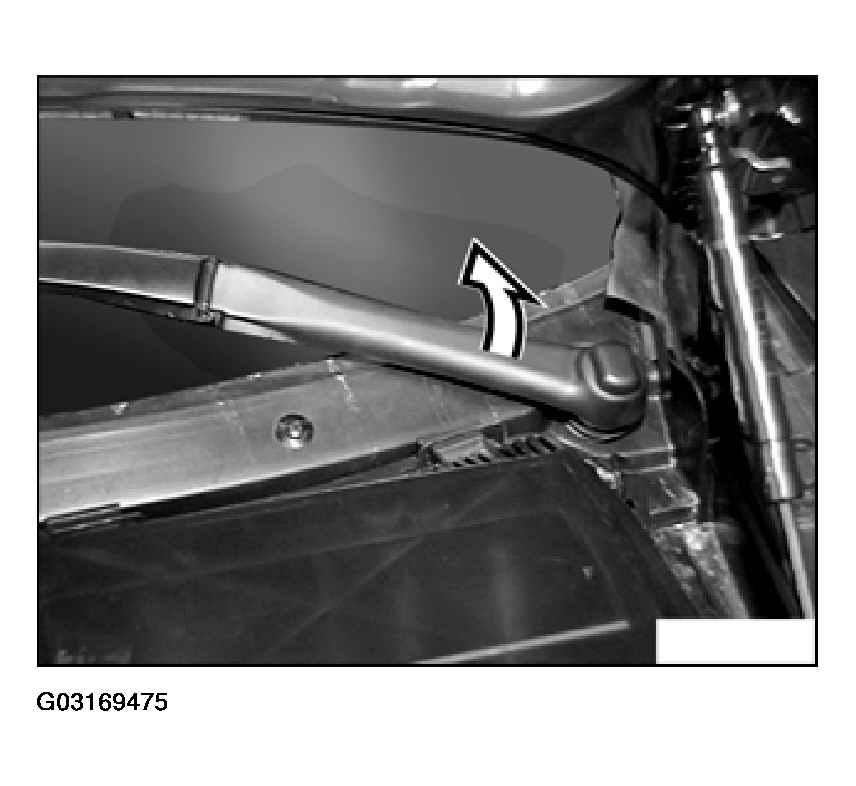

Fig 3: Removing Adjusting Disk

Courtesy of BMW OF NORTH AMERICA, INC.

Passenger side:

Remove caps.

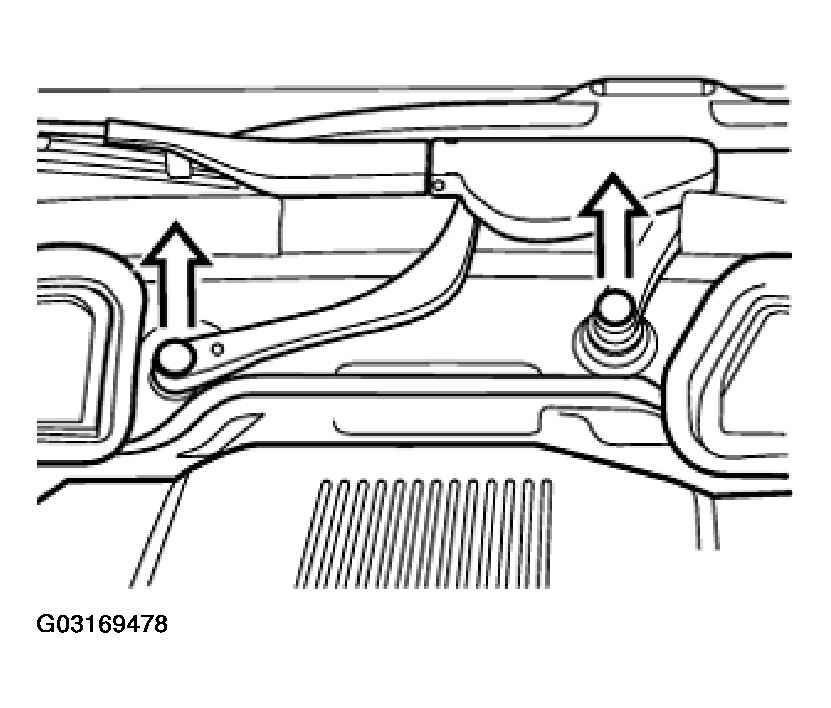

Fig 4: Removing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

Installation:

Tightening torque, 61 61 10AZ. Refer to WINDSHIELD WIPERS .

Fig 5: Installing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not bend windshield wiper arms when removing them (risk of breakage!).

Detach both wiper arms with special tool 61 6 060.

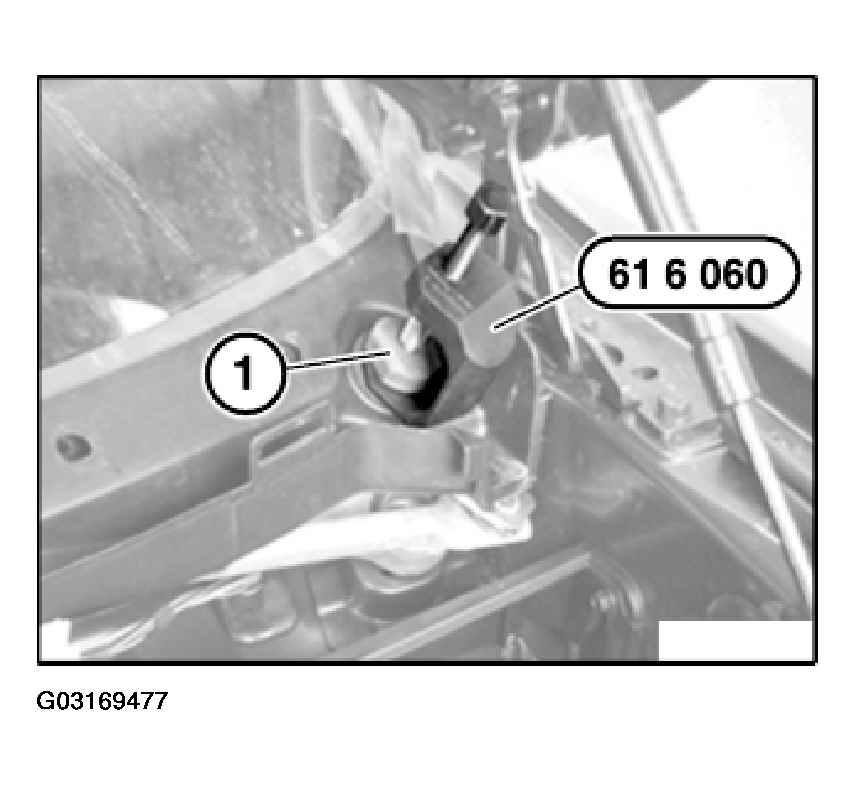

Fig 6: Removing Wiper Arms With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
