51 43 150 Removing and installing or replacing trim for left or right door column (bottom)

Remove front entrance cover strip, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Remove rear entrance cover strip, refer to 51 47 030 REMOVING AND INSTALLING / REPLACING THE REAR (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .

Partially remove mucket from B-column finisher.

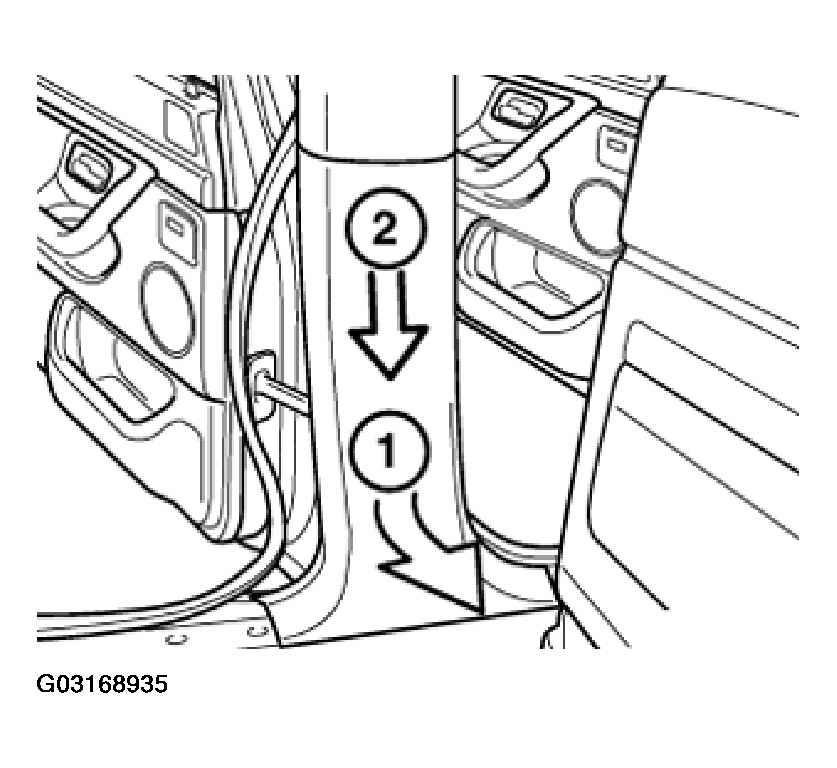

Unclip trim on lower door column (1) by pulling inwards, then pull downwards (2) to remove.

Fig 1: Unclipping Trim On Lower Door Column

Courtesy of BMW OF NORTH AMERICA, INC.

Version from 9/97:

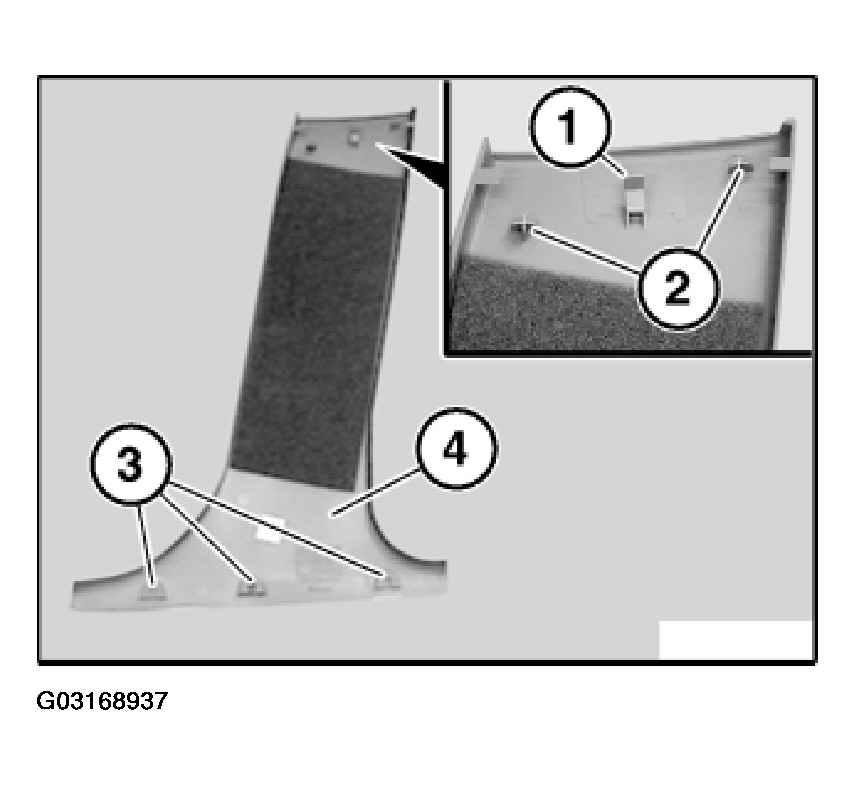

Following parts of trim panel (4) must not be damaged:

1. Holder for trim panel, top.
2. Bracket.
3. Clip mount.

Fig 2: Identifying Holder For Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
