51 47 000 Removing and installing / replacing the front (inside) left or right rocker panel strip

Disconnect rocker panel strip from front and rear finisher strip.

Unclip rocker panel strip from floor plate by pulling upwards.

If necessary, lift clips off floor plate.

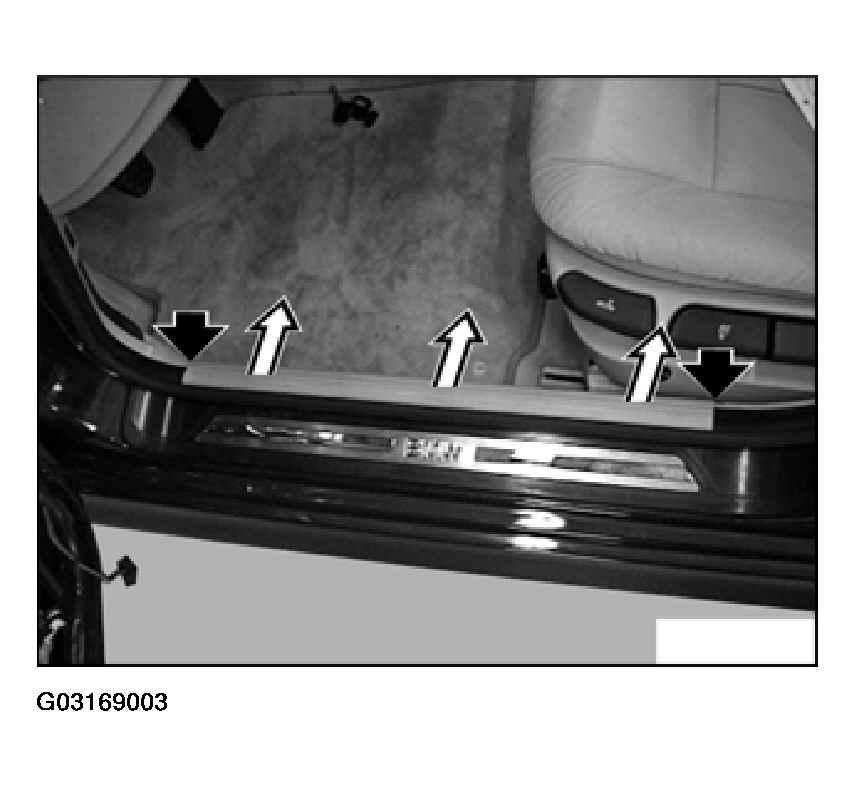

Fig 1: Lifting Clips Off Floor Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide clips onto rocker panel strip.

If necessary, replace damaged clips.

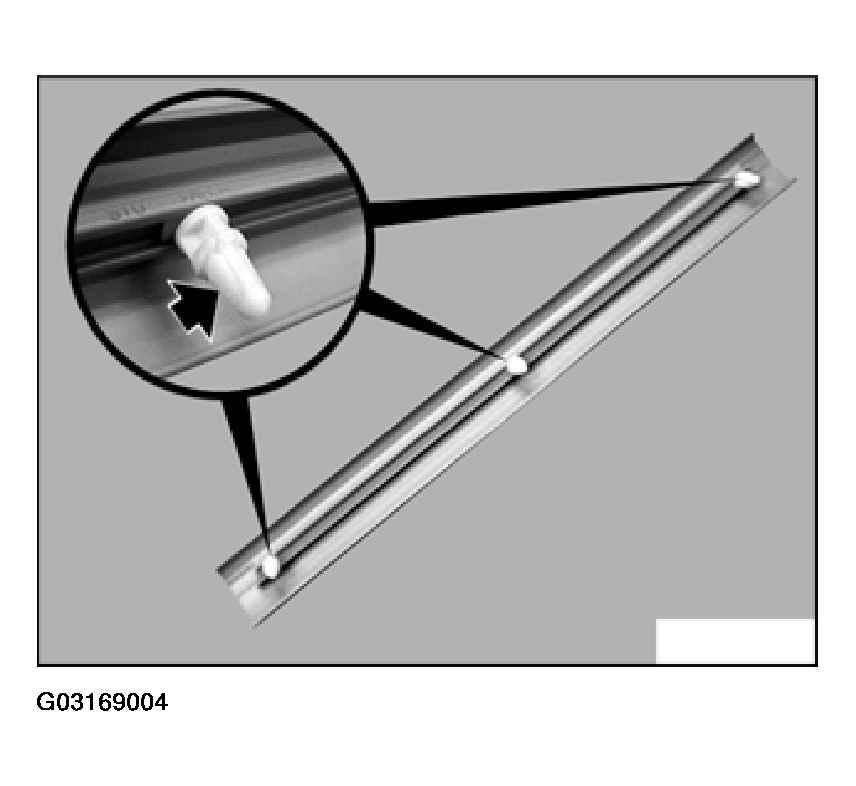

Fig 2: Sliding Clips Onto Rocker Panel Strip

Courtesy of BMW OF NORTH AMERICA, INC.
