51 45 031 Replace trim for instrument panel (lower section)

Remove trim for lower section of instrument panel, refer to 51 45 030 REMOVING AND INSTALLING TRIM FOR INSTRUMENT PANEL (LOWER SECTION) .

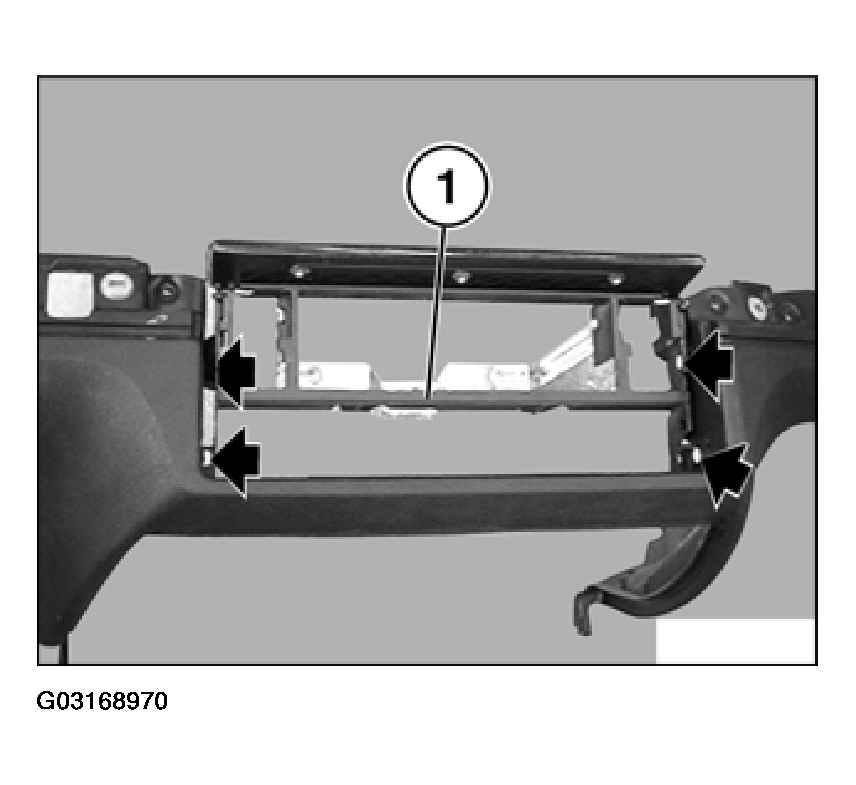

Unfasten screws and remove frame (1) for radio.

Fig 1: Removing Frame For Radio

Courtesy of BMW OF NORTH AMERICA, INC.

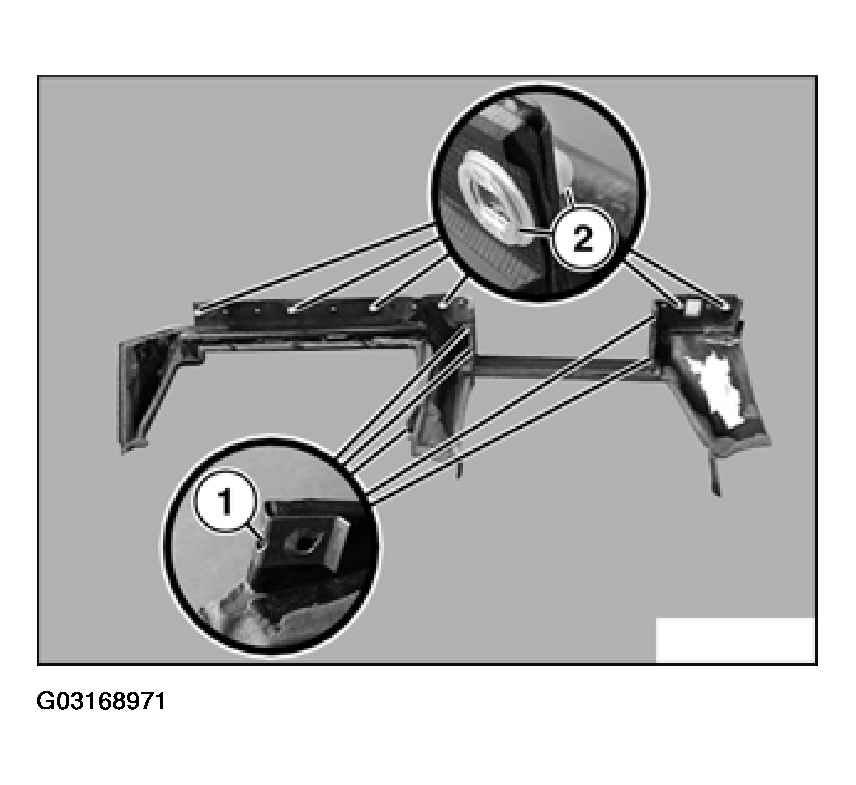

Remove all tab washers (1) and grommets (2) from lower section of instrument panel.

Fig 2: Removing Tab Washers And Grommets From Lower Section Of Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.
