51 48... Removing and installing/replacing sound insulation in front door, left or right

Remove front door trim panel, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

If necessary, remove airbag module in front door, refer to:

For year model 1999 to 2000, refer to SIDE AIR BAG MODULE .
For year model 2001, refer to SIDE AIR BAG MODULE .
For year model 2002, refer to SIDE AIR BAG MODULE .
For year model 2003, refer to SIDE AIR BAG MODULE .

Remove inside door handle on front door, refer to 51 21 225 REMOVING AND INSTALLING/REPLACING INSIDE DOOR HANDLE IN LEFT OR RIGHT FRONT DOOR .

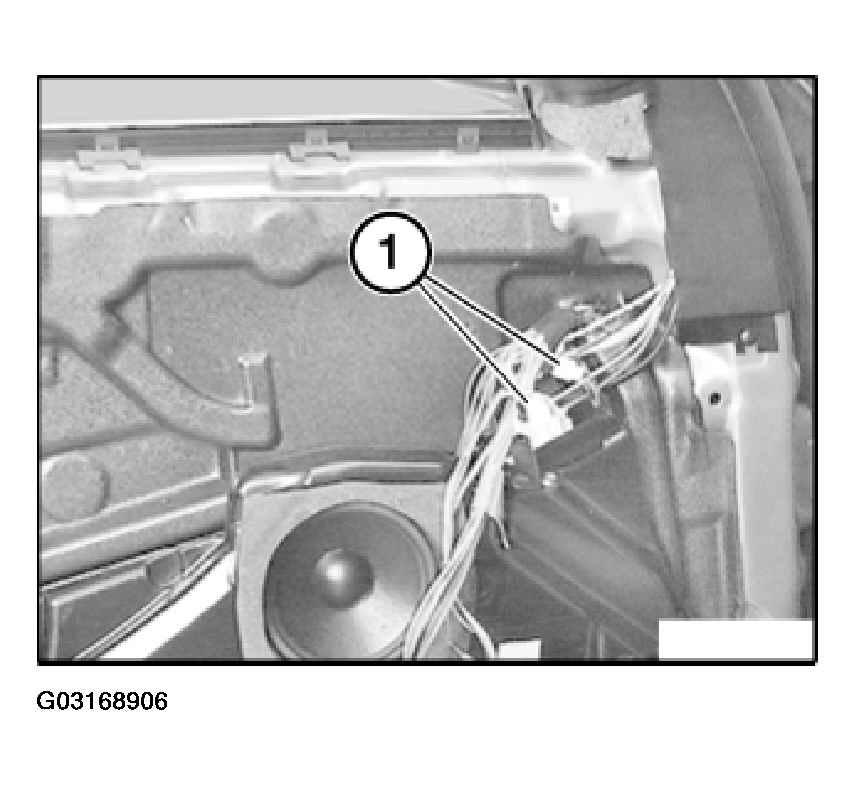

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

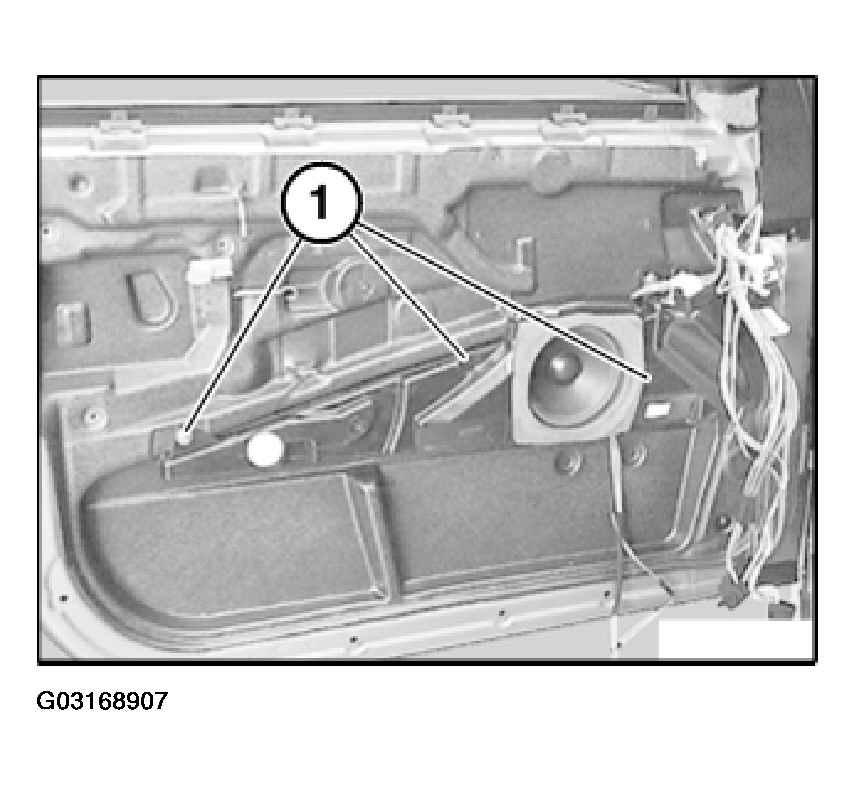

Release screws (2) and remove speaker unit.

Fig 2: Removing Speaker Unit

Courtesy of BMW OF NORTH AMERICA, INC.

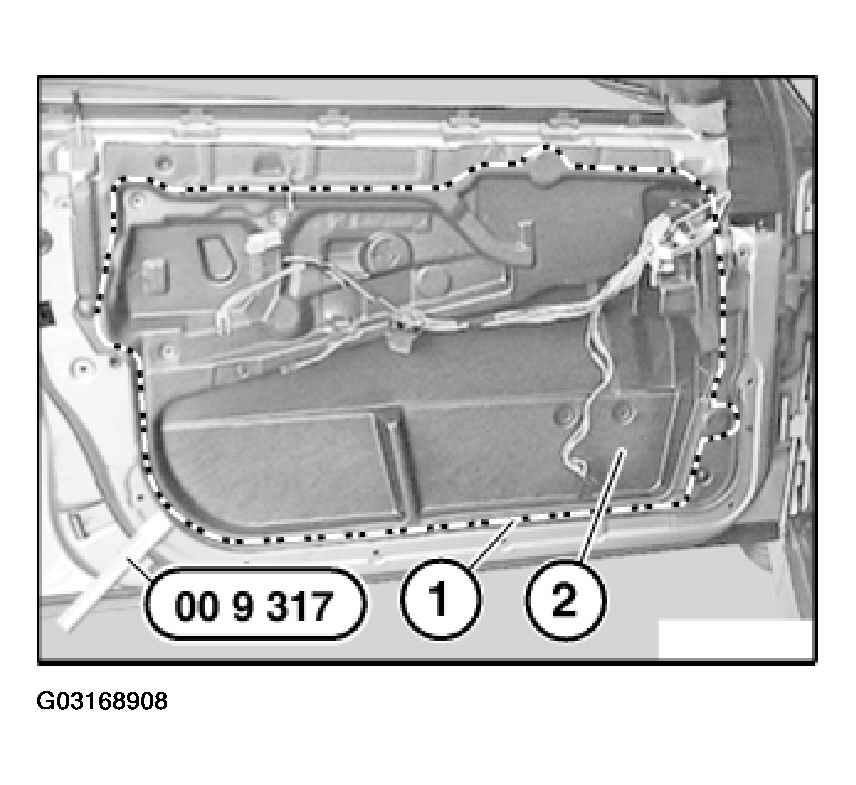

Using special tool 00 9 317 (trim panel wedge), lever out sealing bead (1) of sound insulation (2) completely or if necessary partially.

Fig 3: Levering Out Sealing Bead Of Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

In event of replacement or partial detachment, lay butylene tape on inner door plate or sound insulation.

Seal cable penetrations with butylene tape.

NOTE: Position of butylene tape (1) on inner door plate.

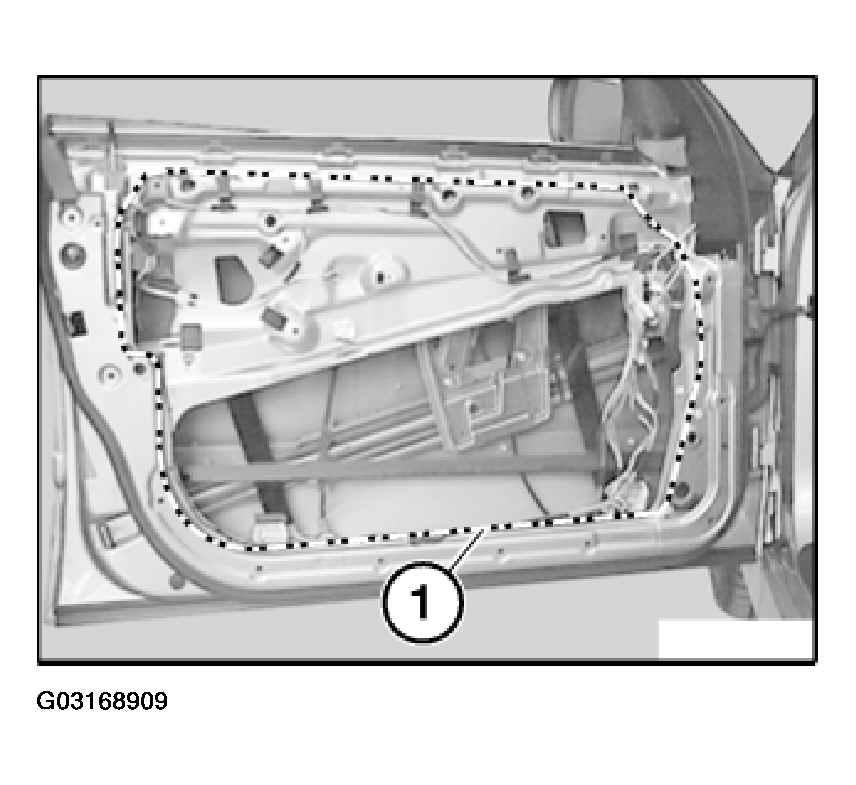

Fig 4: Sealing Cable Penetrations With Butylene Tape

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Position of butylene tape (1) on sound insulation (2).

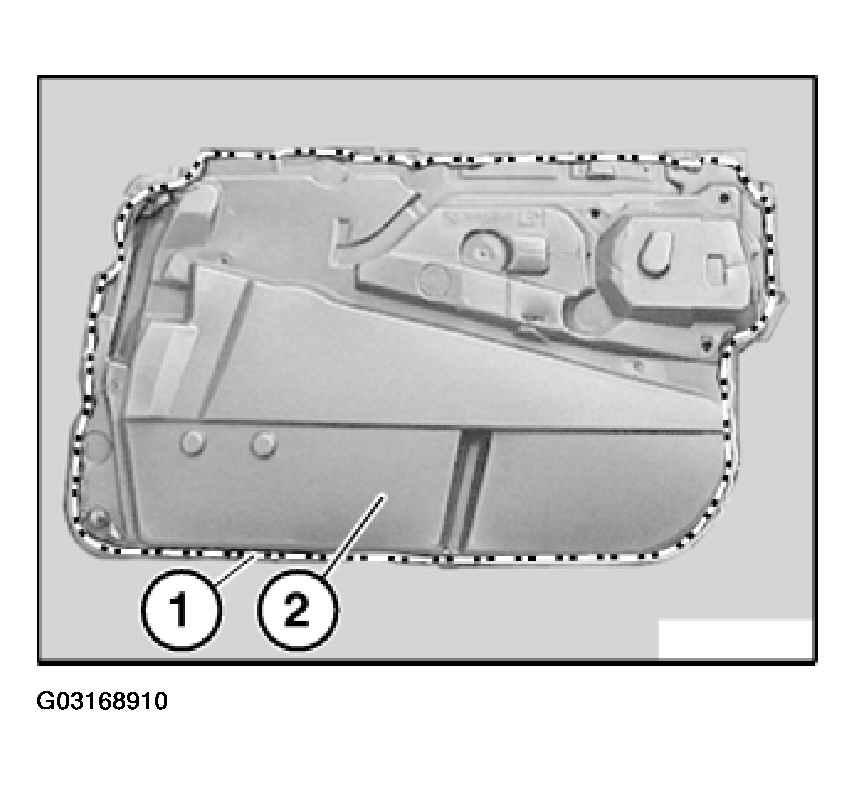

Fig 5: Positioning Of Butylene Tape On Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: When working with adhesive cleaners in enclosed rooms: Ensure room is well ventilated. The adhesive areas must be dry and free from dust and grease. After cleaning, do not touch the adhesive areas with bare hands.

If necessary, clean the specified adhesive area with adhesive cleaner.

Air drying time: 1 minute.

Lay butylene tape with 6 mm bore diameter in specified adhesive area.

Heat butylene tape (hot air blower) and press down firmly on sound insulation all round.

Contact pressure with hand roller: approx. 30 N/cm² .

Manual contact pressure: approx. 10 N/cm² .

NOTE: Firm thumb pressure has approx. 50 N/cm² .
