51 21 225 Removing and installing/replacing inside door handle in left or right front door

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Version up to 03/01 (Bowden cable with hook):

Pull Bowden cable (1) towards rear and unhook from door opener.

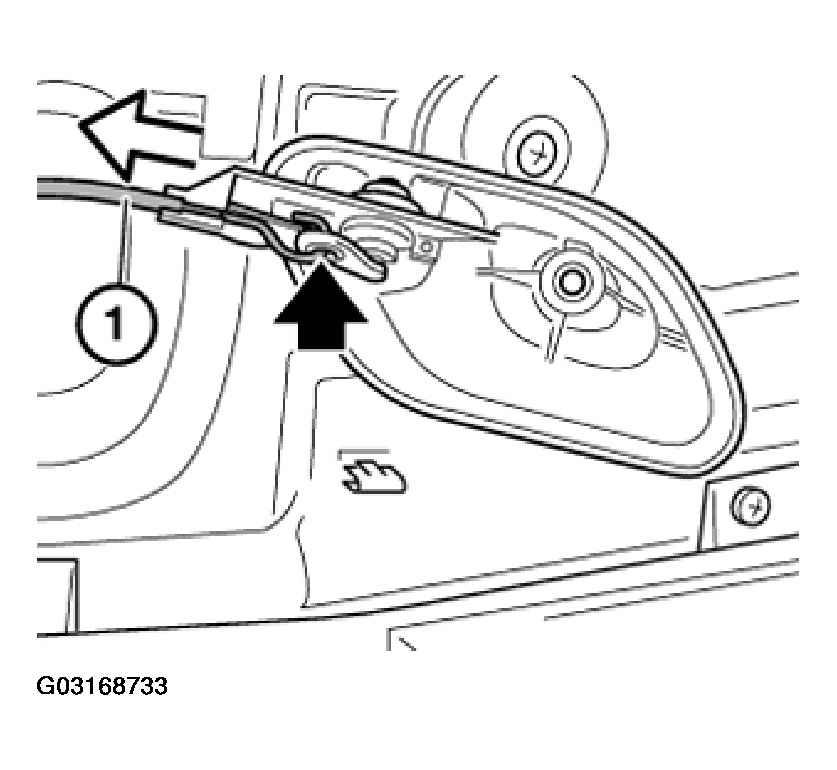

Fig 1: Unhooking Bowden Cable From Door Opener
G03168733Courtesy of BMW OF NORTH AMERICA, INC.

Version from 03/01 (Bowden cable with clip):

Unlock Bowden cable and unhook:

  1. Tighten unlocking lever (1).
  2. Lever out lock (2).
  3. Detach Bowden cable (3) towards rear/top.
  4. Adhesive tape (4) is only required for series production assembly.

Installation:

For installation, press unlocking lever (1) completely onto door opener (5).

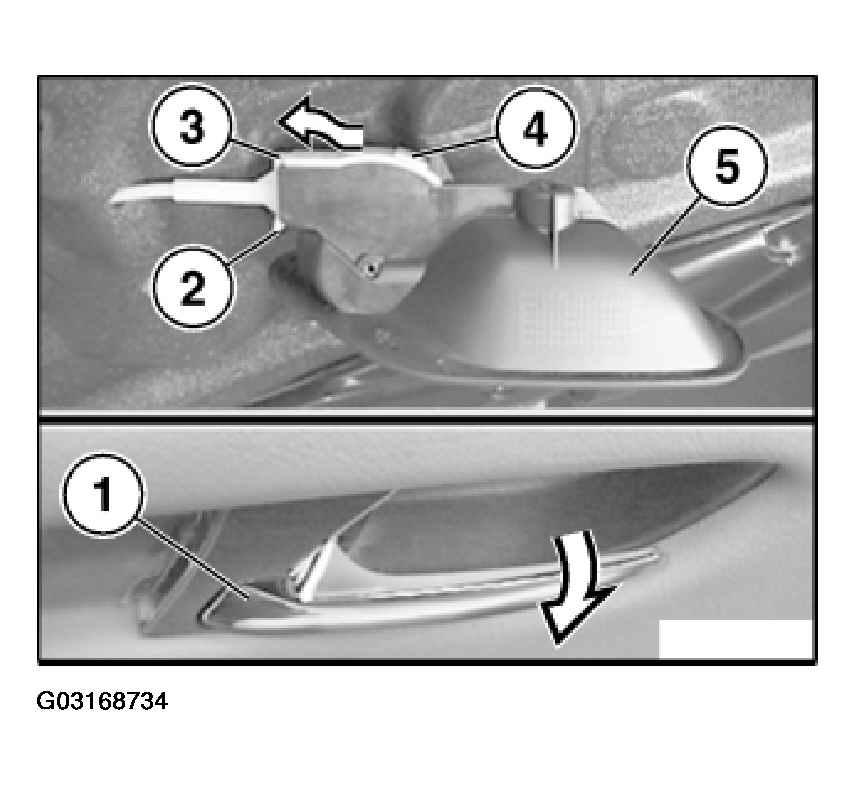

Fig 2: Tightening Unlocking Lever
G03168734Courtesy of BMW OF NORTH AMERICA, INC.
