51 37 000 Removing and installing complete power window lifter from rear left and right sides

Remove rear door window, refer to 51 34 171 REPLACING REAR LEFT OR RIGHT DOOR WINDOW .

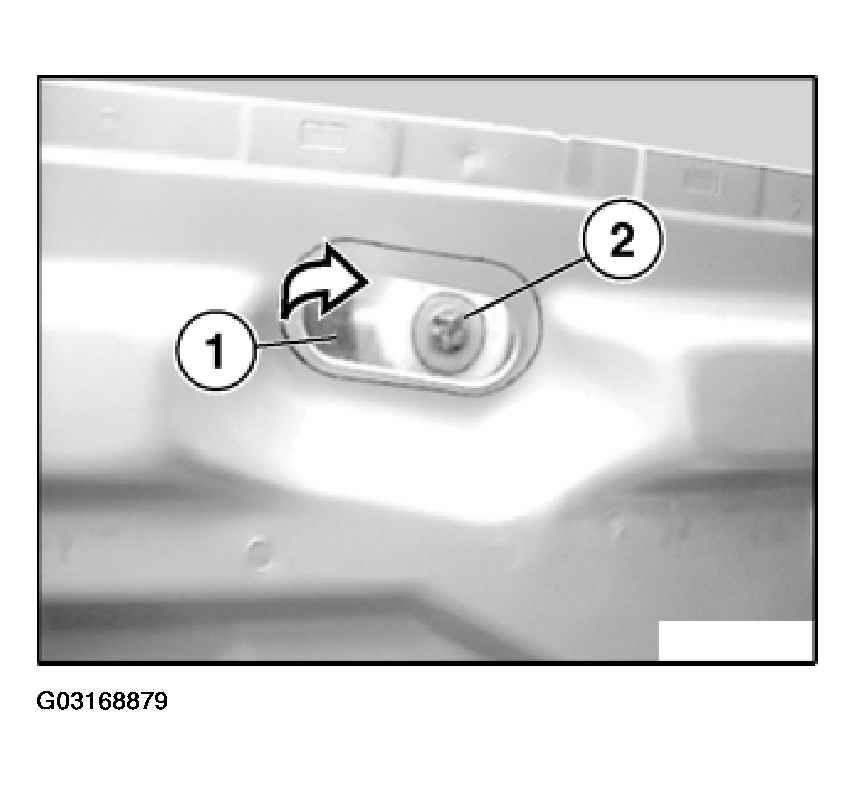

Detach sealing sheet (1) and release screw (2).

Installation:

Fit new sealing sheet (1) (leakage).

Fig 1: Fitting New Sealing Sheet

Courtesy of BMW OF NORTH AMERICA, INC.

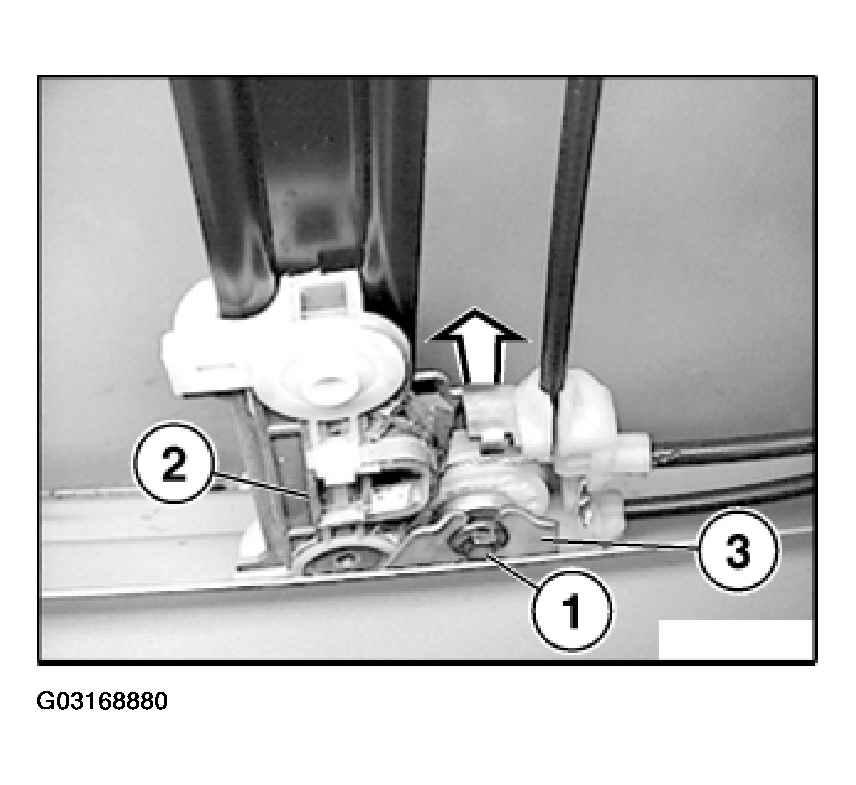

Release screw (1) and lift power window (2) out of mount (3).

Fig 2: View Of Power Window In Mount

Courtesy of BMW OF NORTH AMERICA, INC.

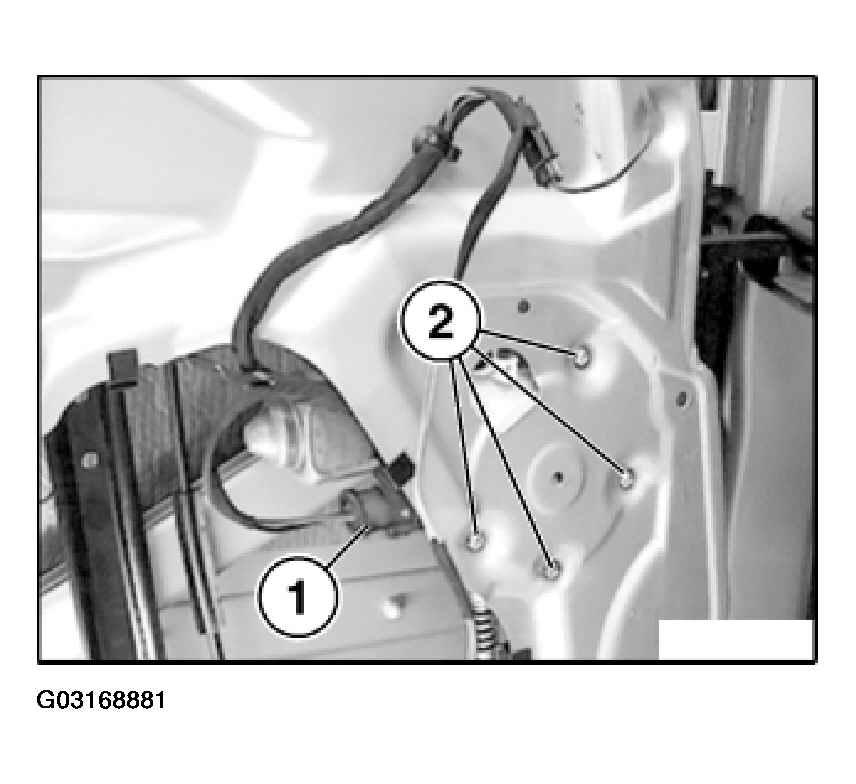

Unlock connector (1) and remove. Unfasten screws (2).

Fig 3: Unlocking Connector

Courtesy of BMW OF NORTH AMERICA, INC.

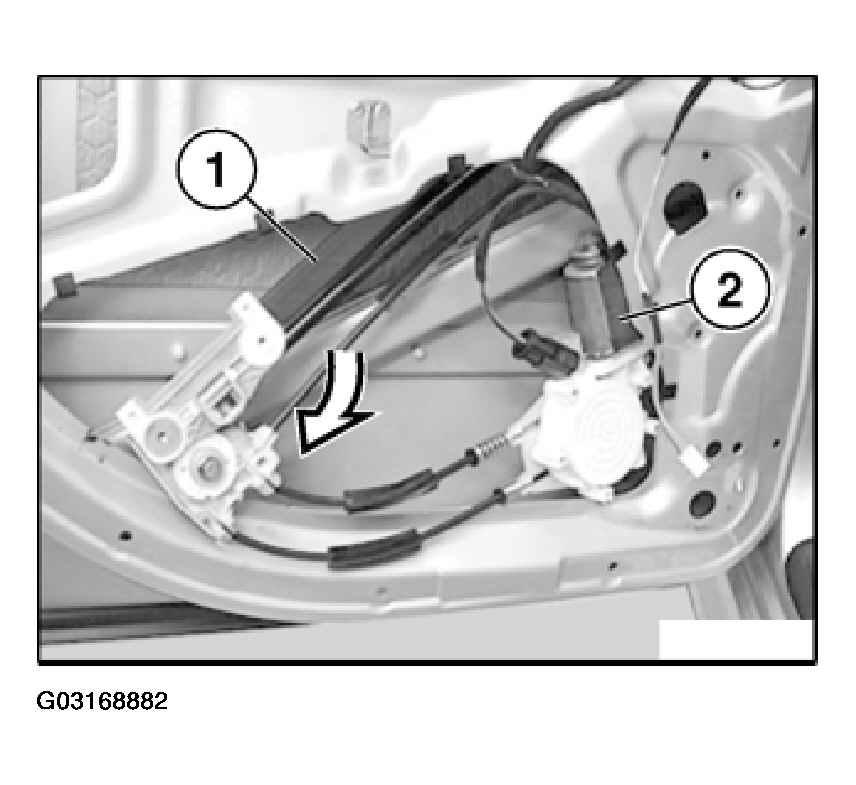

Remove power window lifter (1) with flat motor (2) from rear door.

Fig 4: Removing Power Window Lifter With Flat Motor

Courtesy of BMW OF NORTH AMERICA, INC.
