51 34 171 Replacing rear left or right door window

Open rear door window completely. Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove and install window cavity trim on outside of rear door, refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

Remove sound insulation on rear door, refer to 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN REAR DOOR, LEFT OR RIGHT .

Remove and install cover on fixed door window of inside rear door.

Release screws (1).

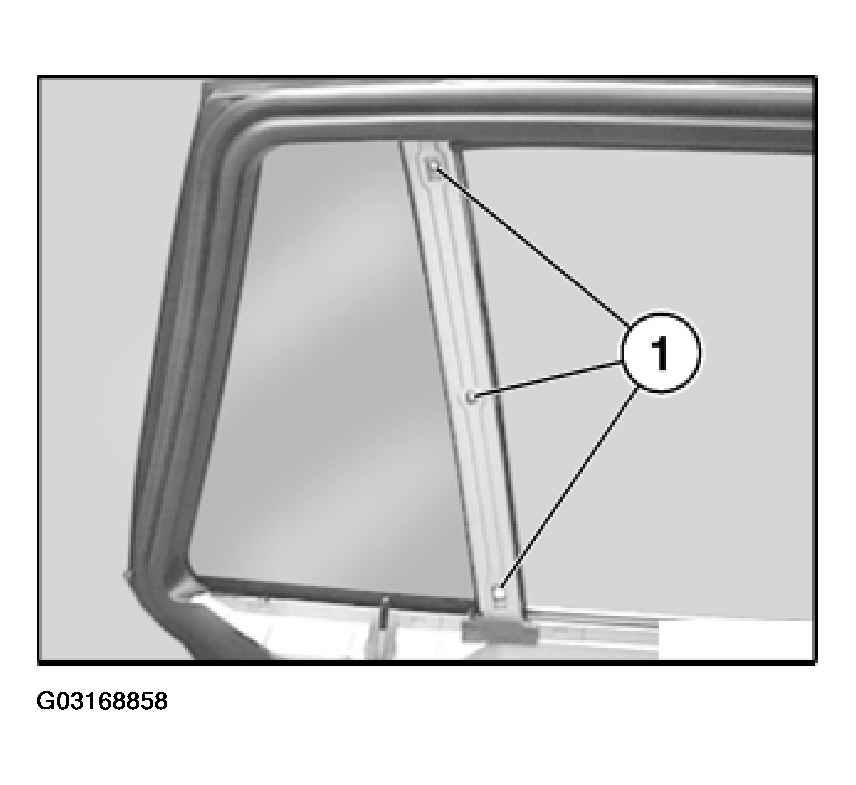

Fig 1: Releasing Screws
G03168858Courtesy of BMW OF NORTH AMERICA, INC.

Detach rubber guide (1) and remove trim (2) upwards.

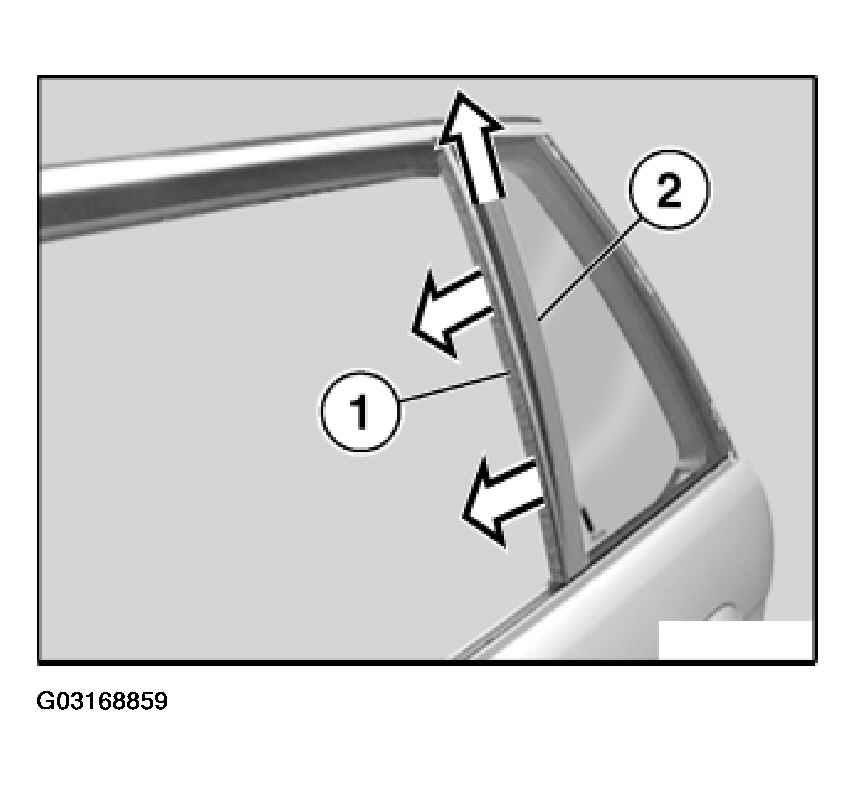

Fig 2: Detaching Rubber Guide And Removing Trim
G03168859Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and lift door window (2) upwards.

Installation:

Fit screw (1) with washer.

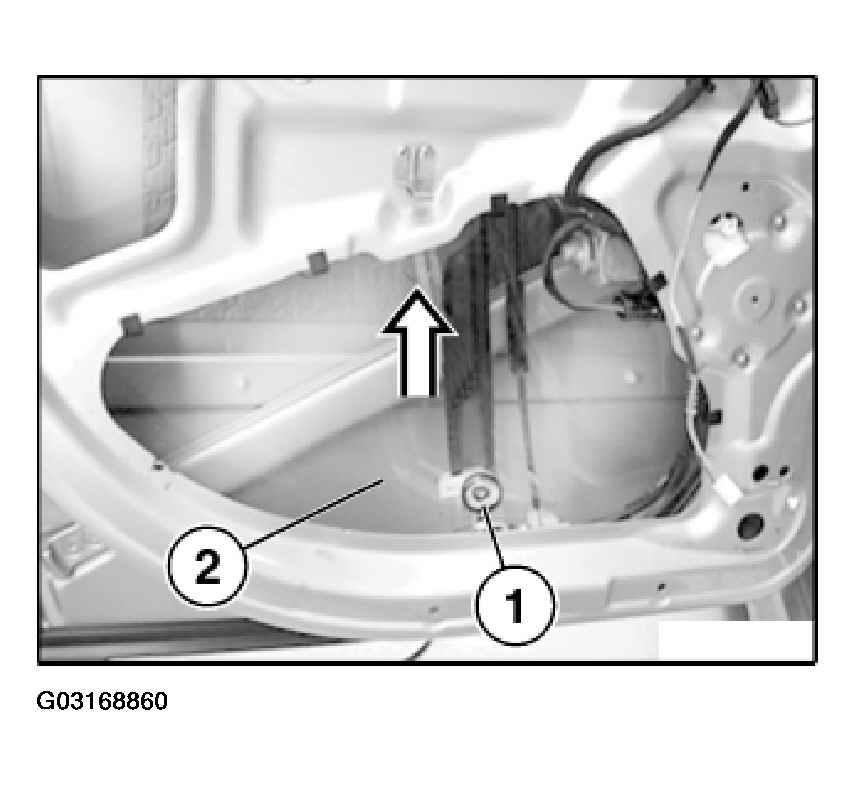

Fig 3: Fitting Screw With Washer
G03168860Courtesy of BMW OF NORTH AMERICA, INC.

Remove window glass by pulling upward at an angle.

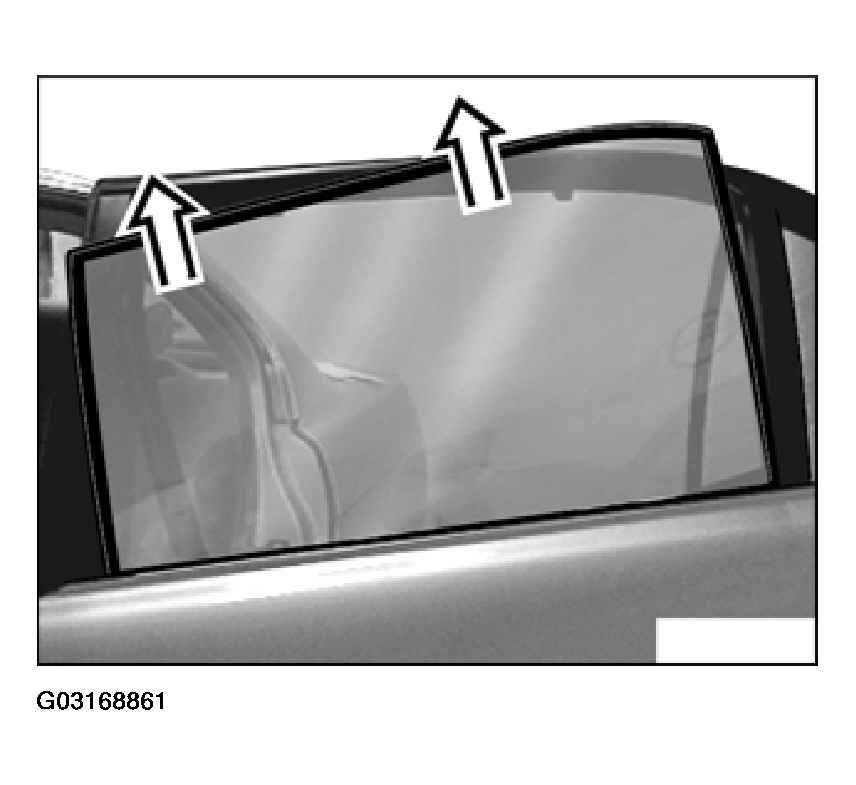

Fig 4: Removing Window Glass
G03168861Courtesy of BMW OF NORTH AMERICA, INC.
