51 22 200 Removing and installing / replacing outside handle and lock control on left or right rear door
Remove door trim panel, refer to 51 42 000 REMOVING AND INSTALLING REAR LEFT OR RIGHT DOOR TRIM PANEL .
Remove outside handle on rear door, refer to 51 22 170 REMOVING AND INSTALLING / REPLACING OUTSIDE HANDLE ON LEFT OR RIGHT BACK DOOR .
NOTE:
To release or partially detach sound insulation, follow procedure in 51 48... REMOVING AND INSTALLING/REPLACING SOUND INSULATION IN FRONT DOOR, LEFT OR RIGHT .
Partially pull off rear acoustic insulation and secure with adhesive tape.
Disconnect Bowden cable nipple (1) and Bowden cable core (2) from door lock
Introduction: ongoing from 5/96:

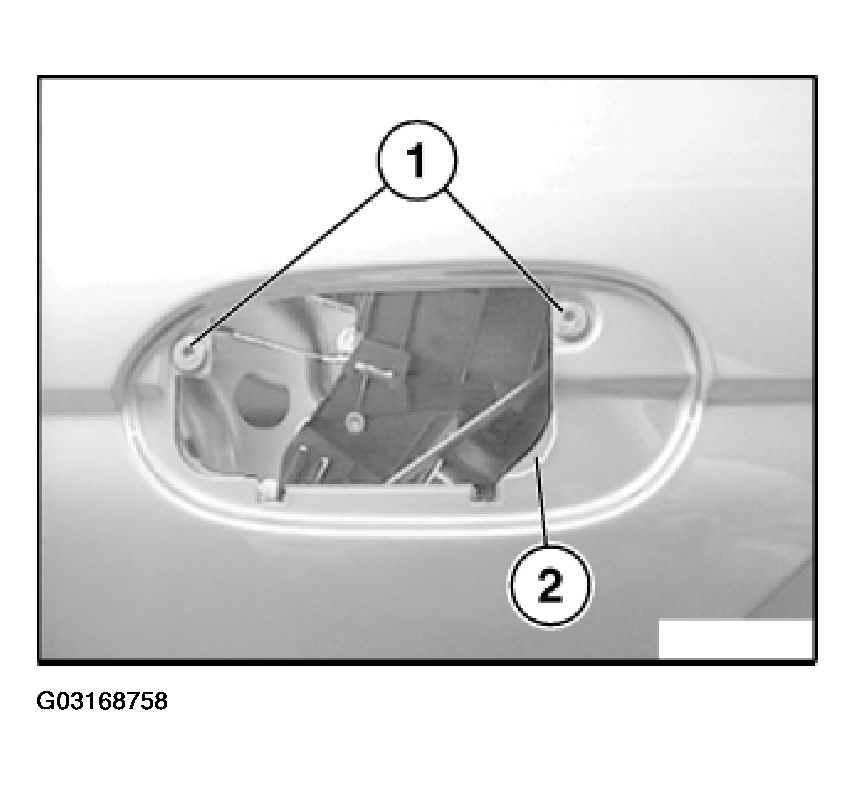

Unfasten screws (1) and remove lock control (2) (carrier for outside door handle).
Only replace:

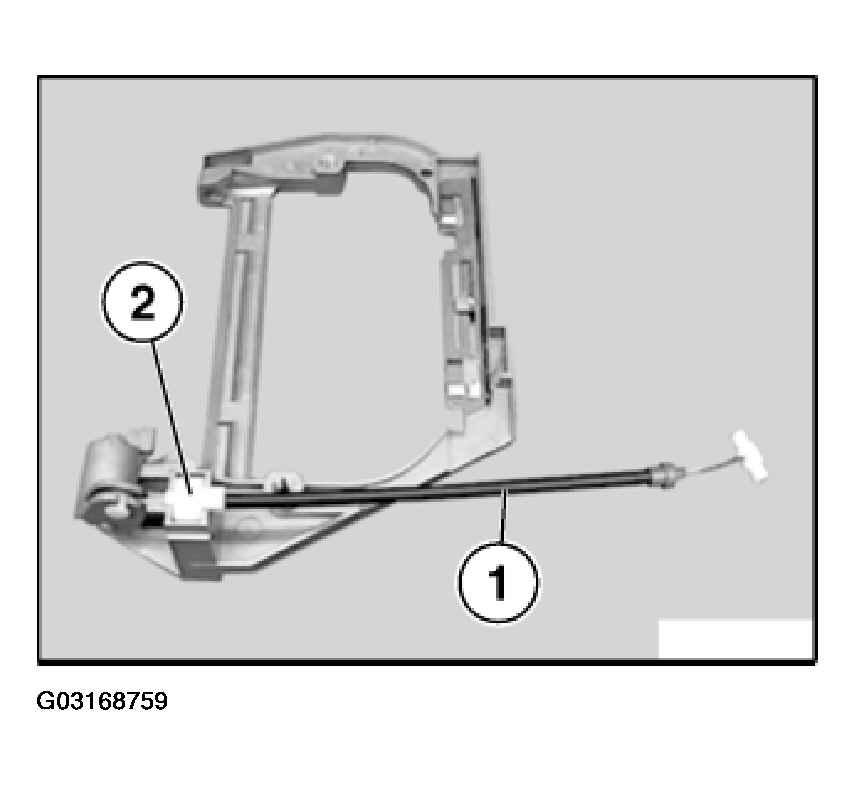

Unfasten clip (2) and disconnect Bowden cable (1) from lock control.
