51 12 801 Replacing bracket for rear bumper at left or right

(Bumper Removed)

If necessary, remove and refit complete rear bumper, refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Installation:

If necessary, mark position of bracket on body.

Unfasten screws and remove bracket (1).

Tightening torque, refer to 51 12 5AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

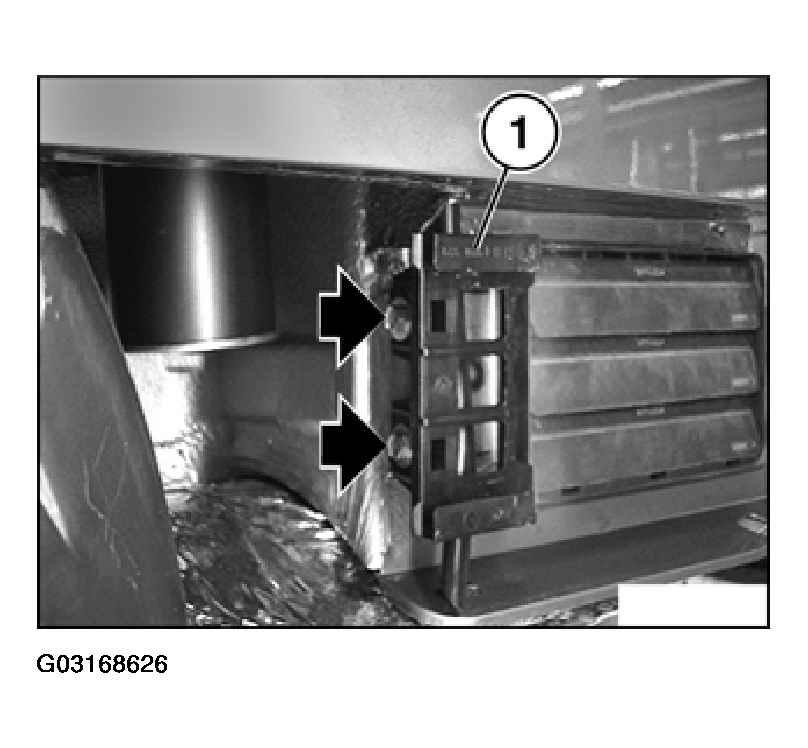

Fig 1: Unfastening Screws And Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment:

Distance (A) on side between bumper and body-cutout is to be the same.

Dimension (A) = 5 +/- 1 m.

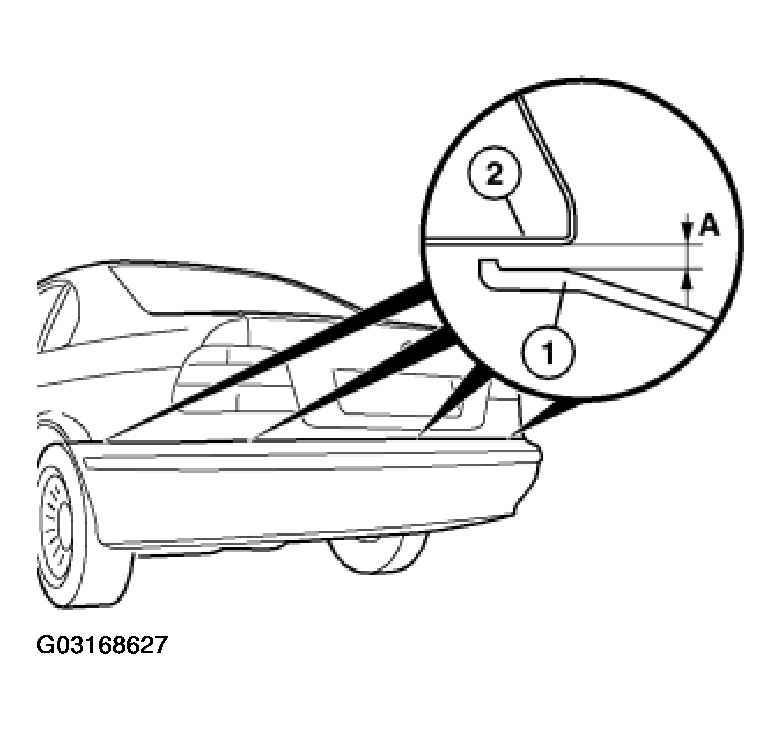

Fig 2: Identifying Ideal Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.
