51 12 000 Removing and installing complete rear bumper

NOTE: Version with trailer coupling: Remove finisher strip.

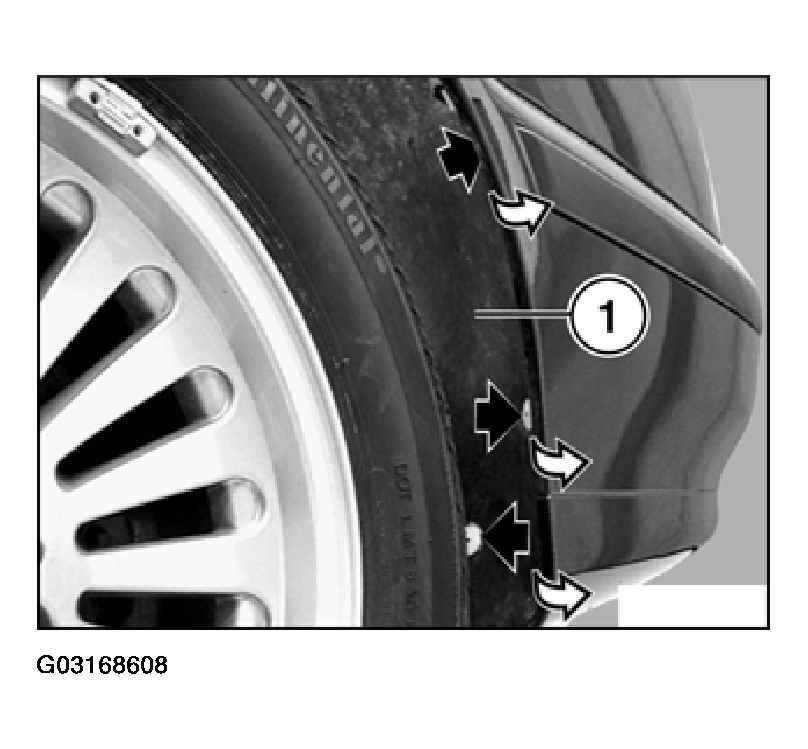

Unfasten left/right expanding rivets and lift wheel arch finisher (1) to one side to remove.

Fig 1: Removing Wheel Arch Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

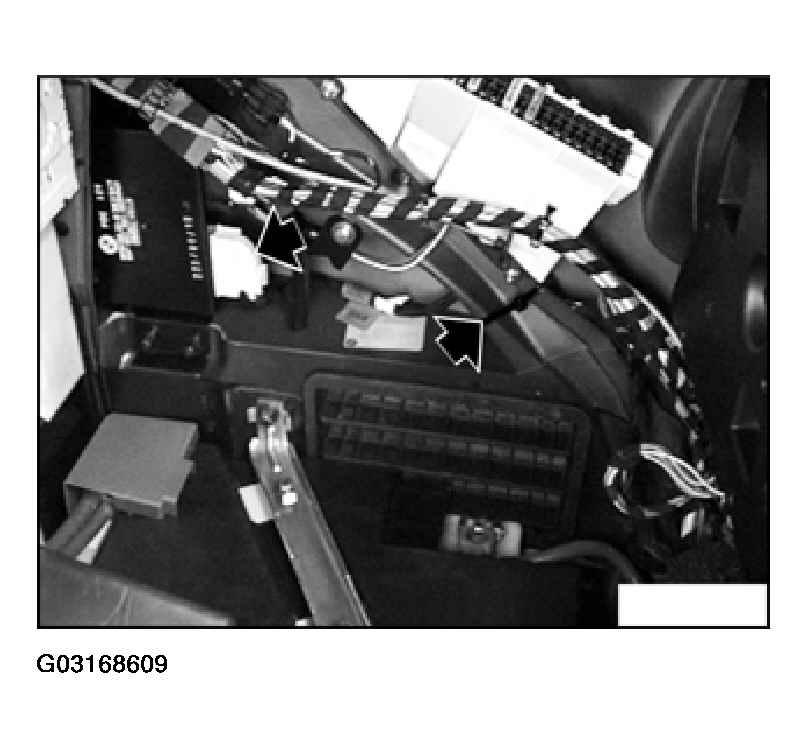

Unfasten cable connector.

Unfasten connector, remove and expose the cable.

Fig 2: Unfastening Connector, Removing And Exposing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

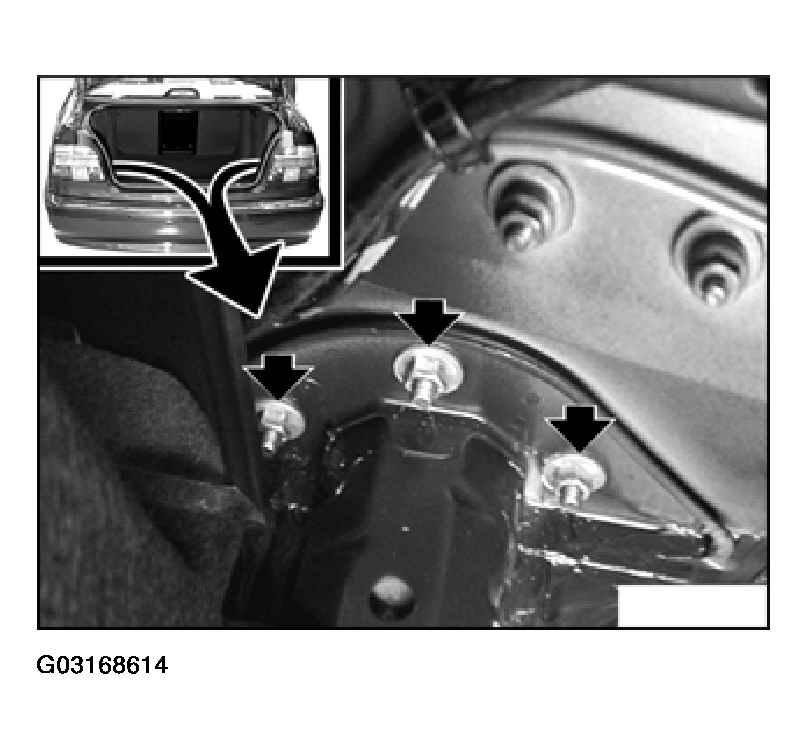

Unfasten inside left/right nuts.

Fig 3: Removing Inside Left/Right Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Version without Park Distance Control (PDC):

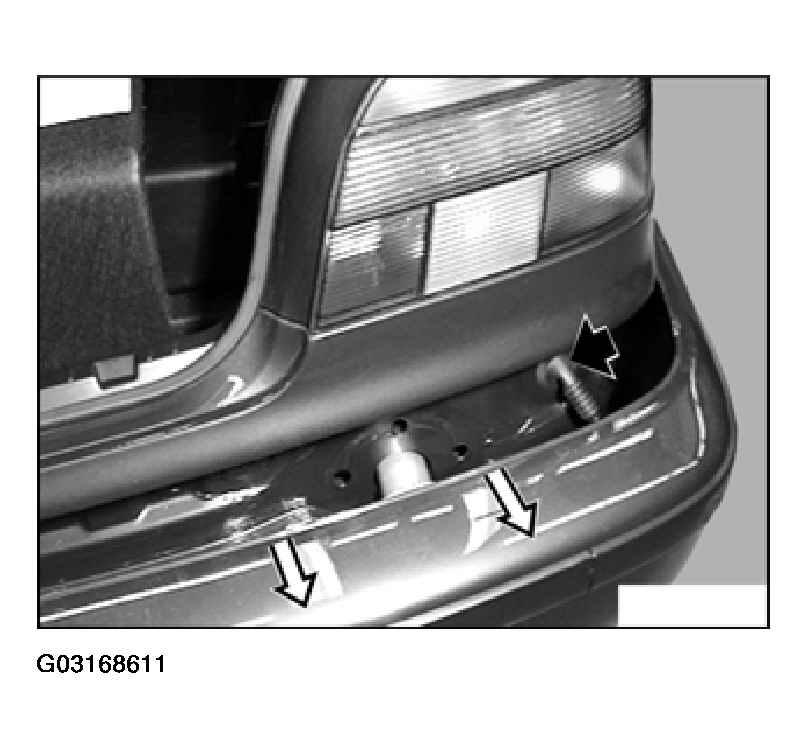

Pull bumper backwards to remove.

Fig 4: Removing Rear Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

Pull bumper backwards slightly and remove cable grommet and cable.

Pull bumper backwards to remove.

Installation:

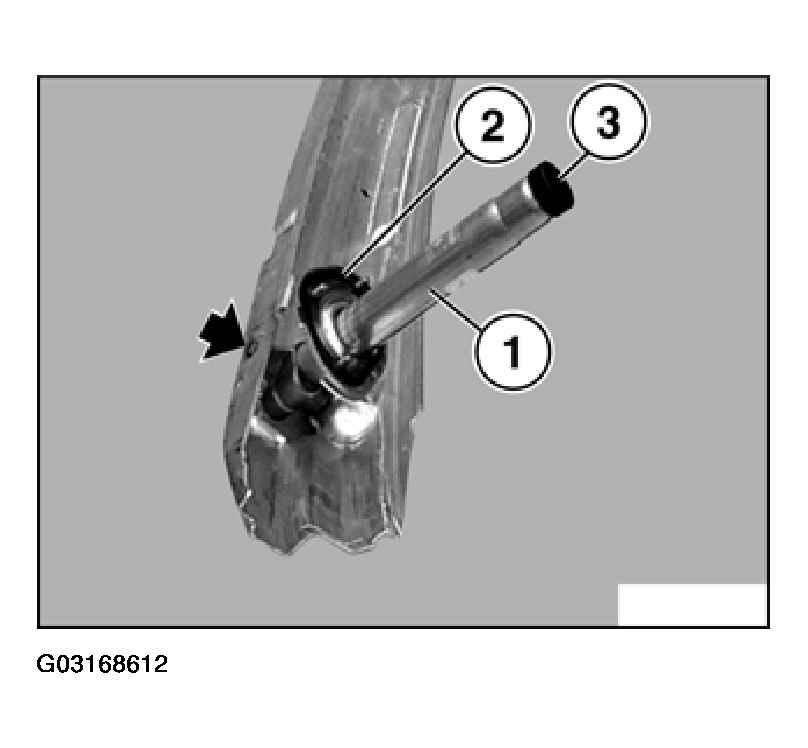

Mount seal (2) on shock absorber (1)

Fit protective cap (3) to right shock absorber (1).

Fig 5: Mounting Seal On Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

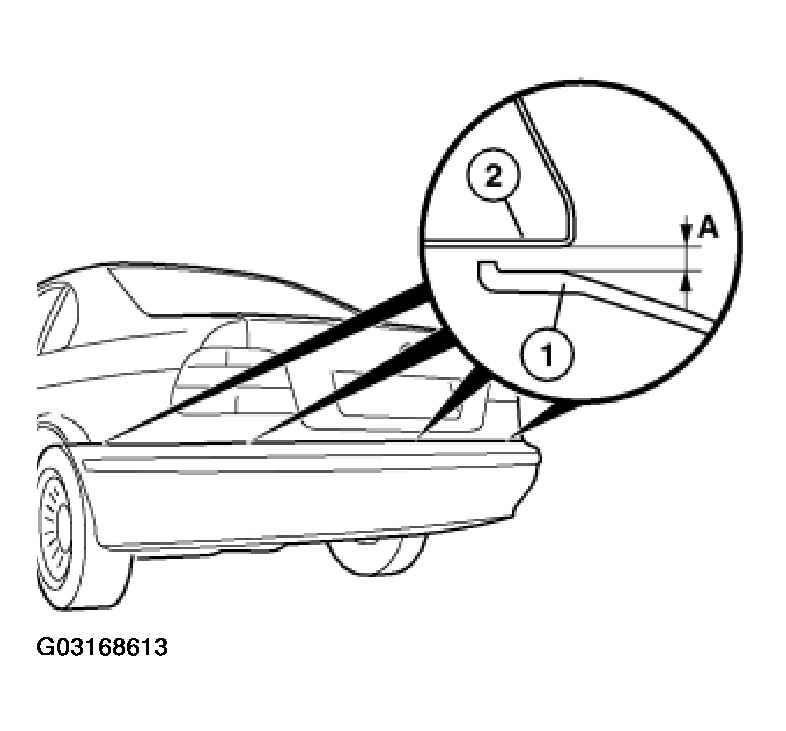

Ideal adjustment:

Gap (A) should be uniform down full length between bumper and aperture in body.

Dimension (A) = 5 +/- 1 mm.

Fig 6: Identifying Ideal Adjustment

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen left/right inner nuts and adjust height of bumper.

Fig 7: Loosening Left/Right Inner Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

For tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .
