51 12 001 Replacing rear bumper

Remove plastic insert (1).

Version with PDC:

If necessary, feed out cable(s) and ultrasonic converter(s) from bumper.

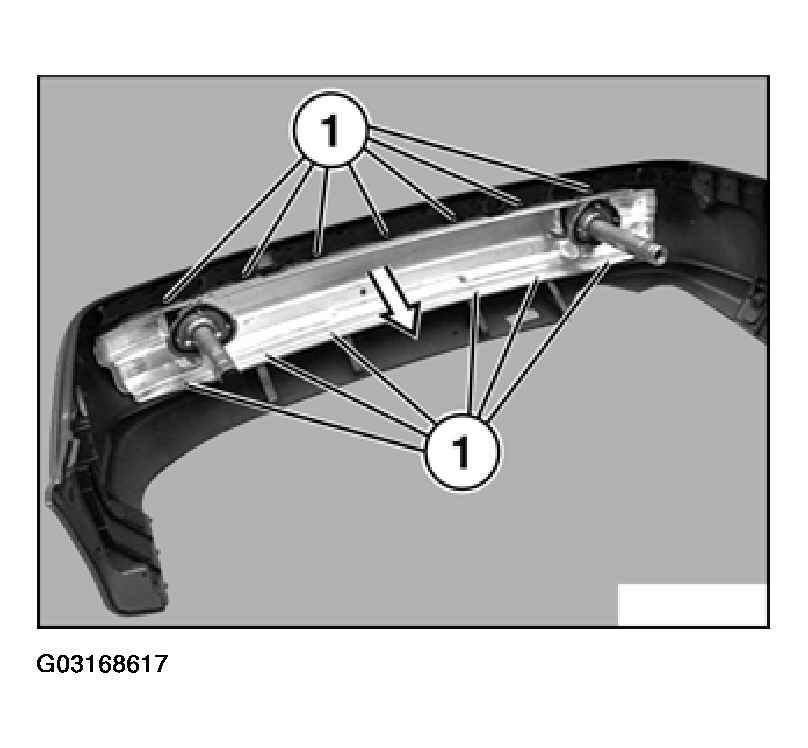

Fig 1: Removing Plastic Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets (1) and remove heat shield (2).

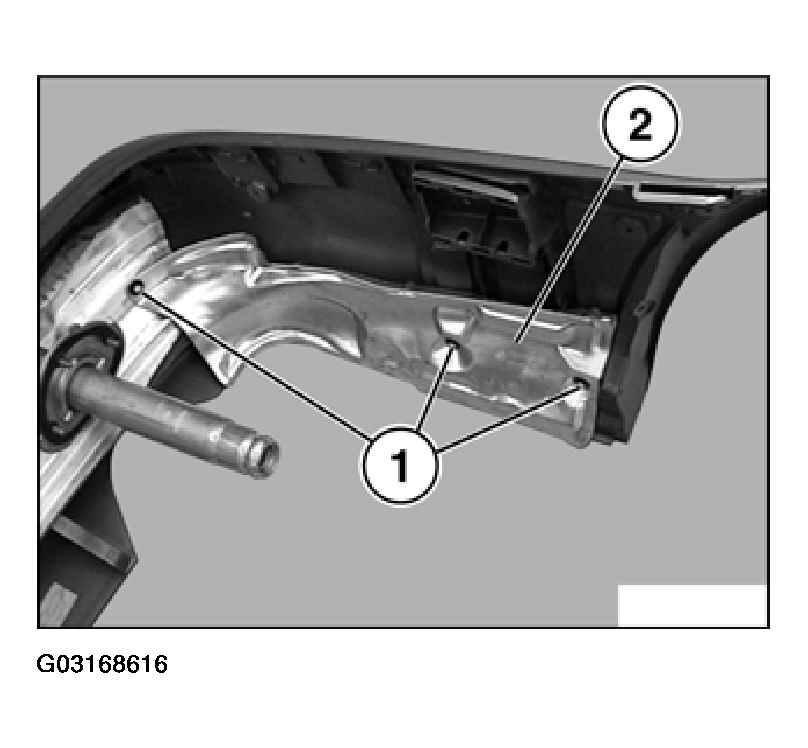

Fig 2: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten expanding rivets (1) and remove center section of bumper (support beam).

Installation:

Place clips in water for a while.

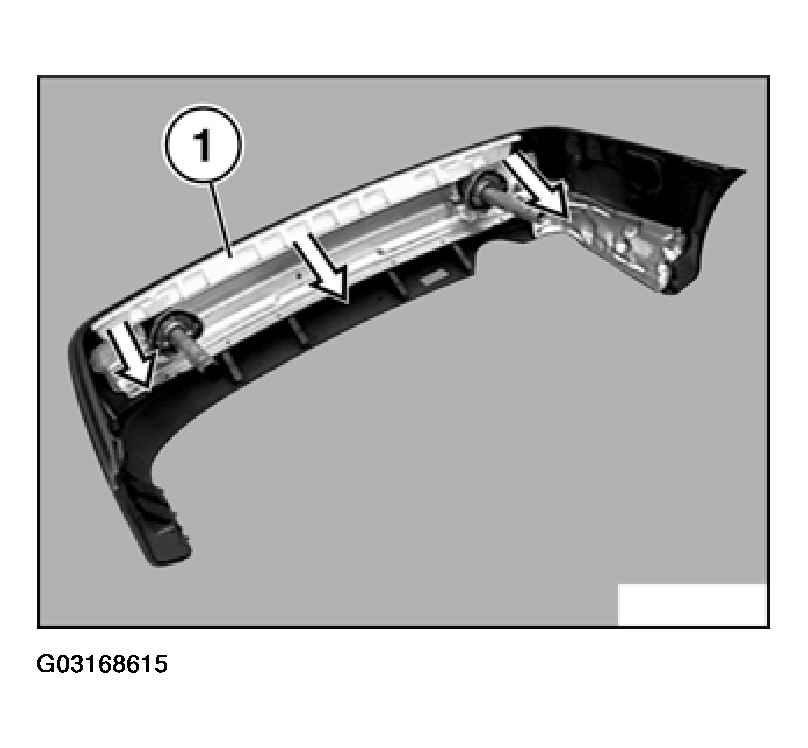

Fig 3: Removing Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Only for replacing rear bumper trim and replacing rear bumper:

Remove rubbing strip for bumper at rear side left and right. Refer to 51 12 REAR BUMPER .

NOTE: The work for replacing rear bumper trim ends here.

Unfasten screw and remove left/right shock absorber (1).

Installation:

If necessary, fit new seal (2) on shock absorber (1).

In addition on right side:

If necessary, fit new cover (3) on shock absorber (1).

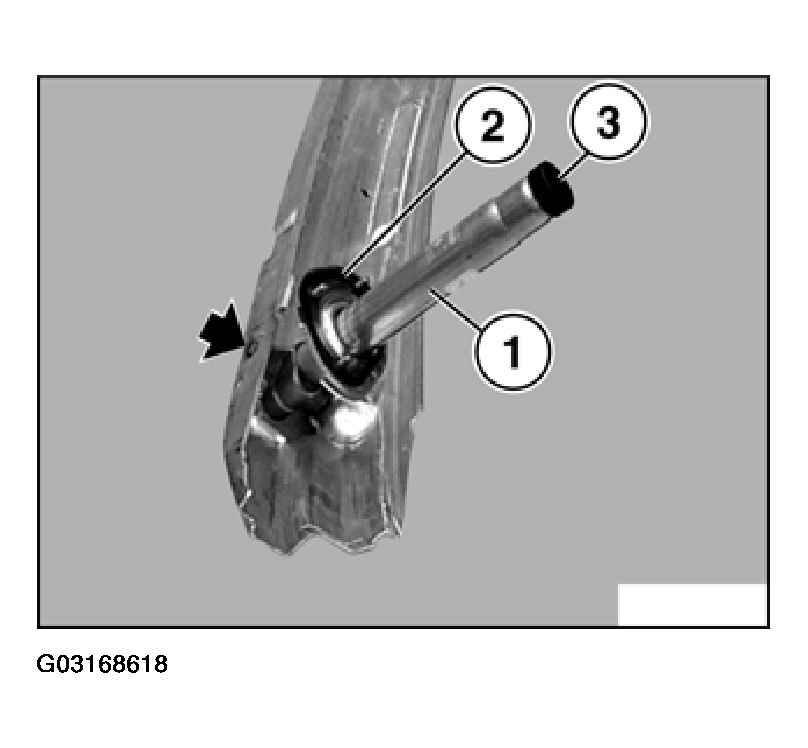

Fig 4: Removing Left/Right Shock Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After installing bumper, firmly tighten screw on shock absorber, left/right sides.

Tightening torque, refer to 51 12 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

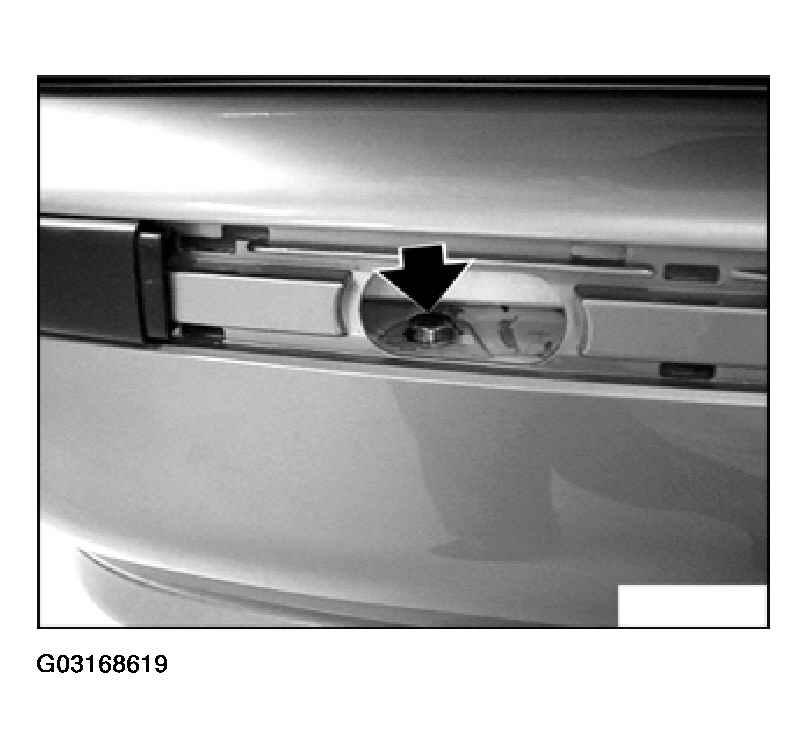

Fig 5: Tightening Screw On Shock Absorber
