51 16 201 Replacing oddments tray

Version with can holder:

If necessary open both can holders (1) slightly.

Unfasten screws (2), lift can holder to one side and remove.

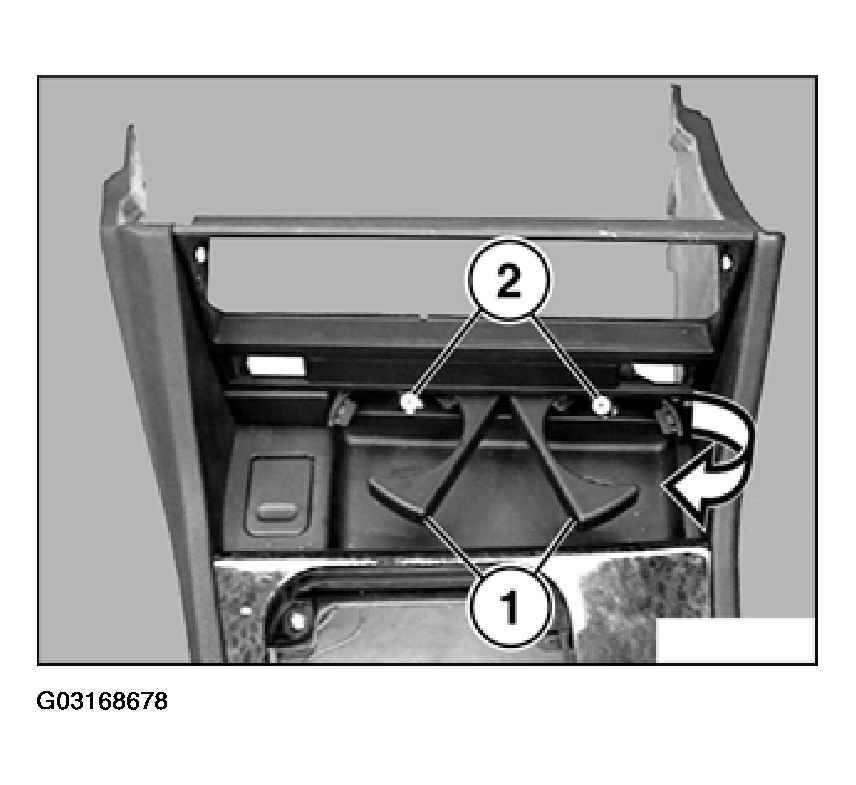

Fig 1: Removing Can Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove frame (2) for heater controls.

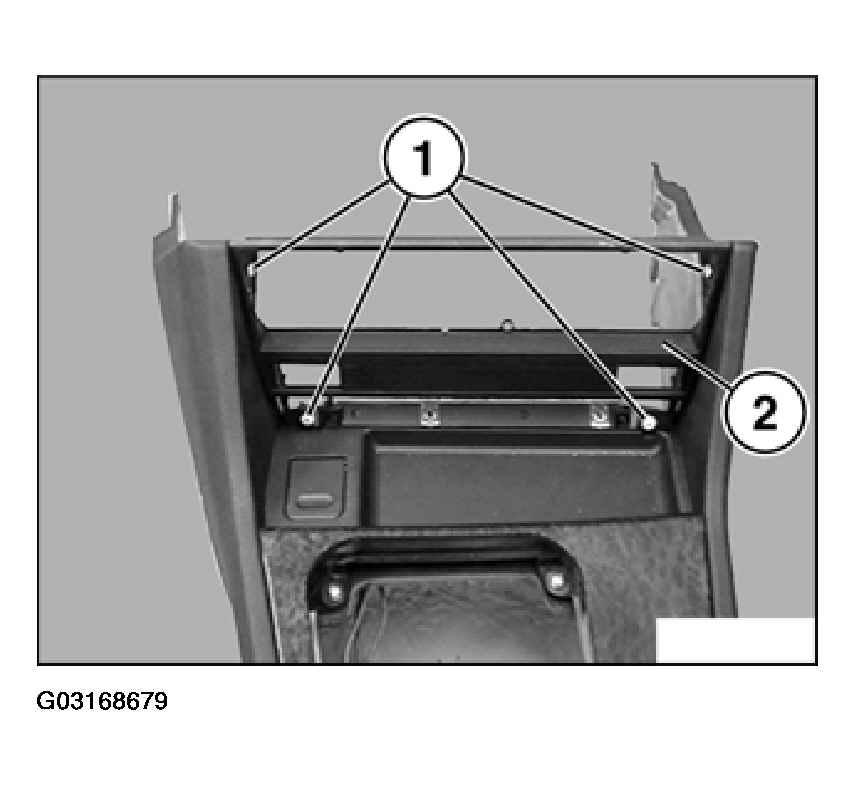

Fig 2: Removing Frame For Heater Controls

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolts (1).

Unfasten connector (2), remove and lift off oddments tray (3) with cigar lighter.

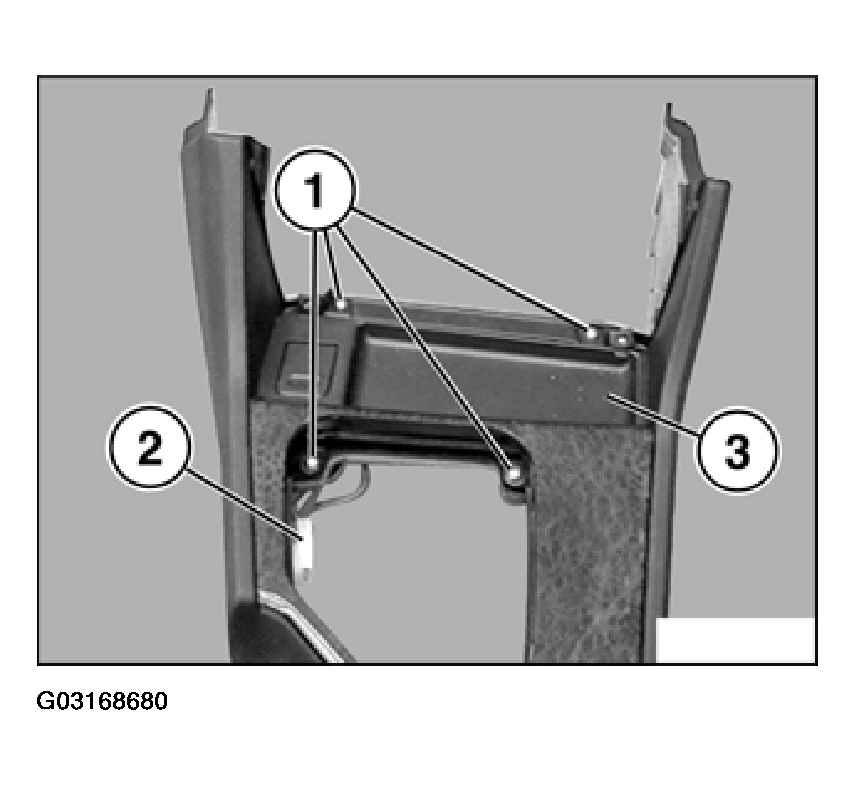

Fig 3: Removing Oddments Tray With Cigar Lighter

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip insert in oddments tray and remove.

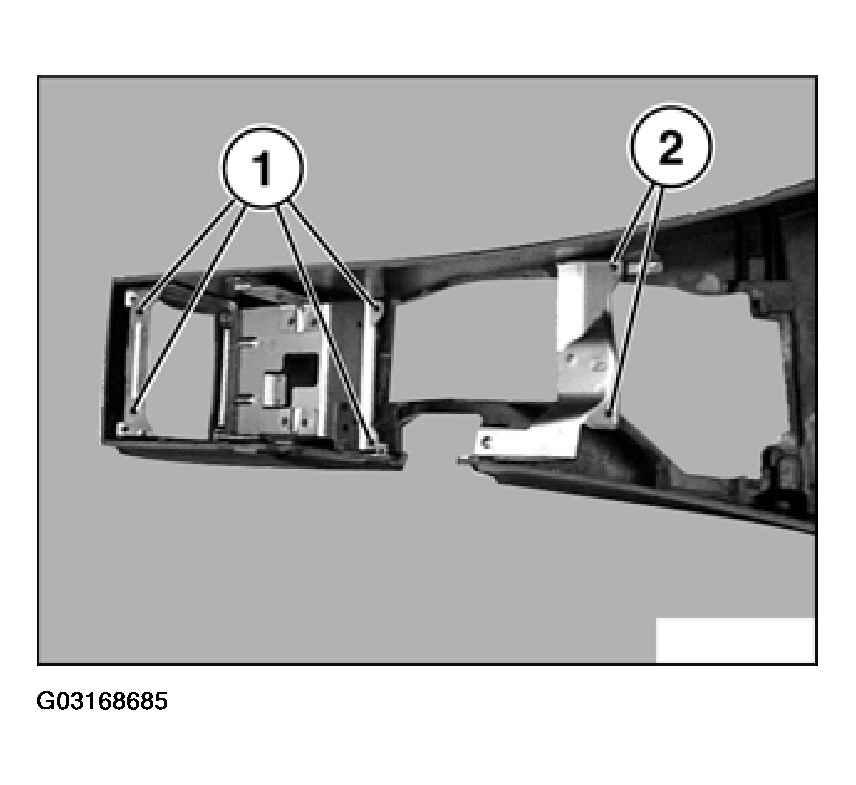

Fig 4: Removing Insert In Oddments Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and nuts (2).

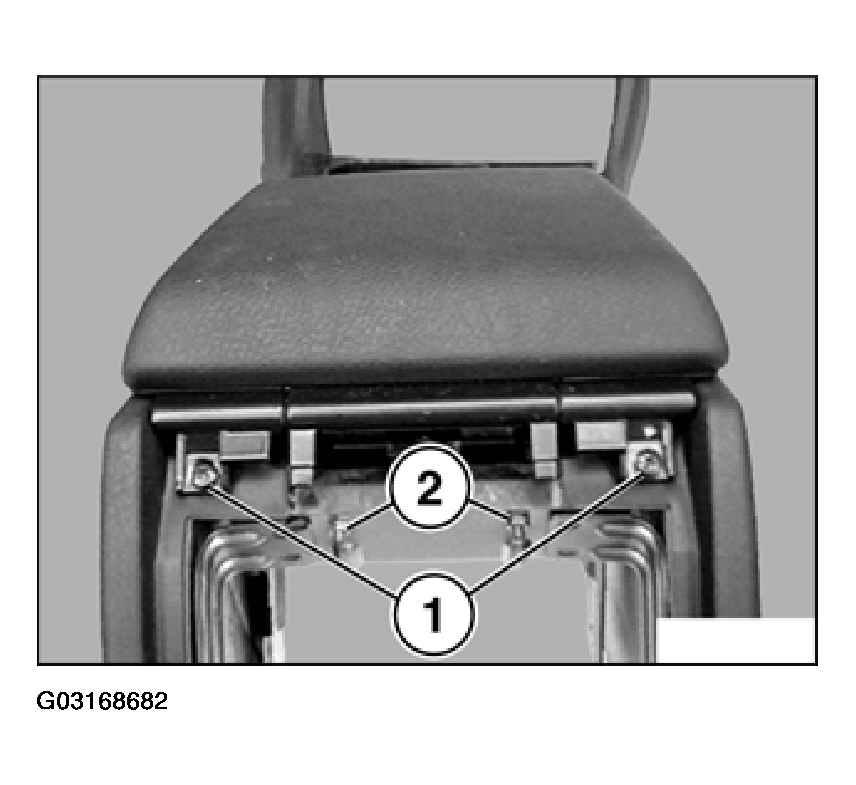

Fig 5: Unfastening Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Open cover (1) and remove oddments tray (2) (rear).

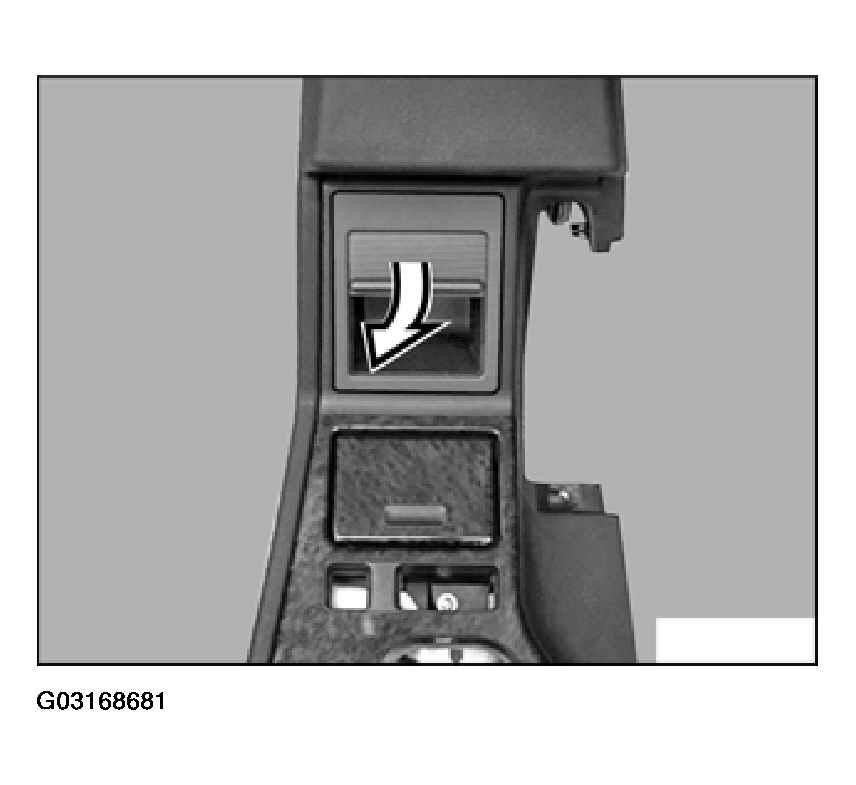

Fig 6: Removing Oddments Tray (Rear)

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove insert (2) from center console.

Fig 7: Removing Insert From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (1) and remove rear bracket. Unfasten screws (2) and remove front bracket.

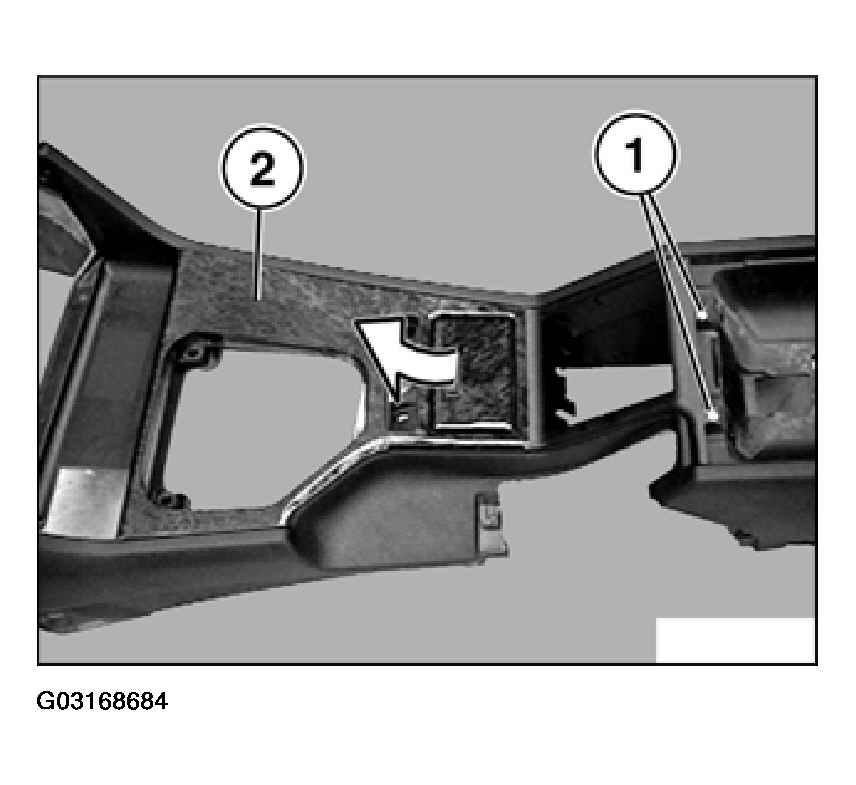

Fig 8: Removing Front Bracket

Courtesy of BMW OF NORTH AMERICA, INC.
