51 45 185 Removing and installing/replacing trim for pedal assembly

Remove side carpet on left side of center console. Refer to 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY .

Turn toggle (1) and remove.

Release screws (2) and (3).

Lower trim for pedal assembly (5) a little and disconnect plug connections from gong (4).

Remove trim for pedal assembly (5) towards bottom.

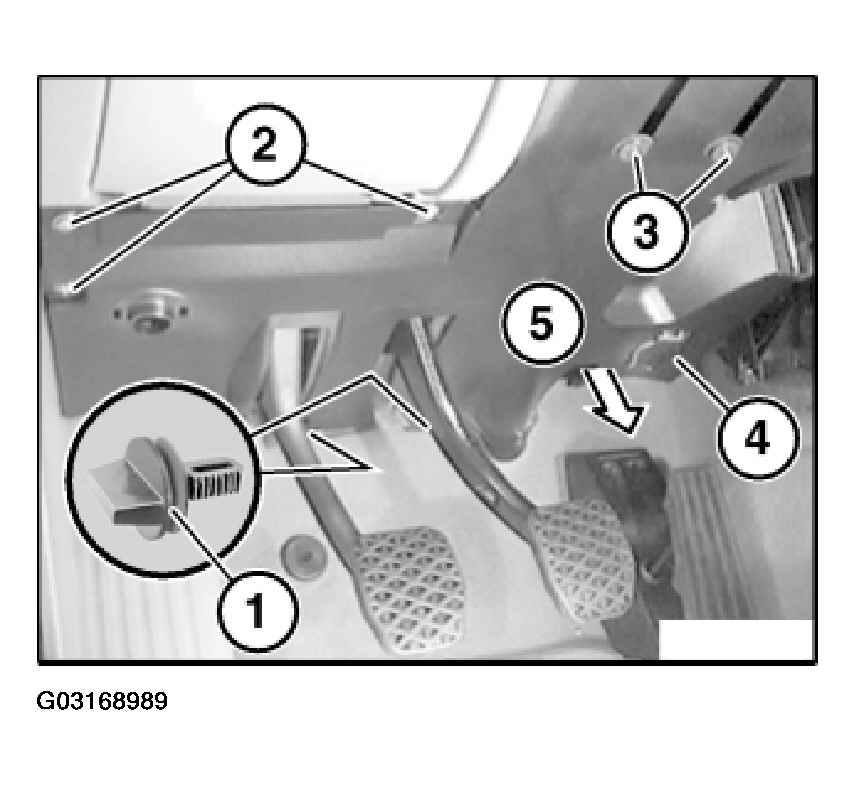

Fig 1: Removing Trim For Pedal Assembly Towards Bottom

Courtesy of BMW OF NORTH AMERICA, INC.
