51 33 000 Removing and installing electric window regulator in left or right front door
Disconnect negative battery lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY . Removing and installing airbag in left or right front door,
- For year model 1999 to 2000, refer to AIR BAG SAFETY PRECAUTIONS .
- For year model 2001, refer to AIR BAG SAFETY PRECAUTIONS .
- For year model 2002, refer to AIR BAG SAFETY PRECAUTIONS .
- For year model 2003, refer to AIR BAG SAFETY PRECAUTIONS .

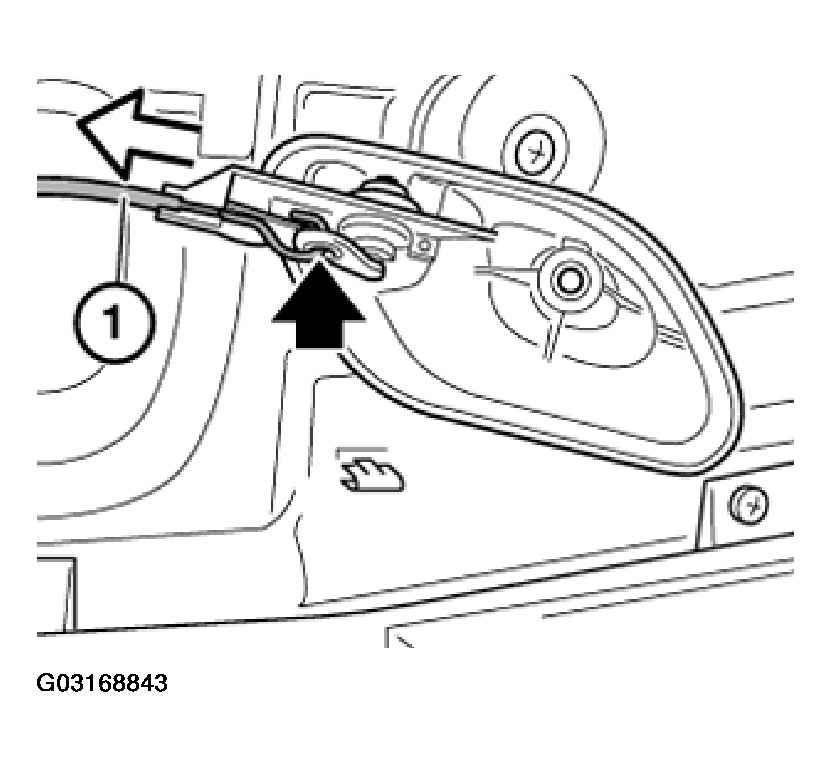

Pull Bowden cable (1) backwards, detach from door handle and remove.

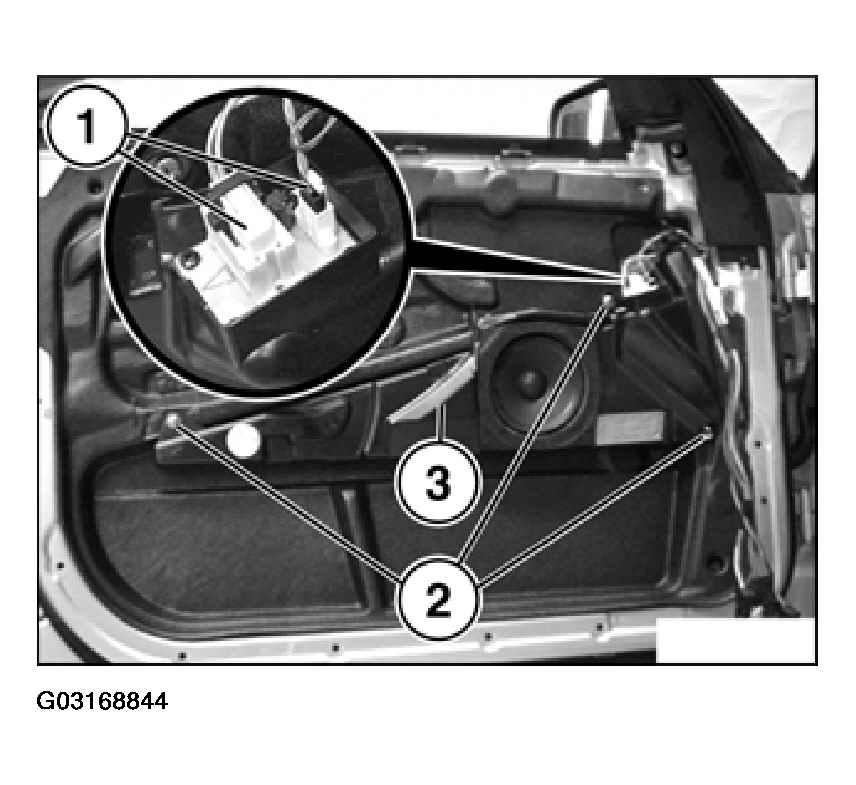

Remove connector (1). Unfasten screws (2) and remove loudspeaker box (3).

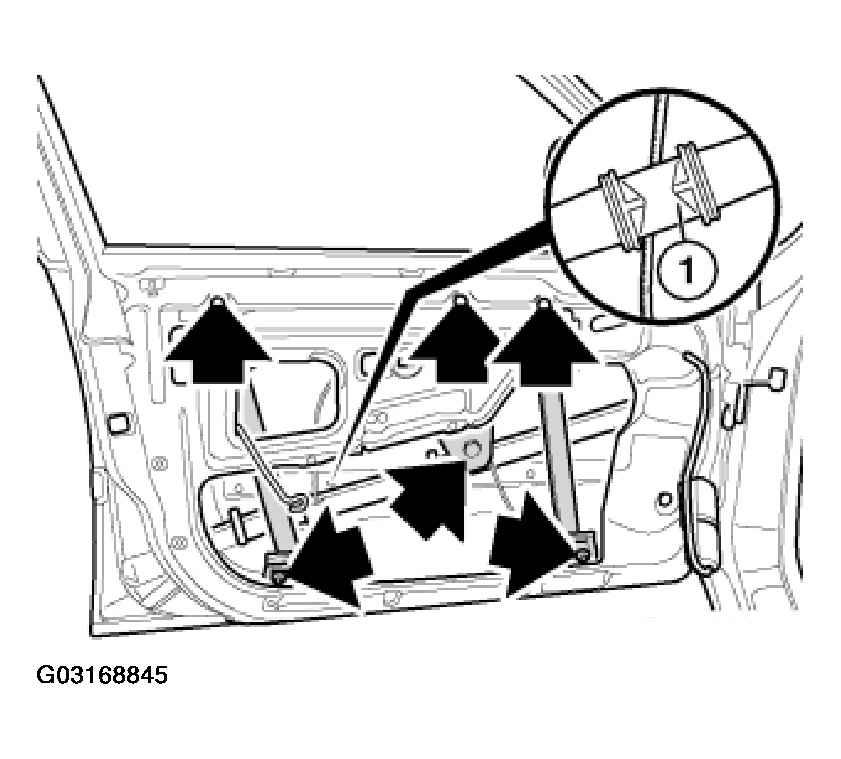

Remove connector from window regulator drive unit. Pull off guide (1).

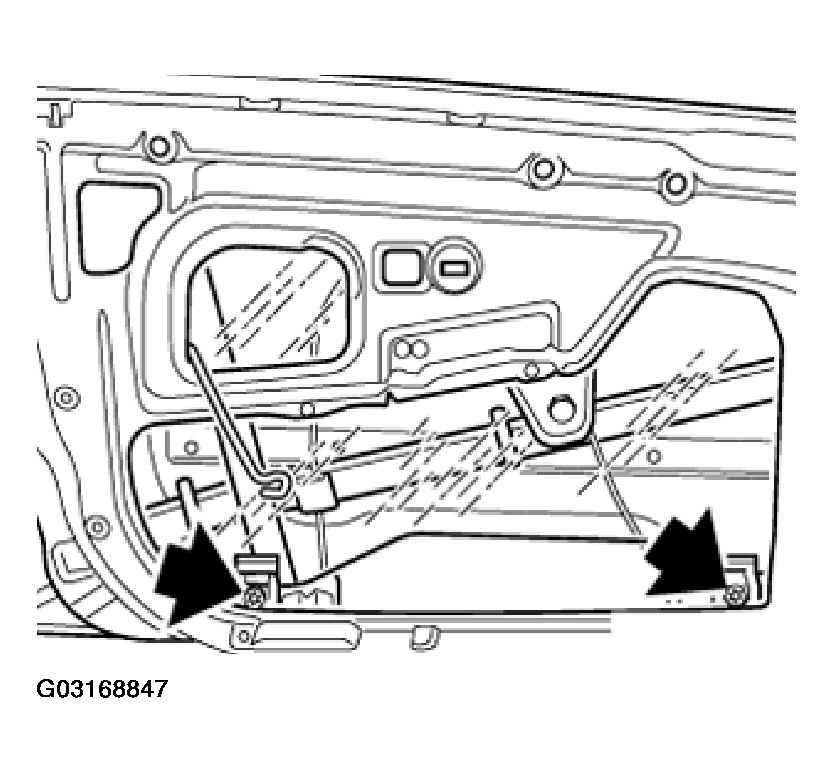

Unfasten screws (only loosen lower 3 screws) and remove complete cable on window regulator.
Installation:
Install window regulator in locating bracket and install all screws loose.

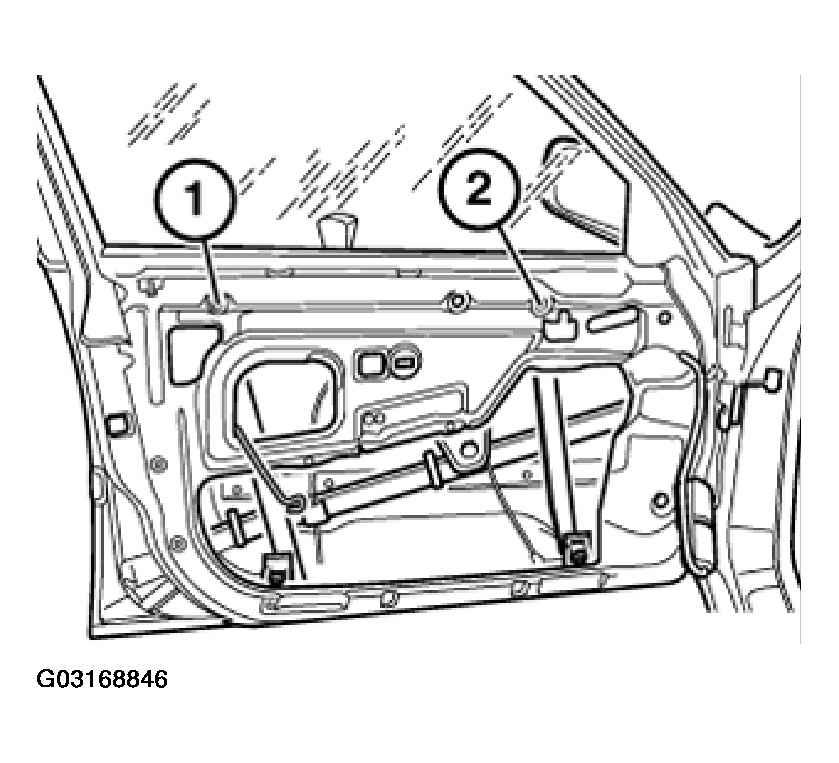

Tighten down screws (1) and (2).
Tightening torque, (8 N.m).
Installation:
Installing door window in clamps of window regulator and adjusting door window, refer to 51 32 154 ADJUSTING LEFT OR RIGHT FRONT DOOR WINDOW .
Installation:
Lower door window down to stop.

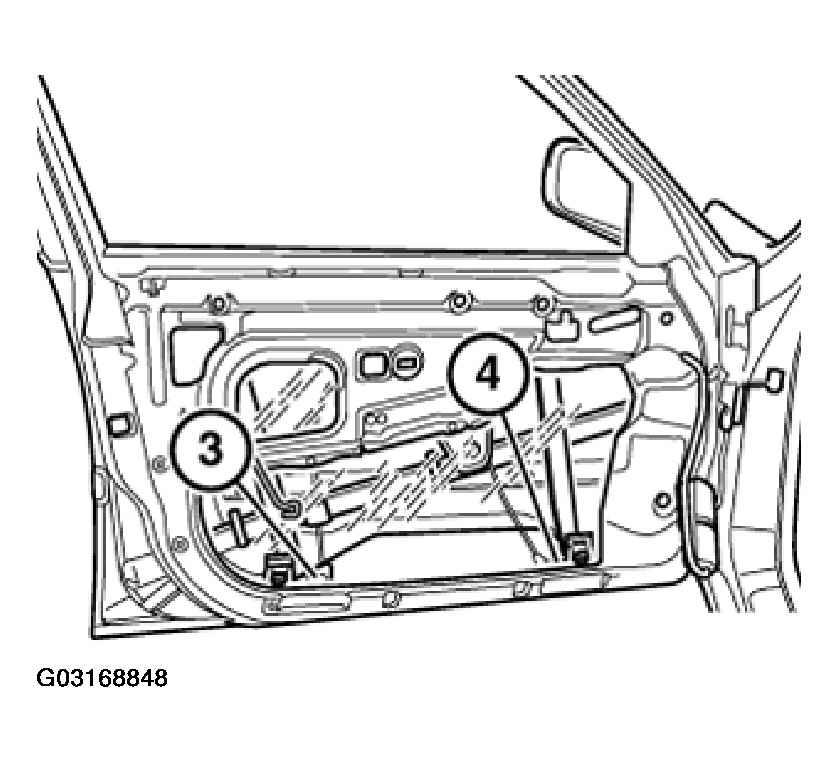

Tighten down screws (3) and (4).
Tightening torque, (8 N.m).
Installation:
Close door window firmly.

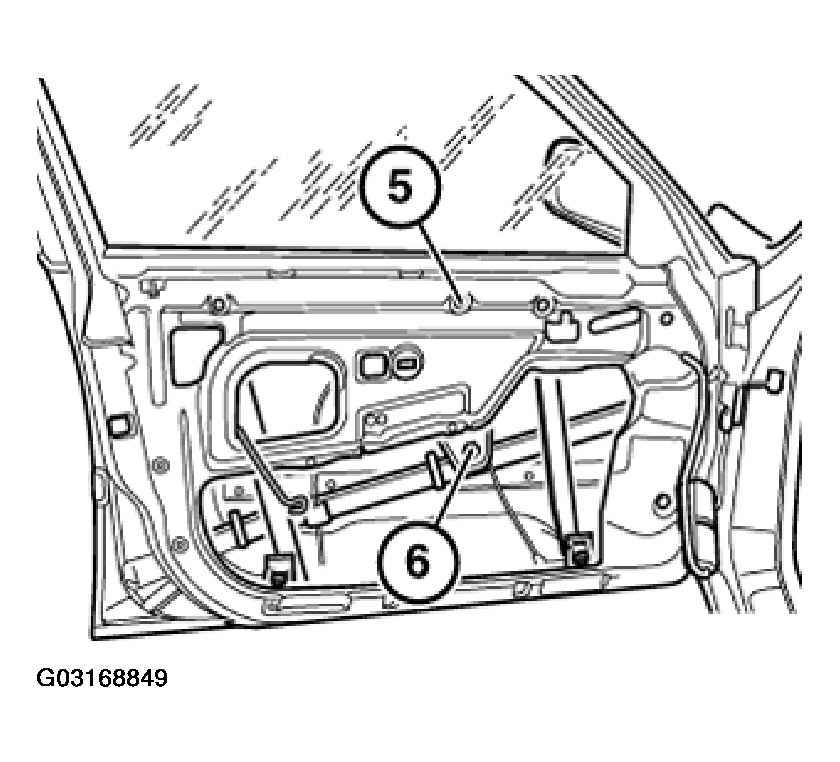

Tighten down screws (5) and (6). Tightening torque, (8 N.m).
